# ADC KENTROX
DATASMART MAX MODEL 72561
Card Type T1 CSU/DSU
Chipset Unidentified
T1 Transfer Rate 1.544Mbps
T1 Protocol AMI, B8ZS
Frame Type SF, ESF, Ericsson
Data Bus Serial
IMG IMG 1
+------------------------------------------------------------+

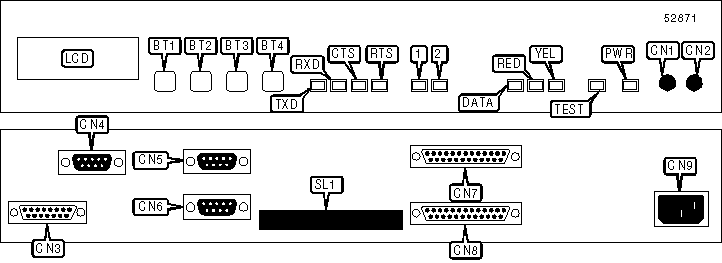

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| PREVIOUS button | BT1 | V.24 DCE serial | CN5 |
| | | control port | |
|-----------------------+-------+--------------------+-------|
| NEXT button | BT2 | V.24 DTE serial | CN6 |
| | | control port | |
|-----------------------+-------+--------------------+-------|
| ESCAPE button | BT3 | EIA-530 or V.35 | CN7 |
| | | serial data port 1 | |
|-----------------------+-------+--------------------+-------|
| SELECT button | BT4 | EIA-530 or V.35 | CN8 |
| | | serial data port 2 | |
|-----------------------+-------+--------------------+-------|
| Monitor receive port | CN1 | AC power in | CN9 |
|-----------------------+-------+--------------------+-------|
| Monitor transmit port | CN2 | LCD display | LCD |
|-----------------------+-------+--------------------+-------|
| T1 line out (Network | CN3 | PCMCIA slot | SL1 |
| interface) | | | |
|-----------------------+-------+--------------------+-------|
| RS-422 auxiliary | CN4 | | |
| clock port | | | |
|------------------------------------------------------------|
| Note:Standard V.35 serial ports are available on |
| included adapter cables. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------+--------+------------------------------------|
| TXD | Yellow | On | DSU is receiving data from data |
| | | | port indicated by LED1-2 |
|-----+--------+--------+------------------------------------|
| TXD | Yellow | Off | DSU is not receiving data from |
| | | | data port indicated by LED1-2 |
|-----+--------+--------+------------------------------------|
| RXD | Yellow | On | DSU is transmitting data to data |
| | | | port indicated by LED1-2 |
|-----+--------+--------+------------------------------------|
| RXD | Yellow | Off | DSU is not transmitting data to |
| | | | data port indicated by LED1-2 |
|-----+--------+--------+------------------------------------|
| CTS | Yellow | On | Data port indicated by LED1-2 CTS |
| | | | is high |
|-----+--------+--------+------------------------------------|
| CTS | Yellow | Off | Data port indicated by LED1-2 CTS |
| | | | is low |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) (CON’T) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------------+----------+----------------------------|
| RTS | Yellow | On | Data port indicated by |
| | | | LED1-2 RTS is high |
|------+-------------+----------+----------------------------|
| RTS | Yellow | Off | Data port indicated by |
| | | | LED1-2 RTS is low |
|------+-------------+----------+----------------------------|
| 1 | Yellow | On | TXD, RXD, CTS, and RTS |
| | | | LEDs indicate status of |
| | | | data port 1 |
|------+-------------+----------+----------------------------|
| 1 | Yellow | Blinking | Loss of Signal detected on |
| | | | data port 1 |
|------+-------------+----------+----------------------------|
| 1 | Yellow | Off | TXD, RXD, CTS, and RTS |
| | | | LEDs do not indicate |
| | | | status of data port 1 |
|------+-------------+----------+----------------------------|
| 2 | Yellow | On | TXD, RXD, CTS, and RTS |
| | | | LEDs indicate status of |
| | | | data port 2 |
|------+-------------+----------+----------------------------|
| 2 | Yellow | Blinking | Loss of Signal detected on |
| | | | data port 2 |
|------+-------------+----------+----------------------------|
| 2 | Yellow | Off | TXD, RXD, CTS, and RTS |
| | | | LEDs do not indicate |
| | | | status of data port 2 |
|------+-------------+----------+----------------------------|
| DATA | Green | On | Valid data signal detected |
| | | | on T1 network interface |
|------+-------------+----------+----------------------------|
| DATA | Green | Off | No valid signal detected |
| | | | on T1 network interface |
|------+-------------+----------+----------------------------|
| RED | Red | On | Loss Of Signal condition |
| | | | detected on T1 network |
| | | | interface |
|------+-------------+----------+----------------------------|
| RED | Red | Slow | Alarm Indication Signal |
| | | blink | condition detected on T1 |
| | | | network interface |
|------+-------------+----------+----------------------------|
| RED | Red | Fast | T1 network interface |
| | | blink | signal is out of frame |
| | | | synchronization |
|------+-------------+----------+----------------------------|
| RED | Red | Off | No red alarm conditions |
| | | | detected on T1 network |
| | | | interface |
|------+-------------+----------+----------------------------|
| YEL | Yellow | On | Remote Loss Of Signal or |
| | | | out of frame |
| | | | synchronization condition |
| | | | detected on T1 network |
| | | | interface |
|------+-------------+----------+----------------------------|
| YEL | Yellow | Off | No remote Loss Of Signal |
| | | | or out of frame |
| | | | synchronization condition |
| | | | detected on T1 network |
| | | | interface |
|------+-------------+----------+----------------------------|
| TEST | Yellow | On | Local loopback test in |
| | | | progress |
|------+-------------+----------+----------------------------|
| TEST | Yellow | Blinking | Test code, remote |
| | | | loopback, or Bit Error |
| | | | Rate Test in progress |
|------+-------------+----------+----------------------------|
| TEST | Yellow | Off | No tests are in progress |
|------+-------------+----------+----------------------------|
| PWR | Green | On | Power is on |
|------+-------------+----------+----------------------------|
| PWR | Red | On | Self-test failed |
|------+-------------+----------+----------------------------|
| PWR | Green | Blinking | User is logged in |
|------+-------------+----------+----------------------------|
| PWR | Alternating | Blinking | Downloading software |
| | green/red | | |
|------+-------------+----------+----------------------------|
| PWR | N/A | Off | Power is off |
+------------------------------------------------------------+
