# BANKSIA TECHNOLOGY PTY, LTD.
PRO 34
Card Type Fax, Modem (synchronous/asynchronous)
Chip Set Unidentified
Maximum Data Rate 28.8Kbps
Maximum Fax Rate 14.4Kbps
Data Bus External
Fax Class Class I & II
Data Modulation Bell 103/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34
Fax Modulation ITU-T V.17, V.27ter, V.29
Protocol
Error MNP5, MNP10, V.42, V.42bis
Correction/Compression

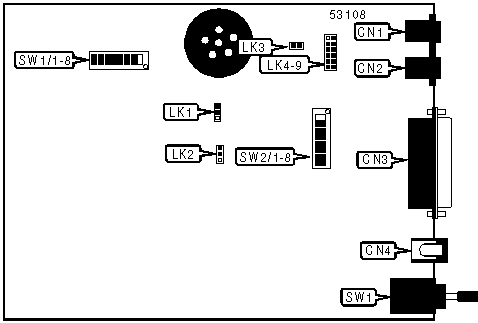

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Auxiliary port | CN1 | DC power | CN4 |
|----------------------------+---------+--------------+------|
| Line out | CN2 | Power switch | SW1 |
|----------------------------+---------+--------------+------|
| RS-232/422 | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-------------------------------------+-------+--------------|
| í DTR signal ignored | SW1/1 | On |
|-------------------------------------+-------+--------------|
| DTR signal normal | SW1/1 | Off |
|-------------------------------------+-------+--------------|
| í DCD and DSR forced high | SW1/2 | On |
|-------------------------------------+-------+--------------|
| DCD and DSR normal | SW1/2 | Off |
|-------------------------------------+-------+--------------|
| í Echo disabled | SW1/3 | On |
|-------------------------------------+-------+--------------|
| Echo enabled | SW1/3 | Off |
|-------------------------------------+-------+--------------|
| í Result codes disabled | SW1/4 | On |
|-------------------------------------+-------+--------------|
| Result codes enabled | SW1/4 | Off |
|-------------------------------------+-------+--------------|
| í Leased-line operation | SW1/5 | On |
|-------------------------------------+-------+--------------|
| Switched line operation | SW1/5 | Off |
|-------------------------------------+-------+--------------|
| í Auto-answer enabled on 2nd ring | SW1/6 | On |
|-------------------------------------+-------+--------------|
| Auto-answer disabled on 2nd ring | SW1/6 | Off |
|-------------------------------------+-------+--------------|
| í Synchronous mode 2 enabled | SW1/7 | On |
|-------------------------------------+-------+--------------|
| Synchronous mode 2 disabled | SW1/7 | Off |
|-------------------------------------+-------+--------------|
| í Dumb mode | SW1/8 | On |
|-------------------------------------+-------+--------------|
| Smart mode | SW1/8 | Off |
|-------------------------------------+-------+--------------|
| í Flow control to XON/XOFF enabled | SW2/1 | On |
|-------------------------------------+-------+--------------|
| Flow control to XON/XOFF disabled | SW2/1 | Off |
|-------------------------------------+-------+--------------|
| í V.25bis command set synchronous | SW2/2 | On |
| HDLC (NRZI) enabled | | |
|-------------------------------------+-------+--------------|
| V.25bis command set synchronous | SW2/2 | Off |
| HDLC (NRZI) disabled | | |
|-------------------------------------+-------+--------------|
| í Factory configured - DO NOT ALTER | SW2/5 | Unidentified |
|-------------------------------------+-------+--------------|
| í Factory configured - DO NOT ALTER | SW2/6 | Unidentified |
|-------------------------------------+-------+--------------|
| í Factory configured - DO NOT ALTER | SW2/7 | Unidentified |
|-------------------------------------+-------+--------------|
| í Factory defaults loaded up on | SW2/8 | On |
| power-up | | |
|-------------------------------------+-------+--------------|
| Do not force factory defaults on | SW2/8 | Off |
| power-up | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUXILIARY PORT |
|------------------------------------------------------------|
| Setting | LK1 | LK2 | LK3 | LK4 |
|-------------+-----------------+------------+------+--------|
| í PSTN | Pins 2 & 3 | Pins 1 & 2 | Open | Closed |
| | closed | closed | | |
|-------------+-----------------+------------+------+--------|
| Leased-line | Pins 1 & 2 | Pins 2 & 3 | Open | Open |
| | closed | closed | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUXILIARY PORT - CONTINUED |
|------------------------------------------------------------|
| Setting | LK5 | LK6 | LK7 | LK8 | LK9 |
|-------------+---------+---------+--------+--------+--------|
| í PSTN | Closed | Closed | Open | Closed | Open |
|-------------+---------+---------+--------+--------+--------|
| Leased-line | Closed | Open | Closed | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MODULATION SELECTION |
|------------------------------------------------------------|
| Setting | SW2/3 | SW2/4 |
|------------------------+-----------------+-----------------|
| factory/stored setting | Off | Off |
|------------------------+-----------------+-----------------|
| 28800 carrier | Off | On |
|------------------------+-----------------+-----------------|
| 14400 carrier | On | Off |
|------------------------+-----------------+-----------------|
| 2400 carrier | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, ‘Comma’ |
|------------------------------------------------------------|
| A, B, E, H, L, M, N, O, P, Q, S, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &G, &L, &R, &S, &V, &W, &X, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \B, \G, \J, \V, \Y, \Z |
|------------------------------------------------------------|
| Special Commands |
|------------------------------------------------------------|
| *H, )M |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S25, S26, S36, S37, S38 |
|------------------------------------------------------------|
| Note: See MHI Help file for full command documentation. |
+------------------------------------------------------------+
Proprietary AT Command Set
For a full command summary, see BANKSIA TECHNOLOGY PTY, LTD., PRO
