# BEST DATA PRODUCTS, INC.
SMART ONE 336VLX, SMART ONE 336VLXMAC, SMART ONE 336LXSP,
SMART ONE 336LXSPMAC
Card Type Modem (asynchronous)
Chipset Unidentified
I/O Options Voice, speakerphone (Smart One 336LXSP
and 336LXSPMAC only), microphone in,
line in, speaker out
Maximum Data Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Bus Serial
Fax Class Class I & II
Data Modulation Bell 103A/212A
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34
Rockwell V.FC
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Error MNP5, MNP10EC, V.42, V.42bis
Correction/Compression

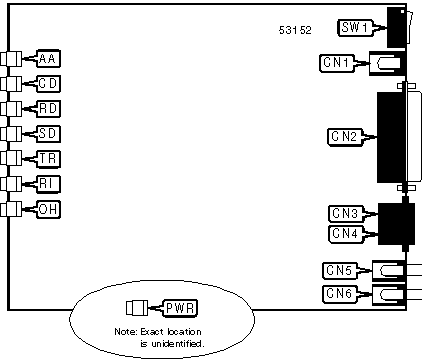

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| DC power in | CN1 | Speaker out | CN5 |
|---------------------+-------+----------------------+-------|
| RS-232/422 port | CN2 | Music-on-hold and | CN6 |
| | | microphone line in | |
|---------------------+-------+----------------------+-------|
| Telephone line in | CN3 | Power switch | SW1 |
|---------------------+-------+----------------------+-------|
| Telephone line out | CN4 | | |
|------------------------------------------------------------|
| Note: Separate music-on-hold and microphone in jacks |
| are provided on an included adapter. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+--------+------------------------------|
| PWR | Unidentified | On | Power is on |
|-----+--------------+--------+------------------------------|
| PWR | Unidentified | Off | Power is off |
|-----+--------------+--------+------------------------------|
| AA | Unidentified | On | Auto-answer enabled |
|-----+--------------+--------+------------------------------|
| AA | Unidentified | Off | Auto-answer disabled |
|-----+--------------+--------+------------------------------|
| CD | Unidentified | On | Carrier signal detected |
|-----+--------------+--------+------------------------------|
| CD | Unidentified | Off | Carrier signal not detected |
|-----+--------------+--------+------------------------------|
| RD | Unidentified | On | Modem is receiving data |
|-----+--------------+--------+------------------------------|
| RD | Unidentified | Off | Modem is not receiving data |
|-----+--------------+--------+------------------------------|
| SD | Unidentified | On | Modem is transmitting data |
|-----+--------------+--------+------------------------------|
| SD | Unidentified | Off | Modem is not transmitting |
| | | | data |
|-----+--------------+--------+------------------------------|
| TR | Unidentified | On | DTR signal is high |
|-----+--------------+--------+------------------------------|
| TR | Unidentified | Off | DTR signal is low |
|-----+--------------+--------+------------------------------|
| RI | Unidentified | On | Phone is ringing |
|-----+--------------+--------+------------------------------|
| RI | Unidentified | Off | Phone is not ringing |
|-----+--------------+--------+------------------------------|
| OH | Unidentified | On | Modem is off-hook |
|-----+--------------+--------+------------------------------|
| OH | Unidentified | Off | Modem is on-hook |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| +++, ‘comma’, A/ |
|------------------------------------------------------------|
| A, B, D, E, H, L, M, N, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &K, &Q, &R, &S, &T, &V, &W, &X, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \G, \K, \N |
|------------------------------------------------------------|
| %C, %E, %L, %Q |
|------------------------------------------------------------|
| Special AT Commands |
|------------------------------------------------------------|
| #CID, :E, *H, -K, -Q, @M, +MS |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S21, S22, S23, S24, S25, S26 |
|------------------------------------------------------------|
| S28, S29, S30, S31, S32, S33, S36, S38, S39, S40, S41, |
| S46, S48, S82, S86, S91, S92, S95 |
|------------------------------------------------------------|
| Note: See MHI documentation for complete information. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| UNIDENTIFIED COMMANDS |
|------------------------------------------------------------|
| Command | Default |
|----------------------------+-------------------------------|
| S37 | 0 |
|----------------------------+-------------------------------|
| S201 | Unidentified |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| DISPLAY INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested about the |
| | modem. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Displays product identification code. |
|--------------+---------------------------------------------|
| I1 | Displays ROM checksum. |
|--------------+---------------------------------------------|
| I2 | Tests and reports ROM checksum. |
|--------------+---------------------------------------------|
| I3 | Displays firmware model, revision, and |
| | interface. |
|--------------+---------------------------------------------|
| I4 | Displays modem model number. |
|--------------+---------------------------------------------|
| I5 | Displays country code. |
|--------------+---------------------------------------------|
| I6 | Displays data pump model and revision. |
|--------------+---------------------------------------------|
| I7 | Displays the DAA code. |
+------------------------------------------------------------+
See BEST DATA PRODUCTS, INC. SMART ONE 2834F for a full command
summary.
