# BEST DATA PRODUCTS, INC.
SMART ONE 56X
Card Type Modem (asynchronous)
Chipset Unidentified
Maximum Data Rate 56Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A, 212A
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34
Rockwell K56flex
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Error MNP5, MNP10EC, V.42, V.42bis
Correction/Compression
Fax Class Class I
Data Bus Serial
IMG IMG 1
+------------------------------------------------------------+

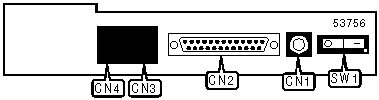

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| AC power in | CN1 | Telephone line out | CN4 |
|---------------------+-------+----------------------+-------|
| Serial port | CN2 | Power switch | SW1 |
|---------------------+-------+----------------------+-------|
| Telephone line in | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+--------+------------------------------|
| AA | Unidentified | On | Auto-answer enabled |
|-----+--------------+--------+------------------------------|
| AA | Unidentified | Off | Auto-answer disabled |
|-----+--------------+--------+------------------------------|
| CD | Unidentified | On | Carrier signal detected |
|-----+--------------+--------+------------------------------|
| CD | Unidentified | Off | Carrier signal not detected |
|-----+--------------+--------+------------------------------|
| RD | Unidentified | On | Modem is receiving data |
|-----+--------------+--------+------------------------------|
| RD | Unidentified | Off | Modem is not receiving data |
|-----+--------------+--------+------------------------------|
| SD | Unidentified | On | Modem is transmitting data |
|-----+--------------+--------+------------------------------|
| SD | Unidentified | Off | Modem is not transmitting |
| | | | data |
|-----+--------------+--------+------------------------------|
| TR | Unidentified | On | DTR signal is high |
|-----+--------------+--------+------------------------------|
| TR | Unidentified | Off | DTR signal is low |
|-----+--------------+--------+------------------------------|
| RI | Unidentified | On | Phone is ringing |
|-----+--------------+--------+------------------------------|
| RI | Unidentified | Off | Phone is not ringing |
|-----+--------------+--------+------------------------------|
| OH | Unidentified | On | Modem is off-hook |
|-----+--------------+--------+------------------------------|
| OH | Unidentified | Off | Modem is on-hook |
|-----+--------------+--------+------------------------------|
| * | Unidentified | On | Power is on |
|-----+--------------+--------+------------------------------|
| * | Unidentified | Off | Power is off |
+------------------------------------------------------------+
+----------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|----------------------------------------------|
| A front panel diagram is not available. |
+----------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| +++, ‘comma’, A/ |
|------------------------------------------------------------|
| A, B, D, E, H, L, M, N, O, Q, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &K, &P, &Q, &R, &S, &T, &V, &W, &X, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \K, \N, \V |
|------------------------------------------------------------|
| %C, %E, %L, %Q |
|------------------------------------------------------------|
| Special AT Commands |
|------------------------------------------------------------|
| #CID, :E, -K, @M |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S22, S24, S25, S26, S27 |
|------------------------------------------------------------|
| S29, S30, S31, S32, S33, S36, S38, S46, S48, S82, S86, |
| S91, S92, S95 |
|------------------------------------------------------------|
| Note: See MHI help file for complete information. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| UNIDENTIFIED COMMANDS |
|------------------------------------------------------------|
| Command | Default |
|------------------------------+-----------------------------|
| S21 | 52 |
|------------------------------+-----------------------------|
| S23 | 62 |
|------------------------------+-----------------------------|
| S28 | 0 |
|------------------------------+-----------------------------|
| S37 | 0 |
|------------------------------+-----------------------------|
| S40 | 104 |
|------------------------------+-----------------------------|
| S41 | 195 |
+------------------------------------------------------------+
Proprietary AT Command Set
See BEST DATA PRODUCTS, INC. SMART ONE 56SP for a full command
summary.
