# ARCHTEK CORPORATION
3334BR
Card Type Modem/Fax card
Chip Set Unidentified
I/O Options Line out, phone in
Maximum Modem Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34, V.34bis,
Rockwell V.FC
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP10,MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I & II
Data Bus 8-bit ISA
Card Size Half-length

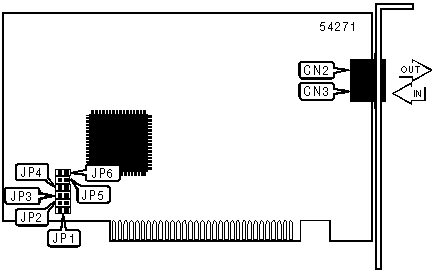

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line out | CN2 | Phone in | CN3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS |
|------------------------------------------------------------|
| Setting | IRQ | JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
|-----------+------+------+------+------+------+------+------|
|COM1 (3F8h)| IRQ4 |Closed|Closed| Open | Open |Closed| Open |
|-----------+------+------+------+------+------+------+------|
|COM2 (2F8h)| IRQ3 | Open |Closed| Open |Closed| Open | Open |
|-----------+------+------+------+------+------+------+------|
|COM3 (3E8h)| IRQ4 |Closed| Open | Open | Open |Closed| Open |
|-----------+------+------+------+------+------+------+------|
|COM3 (3E8h)| IRQ5 |Closed| Open | Open | Open | Open |Closed|
|-----------+------+------+------+------+------+------+------|
|COM4 (2E8h)| IRQ3 | Open | Open | Open |Closed| Open | Open |
|-----------+------+------+------+------+------+------+------|
|COM4 (2E8h)| IRQ2 | Open | Open |Closed| Open | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, ‘+++’, ‘comma’, A/ |
|------------------------------------------------------------|
| A, B, C, E, H, M, O, P, Q, R, S, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &G, &L, &M, &P, &Q, &R, &V, &W, &X, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \G, \K |
|------------------------------------------------------------|
| %C, %E |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S18, S25, S26, S30, S32, S33 |
|------------------------------------------------------------|
| S36, S38, S91, S92, S95 |
|------------------------------------------------------------|
| Special Commands |
|------------------------------------------------------------|
| *H, -K, -Q, )M, :E |
|------------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+------------------------------------------------------------+
PROPRIETARY AT COMMAND SET
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
|--------------+---------------------------------------------|
| Note: | Any combination of modifiers can be used to |
| | produce the desired dial functions in |
| | sequence. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| DP | Pulse dialing enabled |
|--------------+---------------------------------------------|
| DR | Answer mode enabled; originate mode |
| | disabled following handshake initiation. |
|--------------+---------------------------------------------|
| DS=n | Dial stored telephone number n |
|--------------+---------------------------------------------|
| DT | Tone dialing enabled/Pulse dialing disabled |
|--------------+---------------------------------------------|
| DW | Dialing resumed following dial tone |
| | detection |
|--------------+---------------------------------------------|
| D! | Flash function initiated. Modem commanded |
| | to go off-hook for specified time before |
| | returning on-hook. |
|--------------+---------------------------------------------|
| D@ | Wait for Quite Answer function enabled. |
| | Modem waits until a "quiet answer," a |
| | ring-back signal followed by silence up to |
| | the time specified in S7, is received prior |
| | to executing the rest of the dial string. |
|--------------+---------------------------------------------|
| D; | Modem returned to idle state after dialing. |
| | The semicolon can only be placed at the end |
| | of the dial command. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SPEAKER VOLUME |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| L0 | Low volume setting |
|--------------+---------------------------------------------|
| L1 | Low volume setting |
|--------------+---------------------------------------------|
| í L2 | Medium volume setting |
|--------------+---------------------------------------------|
| L3 | Highest volume setting |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-MODE DETECTION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects various options for the automatic |
| | detection and negotiation of protocols |
| | during the handshake process if the modem |
| | is communicating with a remote modem of |
| | dissimilar speed. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| N0 | In originate mode, handshake only at line |
| | speed designated by the S37 register. |
|--------------+---------------------------------------------|
| N1 | In originate mode, handshake begins at line |
| | speed designated by the S37 register. Modem |
| | can shift to a slower speed if necessary. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY DEFAULT PROFILE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &F [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets values in active profile to values |
| | found in the default profile |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &F0 | Sets values to factory configuration 0 |
|--------------+---------------------------------------------|
| &F1 | Sets values to factory configuration 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables flow control options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &K0 | Flow control disabled |
|--------------+---------------------------------------------|
| &K1 | Reserved |
|--------------+---------------------------------------------|
| &K2 | Reserved |
|--------------+---------------------------------------------|
| &K3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| &K4 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K5 | Transparent XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K6 | Hardware and software flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA SET READY (DSR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DSR options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &S0 | DSR forced high |
|--------------+---------------------------------------------|
| &S1 | DSR high only while modem is handshaking |
+------------------------------------------------------------+
S(STATUS) -REGISTERS
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S14 |
|------------------------------------------------------------|
| Format: | AT [cmds] S14=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-174 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls echo, loopback tests, analog, |
| | digital, remote digital, and self tests. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | Not used |
|------+-------+---------------------------------------------|
| 1 | 0 | Command echo disabled |
| | | |
| | 1 | Command echo enabled |
|------+-------+---------------------------------------------|
| 3 | 0 | Modem not in remote digital loopback |
| | | |
| | 1 | Remote digital loopback in process |
|------+-------+---------------------------------------------|
| 3 | 0 | Remote digital loopback not requested |
| | | |
| | 1 | Remote digital loopback requested |
|------+-------+---------------------------------------------|
| 5 | 0 | Remote digital loopback with self test |
| | | disabled |
| | 1 | |
| | | R Remote digital loopback with self test |
| | | enabled |
|------+-------+---------------------------------------------|
| 6 | 0 | Local analog loopback with self test |
| | | disabled |
| | 1 | |
| | | Local analog loopback with self test |
| | | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S19 |
|------------------------------------------------------------|
| Format: | AT [cmds] S19=n [cmds] |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Defines options for AutoSync operation. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | Not used |
|------+-------+---------------------------------------------|
| 1 | 0 | BSC format enabled |
| | | |
| | 1 | HDLC format enabled |
|------+-------+---------------------------------------------|
| 2 | 0 | Address detection disabled |
| | | |
| | 1 | Address detection disabled |
|------+-------+---------------------------------------------|
| 3 | 0 | NRZI coding enabled |
| | | |
| | 1 | NZI coding enabled |
|------+-------+---------------------------------------------|
| 4 | 0 | Mark idle enabled |
| | | |
| | 1 | Flag or sync idle enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| HDLC ADDRESS OR BSC SYNC |
|------------------------------------------------------------|
| Format | AT [cmds] S20=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Defines the HDLC address or BSC Sync |
| | character for AutoSync operation. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S21 |
|------------------------------------------------------------|
| Format: | AT [cmds] S21=n [cmds] |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Indicates the status of command options |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | Set by &J but otherwise not used |
|------+-------+---------------------------------------------|
| 1 | 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | 0 | CTS tracks RTS (&R0) |
| | | |
| | 1 | CTS always on (&R1) |
|------+-------+---------------------------------------------|
| 3-4 | 0 | DTR (&D0) |
| | | |
| | 1 | DTR (&D1) |
| | | |
| | 2 | DTR (&D2) |
| | | |
| | 3 | DTR (&D3) |
|------+-------+---------------------------------------------|
| 5 | 0 | RSDL(&C0) |
| | | |
| | 1 | RSDL(&C1) |
|------+-------+---------------------------------------------|
| 6 | 0 | DSR(&S0) |
| | | |
| | 1 | DSR(&S1) |
|------+-------+---------------------------------------------|
| 7 | 0 | Long space disconnect(&Y0) |
| | | |
| | 1 | Long space disconnect(&Y1) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S22 |
|------------------------------------------------------------|
| Format | AT [cmds] S22=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume and controls, |
| | limits results codes, and pulse dial |
| | make/break ratio. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 1, 0 | 00 | Off volume |
| | | |
| | 01 | Low level volume |
| | | |
| | 10 | Medium level volume |
| | | |
| | 11 | High level volume |
|------+-------+---------------------------------------------|
| 3, 2 | 00 | Speaker off |
| | | |
| | 01 | Speaker off on carrier |
| | | |
| | 10 | Speaker on medium |
| | | |
| | 11 | Speaker on high |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DCE LINE SPEED |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S37=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum allowable data exchange |
| | rate attempted during handshake process. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S37=0 | Speed of last connection |
|--------------+---------------------------------------------|
| S37=1 | 300bps |
|--------------+---------------------------------------------|
| S37=2 | 300bps |
|--------------+---------------------------------------------|
| S37=3 | 300bps |
|--------------+---------------------------------------------|
| S37=5 | 1200bps |
|--------------+---------------------------------------------|
| S37=6 | 2400bps |
|--------------+---------------------------------------------|
| S37=7 | V.23 |
|--------------+---------------------------------------------|
| S37=8 | 4800bps |
|--------------+---------------------------------------------|
| S37=9 | 9600bps |
|--------------+---------------------------------------------|
| S37=10 | 12.0Kbps |
|--------------+---------------------------------------------|
| S37=11 | 14.4Kbps |
|--------------+---------------------------------------------|
| S37=12 | 7200bps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S39? [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays the current flow control |
|--------------+---------------------------------------------|
| Value | Meaning |
|--------------+---------------------------------------------|
| 0 | Flow control disabled |
|--------------+---------------------------------------------|
| 3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| 4 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| 5 | Transparent XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| 6 | XON/XOFF and RTS/CTS flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S40 |
|------------------------------------------------------------|
| Format: | AT [cmds] S40=n [cmds] |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | General option status |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0-1 | 0 | Disable extended services (-K0) |
| | | |
| | 1 | Enable extended services (-K1) |
| | | |
| | 2 | Enable extended services (-K2) |
|------+-------+---------------------------------------------|
| 1 | 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | 0 | CTS tracks RTS (&R0) |
| | | |
| | 1 | CTS always on (&R1) |
|------+-------+---------------------------------------------|
| 3-4 | 0 | DTR (&D0) |
| | | |
| | 1 | DTR (&D1) |
| | | |
| | 2 | DTR (&D2) |
| | | |
| | 3 | DTR (&D3) |
|------+-------+---------------------------------------------|
| 5 | 0 | RSDL(&C0) |
| | | |
| | 1 | RSDL(&C1) |
|------+-------+---------------------------------------------|
| 6 | 0 | DSR(&S0) |
| | | |
| | 1 | DSR(&S1) |
|------+-------+---------------------------------------------|
| 7 | 0 | Long space disconnect(&Y0) |
| | | |
| | 1 | Long space disconnect(&Y1) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S41 |
|------------------------------------------------------------|
| Format | AT [cmds] S41=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-31 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects compression, auto-retrain, flow |
| | control, and MNP mode. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 1 - | 00 | Data compression disabled |
| 0 | | |
| | 01 | MNP5 enabled |
| | | |
| | 10 | V.42bis enabled |
| | | |
| | í 11 | MNP5 and V.42bis enabled |
|------+-------+---------------------------------------------|
| 2,6 | í 0 | Auto-retrain disabled |
| | | |
| | 1 | Auto-retrain enabled |
| | | |
| | 10 | Fallback/fall forward enabled |
|------+-------+---------------------------------------------|
| 4 | í 0 | Stream mode for MNP |
| | | |
| | 1 | Block mode for MNP |
|------+-------+---------------------------------------------|
| 7 | 0 | Fallback to V.22bis/V22 disabled |
| | | |
| | í 1 | Fallback to V.22bis/V22 enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ERROR CORRECTION/COMPRESSION |
|------------------------------------------------------------|
| Type: | Register |
|------------------------------------------------------------|
| Format: | AT [cmds] S46=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects active error correction and |
| | compression protocols |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| S46=136 | LAP-M only, no compression |
|---------------+--------------------------------------------|
| S46=138 | LAP-M with V.42bis data compression |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FEATURE NEGOTIATION OPTIONS |
|------------------------------------------------------------|
| Type: | Register |
|------------------------------------------------------------|
| Format: | AT [cmds] S48=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects active error correction and |
| | compression protocols |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| S48=0 | Detection negotiation disabled, XID |
| | negotiation disabled |
|---------------+--------------------------------------------|
| S48=7 | Detection negotiation and XID negotiation |
| | enabled |
|---------------+--------------------------------------------|
| S48=128 | Fall-back to options set in S36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECTION FAILURE CODES |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S86? [cmds] |
|--------------+---------------------------------------------|
| Description: | Reports codes which correspond to the |
| | possible causes of a connection failure |
|--------------+---------------------------------------------|
| Value | Meaning |
|--------------+---------------------------------------------|
| 0 | Normal hang up |
|--------------+---------------------------------------------|
| 4 | Carrier signal lost |
|--------------+---------------------------------------------|
| 5 | No error-control detected for remote modem |
| | during feature negotiation |
|--------------+---------------------------------------------|
| 9 | No common protocol found |
|--------------+---------------------------------------------|
| 12 | No failure - remote modem disconnected |
| | normally |
|--------------+---------------------------------------------|
| 13 | Remote modem failed to respond after 10 |
| | re-transmissions same message |
|--------------+---------------------------------------------|
| 14 | Violation of negotiated protocol caused |
| | failure |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMISSION LEVEL - CELLULAR |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S201=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the signal level for transmission |
|--------------+---------------------------------------------|
| Bit | Function |
|--------------+---------------------------------------------|
| 0-4 | Initial cellular power setting @Mn |
|--------------+---------------------------------------------|
| 5 | Compromise equalizer enable command |
+------------------------------------------------------------+
