# ACER, INC.
MAGIC MP32
Card Type Modem, Fax, Sound card
Chip Set Unidentified
I/O Options CD-ROM interface, microphone, audio
line in, audio line out, wavetable
interface
Maximum Modem Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103/212A
Protocol
ITU-T V.22, V.22bis, V.23, V.32,
V.32bis, V.34, V.34bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29,
Protocol V.33
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I & II
Data Bus 16-bit ISA
Card Size Full-length, full-height card

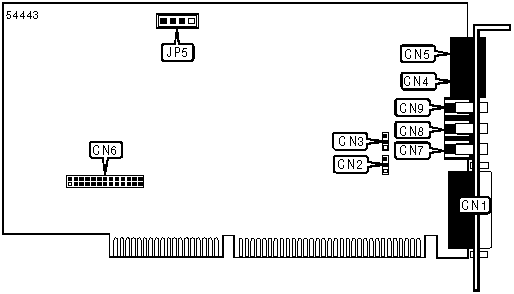

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| MIDI/Game port | CN1 | Wave table | CN6 |
| | | interface | |
|----------------------+---------+---------------------+-----|
| Telephone line in | CN4 | Speaker/Line out | CN7 |
|----------------------+---------+---------------------+-----|
| Telephone line out | CN5 | Line in | CN8 |
|----------------------+---------+---------------------+-----|
| Microphone in | CN9 | CD-Audio | JP5 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SPEAKER/LINE OUT SETTINGS |
|------------------------------------------------------------|
| Function | CN2 | CN3 |
|----------------------------+---------------+---------------|
| Speaker mode enabled (CN7) | Pins 1 & 2 | Pins 1 & 2 |
| | closed | closed |
|----------------------------+---------------+---------------|
| Line out function enabled | Pins 2 & 3 | Pins 2 & 3 |
| | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, A/ |
|------------------------------------------------------------|
| A, B, C, D, E, H, M, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &F, &P, &Q, &R, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \K, \N, \V, |
|------------------------------------------------------------|
| %C, %E, %L, %Q, %TT |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S21, S22, S23, S24, S25, |
|------------------------------------------------------------|
| S26, S27, S28, S29, S30, S31, S32, S33, S36, S37, S38, |
| S39, S40, S41, S46, S48, S82, S86, S91, |
|------------------------------------------------------------|
| S92, S95 |
|------------------------------------------------------------|
| Special Commands |
|------------------------------------------------------------|
| #CID, +MS, #BDR, #CLS, MDL?, #MFR?, #REV?, #TL, #VBQ?, |
| #VBS, #VBT, #VCI?, #VLS, #VRA, #VRN, |
|------------------------------------------------------------|
| #VRX, #VSD, #VSK, #VSP, #VSR, #VSS, #VTD, #VTM, #VTS, #VTX |
|------------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-MODE DETECTION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects various options for the automatic |
| | detection and negotiation of protocols |
| | during the handshake process if the modem |
| | is communicating with a remote modem of |
| | dissimilar speed. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| N0 | Auto-mode detection disabled |
|--------------+---------------------------------------------|
| N1 | Auto-mode detection enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CLOCK SOURCE - SYNCHRONOUS TRANSMIT |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Xn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DTE transmit clock source |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &X0 | Modem generates clock |
|--------------+---------------------------------------------|
| &X1 | Modem generates clock from the receive |
| | carrier signal |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMMUNICATIONS MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Mn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects communications mode |
|--------------+---------------------------------------------|
| Command | Mode |
|--------------+---------------------------------------------|
| &M0 | Asynchronous mode |
|--------------+---------------------------------------------|
| &M1 | Synchronous connect mode and asynchronous |
| | off-line command mode. |
|--------------+---------------------------------------------|
| &M2 | Synchronous connect mode and asynchronous |
| | off-line command mode and set DTR high. |
|--------------+---------------------------------------------|
| &M3 | Synchronous connect mode and asynchronous |
| | off-line command mode and set DTR to low. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA SET READY (DSR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DSR options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &S0 | DSR forced high |
|--------------+---------------------------------------------|
| &S1 | DSR high only while modem is handshaking or |
| | connected |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA TERMINAL READY (DTR) |
|------------------------------------------------------------|
| Type: | Configuration |
|---------------+--------------------------------------------|
| Format: | AT [cmds] &Dn [cmds] |
|---------------+--------------------------------------------|
| Description: | Selects modem response to DTR |
|------------------------------------------------------------|
| Note: The action each variant of &D causes depends on |
| the setting of &Q |
|------------------------------------------------------------|
| &Q Setting | &D0 | &D1 | &D2 | &D3 |
|------------------+---------+---------+---------+-----------|
| &Q0, &Q5, &Q6 | Command | Command | Command | Command 3 |
| | 0 | 1 | 2 | |
|------------------+---------+---------+---------+-----------|
| &Q1, &Q4 | Command | Command | Command | Command 3 |
| | 2 | 1 | 2 | |
|------------------+---------+---------+---------+-----------|
| &Q2, &Q3 | Command | Command | Command | Command 2 |
| | 2 | 2 | 2 | |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| Command 0 | Modem does not respond to DTR |
|---------------+--------------------------------------------|
| Command 1 | Modem goes to command mode after DTR goes |
| | is off |
|---------------+--------------------------------------------|
| Command 2 | Modem goes to command mode and disconnects |
| | (hangs up) after DTR goes off. |
|---------------+--------------------------------------------|
| Command 3 | Modem is initialized after DTR goes off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables flow control options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &K0 | Flow control disabled |
|--------------+---------------------------------------------|
| &K3 | RTS/CTS and DTE/DCE flow control enabled |
|--------------+---------------------------------------------|
| &K4 | XON/XOFF and DTE/DCE flow control enabled |
|--------------+---------------------------------------------|
| &K5 | Transparent XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K6 | RTS/CTS and XON/XOFF flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| GUARD TONE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Commands the modem to transmit a guard tone |
| | in V.22/V.22bis |
|------------------------------------------------------------|
| Note: Used primarily for international data |
| transmission |
|------------------------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &G0 | Guard tone disabled |
|--------------+---------------------------------------------|
| &G1 | Guard tone disabled |
|--------------+---------------------------------------------|
| &G2 | 1800Hz guard tone enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports modem model and speed |
|--------------+---------------------------------------------|
| I1 | Reports ROM checksum |
|--------------+---------------------------------------------|
| I2 | Reports OK |
|--------------+---------------------------------------------|
| I3 | Reports firmware revision, model and |
| | interface type |
|--------------+---------------------------------------------|
| I4 | Reports response programmed by OEM |
|--------------+---------------------------------------------|
| I5 | Reports the country code parameter |
|--------------+---------------------------------------------|
| I6 | Reports modem data pump model and code |
| | revision |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SPEAKER VOLUME |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| L0 | Low volume setting |
|--------------+---------------------------------------------|
| L1 | Low volume setting |
|--------------+---------------------------------------------|
| L2 | Medium volume setting |
|--------------+---------------------------------------------|
| L3 | Highest volume setting |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Tn |
|--------------+---------------------------------------------|
| Description: | Selects test options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &T0 | End current test |
|--------------+---------------------------------------------|
| &T1 | Begin local analog loopback test |
|--------------+---------------------------------------------|
| &T2 | Returns error result code |
|--------------+---------------------------------------------|
| &T3 | Begin local digital loopback |
|--------------+---------------------------------------------|
| &T4 | Grant remote digital loopback request |
|--------------+---------------------------------------------|
| &T5 | Deny remote digital loopback request |
|--------------+---------------------------------------------|
| &T6 | Request remote digital loopback |
|--------------+---------------------------------------------|
| &T7 | Request remote digital loopback and |
| | self-test |
|--------------+---------------------------------------------|
| &T8 | Begin local analog loopback and self-test |
+------------------------------------------------------------+
S(status) -REGISTERS
+------------------------------------------------------------+
| AUTOSYNC OPTIONS |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S19=n |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Description: | Enables selection of the autosync options |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTOSYNC OR BSC SYNC ENABLED |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S20=n |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Description: | Enables autosync HDLC address or BSC sync |
| | characters |
+------------------------------------------------------------+
