# ACER, INC.
MAGIC F34
Card Type Modem/Fax card
Chip Set Unidentified
Maximum Modem Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103/212A
Protocol
ITU-T V.22, V.22bis, V.23, V.32,
V.32bis, V.34
Fax Modulation ITU-T V.17, V.33, V.29, V.27ter,
Protocol V.21CH2
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I & II
Data Bus 16-bit ISA
Card Size Half length, full-height card

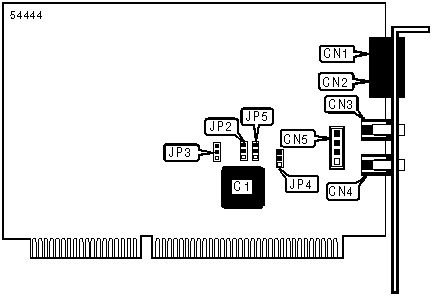

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Telephone line out | CN1 | Microphone | CN4 |
|---------------------+---------+----------------------+-----|
| Telephone line in | CN2 | Audio card connector | CN5 |
|---------------------+---------+----------------------+-----|
| Line out | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS |
|------------------------------------------------------------|
| Setting | JP2 | JP3 | JP4 | JP5 |
|---------------+---------+---------------+---------+--------|
| COM1 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 |
|---------------+---------+---------------+---------+--------|
| COM2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 |
|---------------+---------+---------------+---------+--------|
| í Plug and | 1 & 2 | Unidentified | 1 & 2 | 1 & 2 |
| Play enabled | | | | |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. To |
| use the plug and play option, the optional chip C1 must be |
| installed. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, ‘+++’, A/ |
|------------------------------------------------------------|
| A, B, C, E, H, M, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &F, &M, &P, &Q, &T, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \K, \N, \V, |
|------------------------------------------------------------|
| %C, %E, %L, %Q, %TT |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S19, S20, S21, S22, S23, |
|------------------------------------------------------------|
| S24, S25, S26, S29, S30, S31, S32, S33, S36, S37, S38, |
| S39, S40, S41, S46, S48, S82, S86, S91, |
|------------------------------------------------------------|
| S92, S95 |
|------------------------------------------------------------|
| Special Commands |
|------------------------------------------------------------|
| #CID, +MS?, +MS, #BDR, #CLS, #MDL?, #MFR?, #REV?, #TL, |
| #VBQ, #VBS, #VBT, #VCI?, #VLS, |
|------------------------------------------------------------|
| #VRA, #VRN, #VRX, #VSD, #VSK, #VSP, #VSR, #VSS, #VTD, |
| #VTM, #VTS, #VTX |
|------------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-MODE DETECTION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects various options for the automatic |
| | detection and negotiation of protocols |
| | during the handshake process if the modem |
| | is communicating with a remote modem of |
| | dissimilar speed. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| N0 | Auto-mode detection disabled |
|--------------+---------------------------------------------|
| N1 | Auto-mode detection enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BLACKLISTED NUMBERS |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *B [cmds] |
|--------------+---------------------------------------------|
| Description: | Sends the list of ‘blacklisted’ numbers to |
| | the DTE. If no numbers are blacklisted, the |
| | OK result code is sent |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA SET READY (DSR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DSR options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &S0 | DSR forced high |
|--------------+---------------------------------------------|
| &S1 | DSR high only while modem is handshaking or |
| | connected |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA TERMINAL READY (DTR) |
|------------------------------------------------------------|
| Type: | Configuration |
|---------------+--------------------------------------------|
| Format: | AT [cmds] &Dn [cmds] |
|---------------+--------------------------------------------|
| Description: | Selects modem response to DTR |
|------------------------------------------------------------|
| Note: The action each variant of &D causes depends on |
| the setting of &Q |
|------------------------------------------------------------|
| &Q Setting | &D0 | &D1 | &D2 | &D3 |
|------------------+----------+----------+---------+---------|
| &Q0, &Q5, &Q6 | Command | Command | Command | Command |
| | 0 | 1 | 2 | 3 |
|------------------+----------+----------+---------+---------|
| &Q1, &Q4 | Command | Command | Command | Command |
| | 4 | 1 | 2 | 3 |
|------------------+----------+----------+---------+---------|
| &Q2, &Q3 | Command | Command | Command | Command |
| | 2 | 2 | 2 | 2 |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| Command 0 | Modem does not respond to DTR |
|---------------+--------------------------------------------|
| Command 1 | Modem goes to command mode after DTR goes |
| | off |
|---------------+--------------------------------------------|
| Command 2 | Modem goes to command mode and disconnects |
| | (hangs up) after DTR goes off; Auto-Answer |
| | is disabled. |
|---------------+--------------------------------------------|
| Command 3 | Modem is initialized after DTR goes off |
|---------------+--------------------------------------------|
| Command 4 | Modem goes to command mode and disconnects |
| | (hangs up) after DTR goes off. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
|--------------+---------------------------------------------|
| Note: | Any combination of modifiers can be used to |
| | produce the desired dial functions in |
| | sequence. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| 0-9 | Dialing digits |
|--------------+---------------------------------------------|
| A, B, C, D, | Tone dial characters |
| *, # | |
|--------------+---------------------------------------------|
| P | Pulse dial |
|--------------+---------------------------------------------|
| R | Reverse originate mode |
|--------------+---------------------------------------------|
| S=n | Dial NVRAM telephone number |
|--------------+---------------------------------------------|
| T | Tone dial |
|--------------+---------------------------------------------|
| W | Wait for dial tone |
|--------------+---------------------------------------------|
| , | Pause |
|--------------+---------------------------------------------|
| ! | Flash hook, modem goes on hook for .75 |
| | seconds |
|--------------+---------------------------------------------|
| @ | Wait for quiet answer |
|--------------+---------------------------------------------|
| ^ | Disable data calling tone for a single call |
| | origination |
|--------------+---------------------------------------------|
| ; | Modem returned to idle state after dialing. |
| | The semicolon can only be placed at the end |
| | of the dial command |
|--------------+---------------------------------------------|
| -( ) space | Ignored by modem. The modem ignores these |
| | characters, but they can be included in the |
| | dial string for separation purposes |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables flow control options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &K0 | Flow control disabled |
|--------------+---------------------------------------------|
| &K3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| &K4 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K5 | Transparent XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K6 | Unidirectional XON/XOFF flow control |
| | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| GUARD TONE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Commands the modem to transmit a guard tone |
| | in V.22/V.22bis |
|------------------------------------------------------------|
| Note: Used primarily for international data |
| transmission |
|------------------------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &G0 | Guard tone disabled |
|--------------+---------------------------------------------|
| &G1 | Guard tone disabled |
|--------------+---------------------------------------------|
| &G2 | 1800Hz guard tone enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports product code |
|--------------+---------------------------------------------|
| I1 | Calculates and verifies the ROM checksum |
|--------------+---------------------------------------------|
| I2 | Calculates and compares the ROM checksum |
| | with the pre-stored checksum |
|--------------+---------------------------------------------|
| I3 | Reports the firmware version, basic model, |
| | application code, and interface type code |
|--------------+---------------------------------------------|
| I4 | Reports OEM defined identifier string in |
| | either Hayes-compatible binary format or |
| | ASCII format |
|--------------+---------------------------------------------|
| I5 | Reports country code |
|--------------+---------------------------------------------|
| I6 | Reports modem data pump model and internal |
| | code revision |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SPEAKER VOLUME |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| L0 | Low speaker volume |
|--------------+---------------------------------------------|
| L1 | Low volume setting |
|--------------+---------------------------------------------|
| L2 | Medium volume setting |
|--------------+---------------------------------------------|
| L3 | Highest volume setting |
+------------------------------------------------------------+
