# ASCEND COMMUNICATIONS, INC.
MULTIBAND PLUS - BRI
Card Type ISDN BRI
Chip Set Unidentified
I/O Options AC power connector, power switch, serial
port,
ISDN BRI network interface via RJ-45
connector (8),
palmtop port via RJ-12 connector (2),data
port via 44-pin connector (4)
Wiring Type BRI
Network Transfer 64Kbps
Rate
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

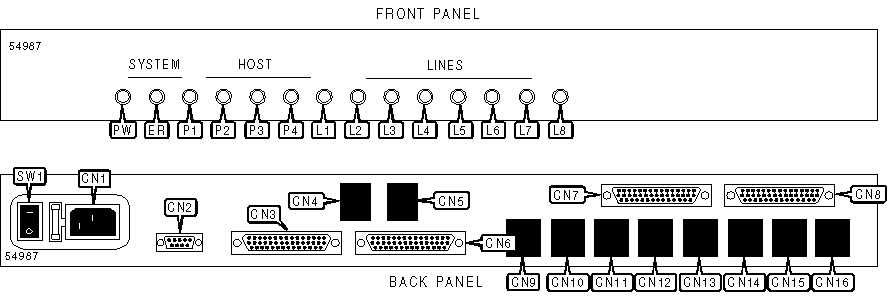

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| AC power connector | CN1 | RJ-45 network | CN10 |
| | | interface - line 2 | |
|----------------------+-------+---------------------+-------|
| Serial port | CN2 | RJ-45 network | CN11 |
| | | interface - line 3 | |
|----------------------+-------+---------------------+-------|
| 44-pin DTE port 1 | CN3 | RJ-45 network | CN12 |
| | | interface - line 4 | |
|----------------------+-------+---------------------+-------|
| RJ-12 palmtop | CN4 | RJ-45 network | CN13 |
| connector | | interface - line 5 | |
|----------------------+-------+---------------------+-------|
| RJ-12 palmtop | CN5 | RJ-45 network | CN14 |
| connector | | interface - line 6 | |
|----------------------+-------+---------------------+-------|
| 44-pin DTE port 2 | CN6 | RJ-45 network | CN15 |
| | | interface - line 7 | |
|----------------------+-------+---------------------+-------|
| 44-pin DTE port 3 | CN7 | RJ-45 network | CN16 |
| | | interface - line 8 | |
|----------------------+-------+---------------------+-------|
| 44-pin DTE port 4 | CN8 | Power | SW1 |
|----------------------+-------+---------------------+-------|
| RJ-45 network | CN9 | | |
| interface - line 1 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LEDS |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+---------+----------+---------------------------------|
| PW | Green | On | Power is on |
|-----+---------+----------+---------------------------------|
| PW | Green | Off | Power is off |
|-----+---------+----------+---------------------------------|
| ER | Red | On | Self test in progress |
|-----+---------+----------+---------------------------------|
| ER | Red | Blinking | Device is not functional due to |
| | | | fault or error |
|-----+---------+----------+---------------------------------|
| ER | Red | Off | Device is functional |
|-----+---------+----------+---------------------------------|
| P1 | Green | On | Channel 1 is active |
|-----+---------+----------+---------------------------------|
| P1 | Green | Blinking | Device is in diagnostic mode. |
| | | | BERT, auto-BERT, remote |
| | | | loopback, or local loopback |
| | | | test in progress |
|-----+---------+----------+---------------------------------|
| P1 | Green | Off | Channel 1 is inactive |
|-----+---------+----------+---------------------------------|
| P2 | Green | On | Channel 2 is active |
|-----+---------+----------+---------------------------------|
| P2 | Green | Blinking | Device is in diagnostic mode. |
| | | | BERT, auto-BERT, remote |
| | | | loopback, or local loopback |
| | | | test in progress |
|-----+---------+----------+---------------------------------|
| P2 | Green | Off | Channel 2 is inactive |
|-----+---------+----------+---------------------------------|
| P3 | Green | On | Channel 3 is active |
|-----+---------+----------+---------------------------------|
| P3 | Green | Blinking | Device is in diagnostic mode. |
| | | | BERT, auto-BERT, remote |
| | | | loopback, or local loopback |
| | | | test in progress |
|-----+---------+----------+---------------------------------|
| P3 | Green | Off | Channel 3 is inactive |
|-----+---------+----------+---------------------------------|
| P4 | Green | On | Channel 4 is active |
|-----+---------+----------+---------------------------------|
| P4 | Green | Blinking | Device is in diagnostic mode. |
| | | | BERT, auto-BERT, remote |
| | | | loopback, or local loopback |
| | | | test in progress |
|-----+---------+----------+---------------------------------|
| P4 | Green | Off | Channel 4 is inactive |
|-----+---------+----------+---------------------------------|
| L1 | Green | On | Valid logical link established |
| | | | on ISDN BRI line 1 |
|-----+---------+----------+---------------------------------|
| L1 | Green | Blinking | Physical link is good, logical |
| | | | link is broken. ISDN BRI line 1 |
| | | | connection not compatible with |
| | | | unit or configuration |
|-----+---------+----------+---------------------------------|
| L1 | Green | Off | Link is broken on ISDN BRI line |
| | | | 1 |
|-----+---------+----------+---------------------------------|
| L2 | Green | On | Valid logical link established |
| | | | on ISDN BRI line 2 |
|-----+---------+----------+---------------------------------|
| L2 | Green | Blinking | Physical link is good, logical |
| | | | link is broken. ISDN BRI line 2 |
| | | | connection not compatible with |
| | | | unit or configuration |
|-----+---------+----------+---------------------------------|
| L2 | Green | Off | Link is broken on ISDN BRI line |
| | | | 2 |
|-----+---------+----------+---------------------------------|
| L3 | Green | On | Valid logical link established |
| | | | on ISDN BRI line 3 |
|-----+---------+----------+---------------------------------|
| L3 | Green | Blinking | Physical link is good, logical |
| | | | link is broken. ISDN BRI line 3 |
| | | | connection not compatible with |
| | | | unit or configuration |
|-----+---------+----------+---------------------------------|
| L3 | Green | Off | Link is broken on ISDN BRI line |
| | | | 3 |
|-----+---------+----------+---------------------------------|
| L4 | Green | On | Valid logical link established |
| | | | on ISDN BRI line 4 |
|-----+---------+----------+---------------------------------|
| L4 | Green | Blinking | Physical link is good, logical |
| | | | link is broken. ISDN BRI line 4 |
| | | | connection not compatible with |
| | | | unit or configuration |
|-----+---------+----------+---------------------------------|
| L4 | Green | Off | Link is broken on ISDN BRI line |
| | | | 4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LEDS (CONT.) |
|------------------------------------------------------------|
| L5 | Green | On | Valid logical link established |
| | | | on ISDN BRI line 5 |
|----+---------+----------+----------------------------------|
| L5 | Green | Blinking | Physical link is good, logical |
| | | | link is broken. ISDN BRI line 5 |
| | | | connection not compatible with |
| | | | unit or configuration |
|----+---------+----------+----------------------------------|
| L5 | Green | Off | Link is broken on ISDN BRI line |
| | | | 5 |
|----+---------+----------+----------------------------------|
| L6 | Green | On | Valid logical link established |
| | | | on ISDN BRI line 6 |
|----+---------+----------+----------------------------------|
| L6 | Green | Blinking | Physical link is good, logical |
| | | | link is broken. ISDN BRI line 6 |
| | | | connection not compatible with |
| | | | unit or configuration |
|----+---------+----------+----------------------------------|
| L6 | Green | Off | Link is broken on ISDN BRI line |
| | | | 6 |
|----+---------+----------+----------------------------------|
| L7 | Green | On | Valid logical link established |
| | | | on ISDN BRI line 7 |
|----+---------+----------+----------------------------------|
| L7 | Green | Blinking | Physical link is good, logical |
| | | | link is broken. ISDN BRI line 7 |
| | | | connection not compatible with |
| | | | unit or configuration |
|----+---------+----------+----------------------------------|
| L7 | Green | Off | Link is broken on ISDN BRI line |
| | | | 7 |
|----+---------+----------+----------------------------------|
| L8 | Green | On | Valid logical link established |
| | | | on ISDN BRI line 8 |
|----+---------+----------+----------------------------------|
| L8 | Green | Blinking | Physical link is good, logical |
| | | | link is broken. ISDN BRI line 8 |
| | | | connection not compatible with |
| | | | unit or configuration |
|----+---------+----------+----------------------------------|
| L8 | Green | Off | Link is broken on ISDN BRI line |
| | | | 8 |
+------------------------------------------------------------+
