# BOCA RESEARCH, INC.
BOCA WINSTORM 56K PCI MODEM
Card Type Modem, Fax
Chip Set Unidentified
I/O Options microphone, speaker out
Maximum Modem Rate 56Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34, V.90, K56 flex
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP2-4,MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I & II
Data Bus 32-bit PCI
Card Size Half-length, half-height card

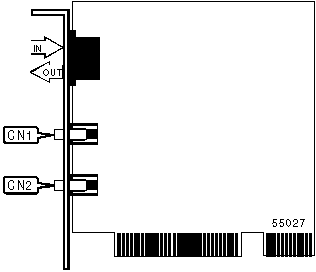

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Microphone | CN1 | Speaker out | CN2 |
+------------------------------------------------------------+
+---------------------------------------------------------+
| SUPPORTED COMMAND SET |
|---------------------------------------------------------|
| Basic AT Commands |
|---------------------------------------------------------|
| AT, A/ |
|---------------------------------------------------------|
| A, E, H, L, M, O, Q, S, T, V, X, Z |
|---------------------------------------------------------|
| &C, &F, &P, &V |
|---------------------------------------------------------|
| Extended AT Commands |
|---------------------------------------------------------|
| %Q |
|---------------------------------------------------------|
| S Registers |
|---------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12 |
|---------------------------------------------------------|
| Special Commands |
|---------------------------------------------------------|
| +MS |
|---------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+---------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
|--------------+---------------------------------------------|
| Note: | Any combination of modifiers can be used to |
| | produce the desired dial functions in |
| | sequence. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| DL | Re-dial last number |
|--------------+---------------------------------------------|
| DP | Pulse dialing enabled |
|--------------+---------------------------------------------|
| DS=n | Dial stored telephone number n |
|--------------+---------------------------------------------|
| DT | Tone dialing enabled/Pulse dialing disabled |
|--------------+---------------------------------------------|
| DW | Dialing resumed following dial tone |
| | detection |
|--------------+---------------------------------------------|
| D, | Dialing paused for amount of time specified |
| | in S8 register |
|--------------+---------------------------------------------|
| D"WXY" | Optional method of denoting telephone |
| | numbers. Letters enclosed in quotes are |
| | interpreted as numbers according to the |
| | system found on a telephone keypad. |
|--------------+---------------------------------------------|
| D! | Flash function initiated. Modem commanded |
| | to go off-hook for specified time before |
| | returning on-hook. |
|--------------+---------------------------------------------|
| D& | Wait for credit card bong before continuing |
| | with the dial string |
|--------------+---------------------------------------------|
| D^ | Toggles calling tone enable/disable |
|--------------+---------------------------------------------|
| D@ | Wait for Quite Answer function enabled. |
| | Modem waits until a "quiet answer," a |
| | ring-back signal followed by silence up to |
| | the time specified in S7, is received prior |
| | to executing the rest of the dial string. |
|--------------+---------------------------------------------|
| D$ | Wait for prompt tone detection function |
| | enabled. Waits for prompt tone for amount |
| | of time specified by the S7 command. |
|--------------+---------------------------------------------|
| D; | Modem returned to idle state after dialing. |
| | The semicolon can only be placed at the end |
| | of the dial command. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports modem model and speed |
|--------------+---------------------------------------------|
| I1 | Reports ROM checksum |
|--------------+---------------------------------------------|
| I2 | Tests and reports ROM checksum |
|--------------+---------------------------------------------|
| I3 | Unidentified |
|--------------+---------------------------------------------|
| I4 | Unidentified |
|--------------+---------------------------------------------|
| I5 | Unidentified |
|--------------+---------------------------------------------|
| I6 | Reports data connection information |
|--------------+---------------------------------------------|
| I7 | Reports manufacturer and model information |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA TERMINAL READY (DTR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Dn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem response to DTR |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &D0 | Modem does not respond to DTR |
|--------------+---------------------------------------------|
| &D1 | Modem goes to command mode after DTR goes |
| | is off |
|--------------+---------------------------------------------|
| &D2 | Modem goes to command mode and disconnects |
| | (hangs up) after DTR goes off; Auto-Answer |
| | is disabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| GUARD TONE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Commands the modem to transmit a guard tone |
| | in V.22/V.22bis |
|------------------------------------------------------------|
| Note: Used primarily for international data |
| transmission |
|------------------------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &G0 | Guard tone disabled |
|--------------+---------------------------------------------|
| &G1 | Guard tone disabled |
|--------------+---------------------------------------------|
| &G2 | 1800Hz guard tone enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| STORE ACTIVE PROFILE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Wn [cmds] |
|--------------+---------------------------------------------|
| Description: | Writes the values for the active profile |
| | into the non-volatile RAM |
+------------------------------------------------------------+
Extended AT Commands
+------------------------------------------------------------+
| AUTO-RETRAIN - AUTO-FALLBACK/FALL-FORWARD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %En [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls auto-retrain mode and |
| | fallback/fall-forward |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %E0 | Auto-retrain disabled |
|--------------+---------------------------------------------|
| %E1 | Auto-retrain enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DSVD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] –SSEn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the DSVD |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| -SSE0 | Disabled |
|--------------+---------------------------------------------|
| -SSE1 | Enabled |
+------------------------------------------------------------+
Special AT Commands
+------------------------------------------------------------+
| DATA COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +DSn,m,o,p [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| n=0 | Negotiated; no compression |
|--------------+---------------------------------------------|
| n=1 | Data compression both directions, accept |
| | any direction |
|--------------+---------------------------------------------|
| m=0 | Do not disconnect if V.42bis is not |
| | negotiated by the remote modem as specified |
| | in n |
|--------------+---------------------------------------------|
| o | Specifies the maximum number of dictionary |
| | entries (2048 entries) which should be |
| | negotiated |
|--------------+---------------------------------------------|
| p | Specifies the maximum string length |
| | (32bytes) to be negotiated |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ERROR CONTROL REPORING |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +Ern [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the whether or not the |
| | extended-format intermediate result code is |
| | transmitted from the modem to the DTE |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| +ER0 | Disabled |
|--------------+---------------------------------------------|
| +ER1 | Enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LOCAL FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +IFCn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the modem local flow control |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| +IFC0 | No flow control |
|--------------+---------------------------------------------|
| +IFC1 | XON/XOFF on transmitted data |
|--------------+---------------------------------------------|
| +IFC2 | Circuit 133 |
|--------------+---------------------------------------------|
| +IFC3 | XON/XOFF on transmitted data with XON/XOFF |
| | characters being passed through to the |
| | remote modem. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LOCAL RATE REPORTING |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +ILRRn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls whether or not the extended-format |
| | information text is transmitted from the |
| | modem to the DTE |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| +ILRR0 | Disabled |
|--------------+---------------------------------------------|
| +ILRR1 | Enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MANUFACTURER IDENTIFICATION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +GMIn [cmds] |
|--------------+---------------------------------------------|
| Description: | Reports the modem manufacturer |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MODEL IDENTIFICATION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +GMMn [cmds] |
|--------------+---------------------------------------------|
| Description: | Reports the modem model identification |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MODULATION REPORTING |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +MRn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the modulation reporting |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| +MR0 | Disabled |
|--------------+---------------------------------------------|
| +MR1 | Enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REVISION IDENTIFICATION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +GMRn [cmds] |
|--------------+---------------------------------------------|
| Description: | Reports the modem version, revision level, |
| | or date. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO READY MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +Hn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the video ready mode |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| +H0 | Disable video ready mode |
|--------------+---------------------------------------------|
| +H16 | Enabled video ready mode |
+------------------------------------------------------------+
S(status) -REGISTERS
+------------------------------------------------------------+
| FLASH DIAL MODIFIER TIME |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S29=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 70 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | .01 second |
|--------------+---------------------------------------------|
| Description: | Time the modem will go on-hook upon |
| | receiving the ! dial modifier in dial |
| | string. |
+------------------------------------------------------------+
