# ASCEND COMMUNICATIONS, INC.
PIPELINE 85
Card Type ISDN to Ethernet Router
Chip Set Unidentified
I/O Options Power connector, 9-pin serial port,
RJ-45 UTP interface (4),
RJ-11 telephone port (2), RJ-45 ISDN
BRI interface (U or S/T)
Ethernet Transfer Rate 10Mbps
ISDN Rate Unidentified
ISDN Modulation PPP, MP, MP+
Protocol
Error Unidentified
Correction/Compression
Data Bus External

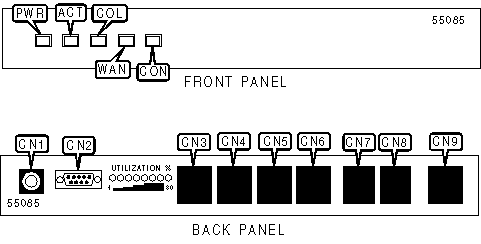

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| Power | CN1 | 10 BaseT Ethernet | CN6 |
| | | interface (RJ-45) | |
|-----------------------+-------+--------------------+-------|
| 9-pin serial port | CN2 | RJ-11 line 1 | CN7 |
|-----------------------+-------+--------------------+-------|
| 10 BaseT Ethernet | CN3 | RJ-11 line 2 | CN8 |
| interface (RJ-45) | | | |
|-----------------------+-------+--------------------+-------|
| 10 BaseT Ethernet | CN4 | ISDN BRI interface | CN9 |
| interface (RJ-45) | | (RJ-45) | |
|-----------------------+-------+--------------------+-------|
| 10 BaseT Ethernet | CN5 | | |
| interface (RJ-45) | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+----------+----------------------------|
| PWR | Unidentified | On | Power is on |
|-----+--------------+----------+----------------------------|
| PWR | Unidentified | Off | Power is off |
|-----+--------------+----------+----------------------------|
| ACT | Unidentified | Blinking | Data is being |
| | | | transmitted/received on |
| | | | Ethernet interface |
|-----+--------------+----------+----------------------------|
| ACT | Unidentified | Off | Data is not being |
| | | | transmitted/received on |
| | | | Ethernet interface |
|-----+--------------+----------+----------------------------|
| COL | Unidentified | Blinking | Collisions are being |
| | | | detected on Ethernet |
| | | | interface |
|-----+--------------+----------+----------------------------|
| COL | Unidentified | Off | Collisions are not being |
| | | | detected on Ethernet |
| | | | interface |
|-----+--------------+----------+----------------------------|
| WAN | Unidentified | On | WAN session is active |
|-----+--------------+----------+----------------------------|
| WAN | Unidentified | Blinking | Error detected on BRI |
| | | | interface |
|-----+--------------+----------+----------------------------|
| WAN | Unidentified | Off | Connection is broken on |
| | | | BRI interface |
|-----+--------------+----------+----------------------------|
| CON | Unidentified | On | Unit is connected to power |
| | | | source; power-up test in |
| | | | progress |
|-----+--------------+----------+----------------------------|
| CON | Unidentified | Off | Unit is not connected to |
| | | | power source; power-up |
| | | | test not in progress |
+------------------------------------------------------------+
