# ACTION WELL DEVELOPMENT, LTD.
AC-5618 (REV. 1.0)
Card Type Modem
Chipset Unidentified
I/O Options Audio in - CD-ROM, speaker connector,
line in, line out, audio in,
audio out, microphone in
Maximum Modem Rate 56.0Kbps
Maximum Fax Rate 14.4Kbps
Fax Class Class I
Modem Modulation Bell 103/212A
Protocol
ITU-T V.22bis,V.32, V.32bis, V.34,
V.34bis, V.90
Fax Modulation ITU-T V.17
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
Data Bus 16-bit ISA

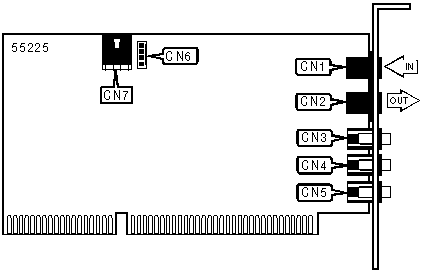

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line in | CN1 | Audio out | CN5 |
|-----------------------+---------+-------------------+------|
| Line out | CN2 | Audio in - CD-ROM | CN6 |
|-----------------------+---------+-------------------+------|
| Microphone in | CN3 | Audio in - CD-ROM | CN7 |
|-----------------------+---------+-------------------+------|
| Audio in | CN4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, ‘+++’, A/ |
|------------------------------------------------------------|
| A, E, H, M, O, P, Q, T, V |
|------------------------------------------------------------|
| &C, &P, &V, &W, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \N |
|------------------------------------------------------------|
| %C, %E |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12 |
|------------------------------------------------------------|
| Special Commands |
|------------------------------------------------------------|
| +MS, #CID |
|------------------------------------------------------------|
| Voice Commands |
|------------------------------------------------------------|
| #TL, #VBT, #VRA, #VRX, #VSD, #VSP, #VSS, #VTD, #VTS, |
| #VTX, #SPK |
|------------------------------------------------------------|
| Note: | See MHI Help File for full command documentation. |
| | Further information on S-registers is currently |
| | unavailable |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-MODE DETECTION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects various options for the automatic |
| | detection and negotiation of protocols |
| | during the handshake process if the modem |
| | is communicating with a remote modem of |
| | dissimilar speed. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| N0 | Auto-mode detection disabled. Handshake |
| | begins at line speed designated by the S32 |
| | register |
|--------------+---------------------------------------------|
| í N1 | Auto-mode detection enabled. Handshake |
| | conducted according to the automode |
| | algorithm supported by the modem |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMMUNICATION PROTOCOLS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Bn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the communication protocol for data |
| | calls |
|--------------+---------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| B0 | ITU-T V.22 at 1200bps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &K0 | Data compression disabled |
|--------------+---------------------------------------------|
| &K1 | MNP5 enabled |
|--------------+---------------------------------------------|
| &K2 | V.42bis enabled |
|--------------+---------------------------------------------|
| &K3 | MNP5 and V.42bis; or data compression and |
| | correction enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MESSAGE SPEED SOURCE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &En [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects source for speed field in CONNECT |
| | message |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &E0 | DCE speed field |
|--------------+---------------------------------------------|
| &E1 | DTE speed field |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MESSAGES |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &An [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the format of CONNECT messages |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &A0 | CONNECT only |
|--------------+---------------------------------------------|
| &A1 | Modulation indicator added to CONNECT |
| | message |
|--------------+---------------------------------------------|
| &A2 | Error detection and data compression |
| | indicators added to CONNECT message |
|--------------+---------------------------------------------|
| &A3 | Modulation, error detection and data |
| | compression indicators added to CONNECT |
| | message |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA SET READY (DSR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DSR options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &S0 | DSR forced high |
|--------------+---------------------------------------------|
| &S1 | DSR high only while modem is handshaking or |
| | connected |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA TERMINAL READY (DTR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Dn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem response to DTR |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &D0 | DTR forced high |
|--------------+---------------------------------------------|
| &D1 | DTR toggle causes online command mode |
|--------------+---------------------------------------------|
| &D2 | Normal DTR operations |
|--------------+---------------------------------------------|
| &D3 | Resets on receipt of DTR |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DEFAULT CONFIGURATION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Yn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the default user defined |
| | configuration |
|--------------+---------------------------------------------|
| Note: | Does not load configuration |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| Y0 | Select user template 0 |
|--------------+---------------------------------------------|
| Y1 | Select user template 1 |
|--------------+---------------------------------------------|
| í Y2 | Select factory setting 0 |
|--------------+---------------------------------------------|
| Y3 | Select factory setting 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
|--------------+---------------------------------------------|
| Note: | Any combination of modifiers can be used to |
| | produce the desired dial functions in |
| | sequence. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| DL | Re-dial last number |
|--------------+---------------------------------------------|
| DP | Pulse dialing enabled |
|--------------+---------------------------------------------|
| DS=n | Dial stored telephone number n |
|--------------+---------------------------------------------|
| DT | Tone dialing enabled/Pulse dialing disabled |
|--------------+---------------------------------------------|
| DW | Dialing resumed following dial tone |
| | detection |
|--------------+---------------------------------------------|
| D, | Dialing paused for amount of time specified |
| | in S8 register |
|--------------+---------------------------------------------|
| D@ | Wait for Quite Answer function enabled. |
| | Modem waits until a "quiet answer," a |
| | ring-back signal followed by silence up to |
| | the time specified in S7, is received prior |
| | to executing the rest of the dial string. |
|--------------+---------------------------------------------|
| D! | Flash function initiated. Modem commanded |
| | to go off-hook for specified time before |
| | returning on-hook. |
|--------------+---------------------------------------------|
| D; | Modem returned to idle state after dialing. |
| | The semicolon can only be placed at the end |
| | of the dial command. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY DEFAULT PROFILE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Fn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets values in active profile to values |
| | found in the default profile |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &F0 | Restore factory configuration 0 |
|--------------+---------------------------------------------|
| &F1 | Restore factory configuration 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Hn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables/disables flow control |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &H0 | Flow control disabled |
|--------------+---------------------------------------------|
| í &H1 | RTS to CTS flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I1 | Reports manufacturer and model name |
|--------------+---------------------------------------------|
| I2 | Reports software version and provider |
|--------------+---------------------------------------------|
| I3 | Reports vendor/chip ID |
|--------------+---------------------------------------------|
| I4 | Reports stored and active profile |
|--------------+---------------------------------------------|
| I5 | Reports stored and active profile |
|--------------+---------------------------------------------|
| I6 | Reports stored and active profile |
|--------------+---------------------------------------------|
| I7 | Reports stored telephone numbers |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RTS/CTS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Rn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects RTS/CTS options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &R0 | RTS is ignored |
|--------------+---------------------------------------------|
| &R1 | Modem recieves data only on RTS |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SELECT CALL PROGRESS RESULT CODES |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Xn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables selection of tone detection and |
| | associated result code format options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| X0 | Busy and dial tone detection disabled; |
| | result codes 0 - 4 enabled. |
|--------------+---------------------------------------------|
| X1 | Busy and dial tone detection disabled; |
| | result codes 0 - 5 & 9 - 1212 enabled. |
|--------------+---------------------------------------------|
| X2 | Busy tone detection disabled, dial tone |
| | detection enabled; result codes 0 - 6 & |
| | |
| | 9 - 1212 enabled. |
|--------------+---------------------------------------------|
| X3 | Busy tone detection enabled, dial tone |
| | detection disabled; result codes 0 - 5, |
| | |
| | 7 - 1212 enabled. |
|--------------+---------------------------------------------|
| X4 | Busy and dial tone detection enabled; |
| | result codes 0 - 1212 enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SOFT RESET |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Zn [cmds] |
|--------------+---------------------------------------------|
| Description: | Restores modem profiles previously saved in |
| | non-volatile RAM |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| Z0 | Restore default user template as defined by |
| | Yn |
|--------------+---------------------------------------------|
| Z1 | Restore user template 0 |
|--------------+---------------------------------------------|
| Z2 | Restore user template 1 |
|--------------+---------------------------------------------|
| Z3 | Restore factory setting 0 |
|--------------+---------------------------------------------|
| Z4 | Restore factory setting 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SPEAKER VOLUME |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| L0 | Low volume setting |
|--------------+---------------------------------------------|
| L1 | Low volume setting |
|--------------+---------------------------------------------|
| í L2 | Medium volume setting |
|--------------+---------------------------------------------|
| L3 | Highest volume setting |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Tn |
|--------------+---------------------------------------------|
| Description: | Selects test options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &T0 | TBD |
|--------------+---------------------------------------------|
| &T1 | TBD |
|--------------+---------------------------------------------|
| &T2 | TBD |
|--------------+---------------------------------------------|
| &T3 | TBD |
+------------------------------------------------------------+
EXTENDED AT COMMAND SET
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|-------------------+----------------------------------------|
| Format: | AT [cmds] \Kn [cmds] |
|-------------------+----------------------------------------|
| Description: | Configures action of break signal |
|------------------------------------------------------------|
| Command | Function |
|------------+-----------------------------------------------|
| \K0 | Online command mode enabled, send no break to |
| | remote modem |
|------------+-----------------------------------------------|
| \K1 | Break sent to remote modem and buffered |
| | cleared |
|------------+-----------------------------------------------|
| \K2 | Online command mode enabled, send no break to |
| | remote modem |
|------------+-----------------------------------------------|
| \K3 | Send break to remote modem immediately |
|------------+-----------------------------------------------|
| \K4 | Online command mode enabled, send no break to |
| | remote modem |
|------------+-----------------------------------------------|
| í \K5 | Send break with transmitted data |
+------------------------------------------------------------+
VOICE COMMANDS
+------------------------------------------------------------+
| INACTIVITY TIMER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VIT=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | .1ms |
|--------------+---------------------------------------------|
| Description: | Maximum duration of voice inactivity |
| | allowed prior to initiating hang-up |
| | process. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MODE SELECTION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #CLS=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects which mode the modem will operate |
| | in. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| #CLS=0 | Modem will operate in data mode. |
|--------------+---------------------------------------------|
| #CLS=1 | Modem will operate in fax class I mode. |
|--------------+---------------------------------------------|
| #CLS=8 | Modem will operate in voice mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RECORD GAIN |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #RG=hhhh [cmds] |
|--------------+---------------------------------------------|
| Range: | 0000 - 7FFF |
|--------------+---------------------------------------------|
| Unit: | Unidentified (hexadecimal) |
|--------------+---------------------------------------------|
| Description: | Sets the record gain. #RG? queries value |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VOICE - LOCAL SERIAL PORT SPEED |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #BDR=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-48 |
|--------------+---------------------------------------------|
| Unit: | 2400bps |
|--------------+---------------------------------------------|
| Description: | Sets the speed of the local serial port |
| | when in voice mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VOICE DEVICE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VLS=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the I/O device for the DSP chip. |
|--------------+---------------------------------------------|
| Note: | VLS? Queries current setting. #VLS=? |
| | Command will display the available options. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í #VLS=0 | Telephone line and handset used for voice |
| | I/O. |
|--------------+---------------------------------------------|
| #VLS=2 | Internal speaker only used for voice I/O. |
|--------------+---------------------------------------------|
| #VLS=3 | External microphone only used for voice |
| | I/O. |
|--------------+---------------------------------------------|
| #VLS=4 | Telephone line and handset used for voice |
| | I/O; internal speaker enabled. |
|--------------+---------------------------------------------|
| #VLS=6 | Speakerphone used for voice I/O. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VOICE PARAMETERS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VIP [cmds] |
|--------------+---------------------------------------------|
| Description: | Initializes voice parameters |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VOICE RING DETECT TIME |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VRN=n [cmds] |
|--------------+---------------------------------------------|
| Default: | Unidentified |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | .1ms |
|--------------+---------------------------------------------|
| Description: | Sets the maximum time the modem will wait |
| | for the remote station to ring before it |
| | assumes that it went off-hook before it |
| | rang. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VOICE SAMPLE QUALITY |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VBS=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the number of bits per sample that |
| | the modem records. |
|--------------+---------------------------------------------|
| Note: | This modem may not support all options |
| | listed below. The #VBS? Command will |
| | display the available options. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| #VBS=2 | Modem records 2 bits per sample in ADPCM |
| | encoding. |
|--------------+---------------------------------------------|
| #VBS=4 | Modem records 4 bits per sample in ADPCM |
| | encoding. |
|--------------+---------------------------------------------|
| #VBS=8 | Modem records 8 bits per sample in PCM |
| | encoding. |
|--------------+---------------------------------------------|
| #VBS=16 | Modem records 16 bits per sample in PCM |
| | encoding. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VOICE SAMPLING RATE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VSR=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the sampling rate used when recording |
| | voice signals. #VSR? queries settings |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| #VSR=7200 | Selects a sampling rate of 7.2KHz. |
|--------------+---------------------------------------------|
| #VSR=8000 | Selects a sampling rate of 8.0KHz. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VOICE TIMING MARK |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VTM=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 1-10 |
|--------------+---------------------------------------------|
| Unit: | 1ms |
|--------------+---------------------------------------------|
| Description: | Configures timing mark placement. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VOICE VOLUME LEVEL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VGT=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Description: | Sets the volume level when playing back |
| | audio signals. |
+------------------------------------------------------------+
