# ACEEX CORPORATION
DM-56V14H (INTERNAL)
Card Type Modem
Chip Set Unidentified
I/O Options Line out, line in, microphone in,
speaker out
Maximum Modem Rate 56Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34, V.34+, K56flex
Fax Modulation ITU-T V.17, V.21 CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Unidentified
Data Bus 8-bit ISA
IMG IMG 1
+------------------------------------------------------------+

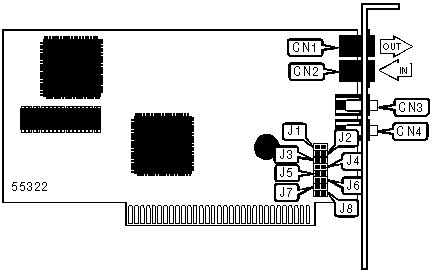

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line out (RJ-11) | CN1 | Microphone in | CN3 |
|---------------------------+---------+---------------+------|
| Line in (RJ-11) | CN2 | Speaker out | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS |
|------------------------------------------------------------|
| Setting | J1 | J2 | J3 | J4 |
|--------------------+---------+---------+---------+---------|
| í COM1 (3F8h) | Closed | Closed | Open | Open |
|--------------------+---------+---------+---------+---------|
| COM2 (2F8h) | Closed | Open | Open | Closed |
|--------------------+---------+---------+---------+---------|
| COM3 (3E8h) | Open | Closed | Closed | Open |
|--------------------+---------+---------+---------+---------|
| COM4 (2E8h) | Open | Open | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | J5 | J6 | J7 | J8 |
|-----------------+----------+----------+---------+----------|
| 2 | Closed | Open | Open | Open |
|-----------------+----------+----------+---------+----------|
| 3 | Open | Closed | Open | Open |
|-----------------+----------+----------+---------+----------|
| í 4 | Open | Open | Closed | Open |
|-----------------+----------+----------+---------+----------|
| 5 | Open | Open | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, ‘+++’, A/ |
|------------------------------------------------------------|
| A, B, C, E, H, M, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &P, &Q, &R, &T, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| %C, %E, %L, %Q |
|------------------------------------------------------------|
| \A, \B, \K, \N, \V |
|------------------------------------------------------------|
| Special Commands |
|------------------------------------------------------------|
| -K |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9,S10, S11, S12, S14, |
| S16, S18, S21, S22, S23, S24, S25 |
|------------------------------------------------------------|
| S26, S27, S28, S29, S30, S31, S32, S33, S37, S39, S41, |
| S91, S92 |
|------------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+------------------------------------------------------------+
PROPRIETARY AT COMMAND SET
+------------------------------------------------------------+
| AUTO-MODE DETECTION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects various options for the automatic |
| | detection and negotiation of protocols |
| | during the handshake process if the modem |
| | is communicating with a remote modem of |
| | dissimilar speed. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| N0 | Auto-mode detection disabled. Handshake |
| | begins at line speed designated by the S37 |
| | register. If S37=0 handshake follows |
| | interface speed |
|--------------+---------------------------------------------|
| N1 | Auto-mode detection enabled. Handshake |
| | begins at line speed designated by the S37 |
| | register. If S37=0 handshake at highest |
| | possible speed with fallback to lower speed |
| | if necessary |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMMUNICATIONS MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Mn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects communications mode |
|--------------+---------------------------------------------|
| Command | Mode |
|--------------+---------------------------------------------|
| &M0 | Asynchronous mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA SET READY (DSR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DSR options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &S0 | DSR forced high |
|--------------+---------------------------------------------|
| &S1 | DSR acts per V.25 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA TERMINAL READY (DTR) |
|------------------------------------------------------------|
| Type: | Configuration |
|---------------+--------------------------------------------|
| Format: | AT [cmds] &Dn [cmds] |
|---------------+--------------------------------------------|
| Description: | Selects modem response to DTR |
|------------------------------------------------------------|
| Note: The action each variant of &D causes depends on |
| the setting of &Q |
|------------------------------------------------------------|
| &Q Setting | &D0 | &D1 | &D2 | &D3 |
|------------------+----------+----------+---------+---------|
| &Q0, &Q5, &Q6 | Command | Command | Command | Command |
| | 0 | 1 | 2 | 4 |
|------------------+----------+----------+---------+---------|
| &Q1, &Q4 | Command | Command | Command | Command |
| | 2 | 1 | 2 | 4 |
|------------------+----------+----------+---------+---------|
| &Q2, &3 | Command | Command | Command | Command |
| | 2 | 2 | 2 | 2 |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| Command 0 | Modem does not respond to DTR |
|---------------+--------------------------------------------|
| Command 1 | Modem goes to command mode after DTR goes |
| | is off |
|---------------+--------------------------------------------|
| Command 2 | Modem goes to command mode and disconnects |
| | (hangs up) after DTR goes off; Auto-Answer |
| | is disabled. |
|---------------+--------------------------------------------|
| Command 3 | Modem is initialized after DTR goes off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY DEFAULT PROFILE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &F [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets values in active profile to values |
| | found in the default profile |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &F0 | Load factory configuration 0 |
|--------------+---------------------------------------------|
| &F1 | Load factory configuration 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables flow control options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &K0 | Flow control disabled |
|--------------+---------------------------------------------|
| &K3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| &K4 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K5 | Transparent XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K6 | Unidirectional XON/XOFF flow control |
| | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| GUARD TONE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Commands the modem to transmit a guard tone |
| | in V.22/V.22bis |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &G0 | Guard tone disabled |
|--------------+---------------------------------------------|
| &G1 | Guard tone disabled |
|--------------+---------------------------------------------|
| &G2 | 1800Hz guard tone enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| JACK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Jn [cmds] |
|--------------+---------------------------------------------|
| Description: | For purposes compatibility only. Performs |
| | no function |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects line type |
|--------------+---------------------------------------------|
| Command | Line Type |
|--------------+---------------------------------------------|
| &L0 | Switched line (PSTN/Dial-up) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports product ID code |
|--------------+---------------------------------------------|
| I1 | Reports ROM checksum |
|--------------+---------------------------------------------|
| I2 | Tests and reports ROM checksum |
|--------------+---------------------------------------------|
| I3 | Reports firmware revision, model, and |
| | interface type |
|--------------+---------------------------------------------|
| I4 | Reports OEM identifier string in either |
| | binary or ASCII format |
|--------------+---------------------------------------------|
| I5 | Reports country code |
|--------------+---------------------------------------------|
| I6 | Reports data pump model and internal code |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SPEAKER VOLUME |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| L0 | Low volume setting |
|--------------+---------------------------------------------|
| L1 | Low volume setting |
|--------------+---------------------------------------------|
| L2 | Medium volume setting |
|--------------+---------------------------------------------|
| L3 | Highest volume setting |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMIT CARRIER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Command non-functional; for compatibility |
| | only. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| C1 | Returns OK |
+------------------------------------------------------------+
S(status) -REGISTERS
+------------------------------------------------------------+
| ERROR CORRECTION/COMPRESSION |
|------------------------------------------------------------|
| Type: | Register |
|------------------------------------------------------------|
| Format: | AT [cmds] S46=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects active error correction and |
| | compression protocols |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| S46=136 | LAP-M only, no compression |
|---------------+--------------------------------------------|
| S46=138 | LAP-M with V.42bis data compression |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FEATURE NEGOTIATION OPTIONS |
|------------------------------------------------------------|
| Type: | Register |
|------------------------------------------------------------|
| Format: | AT [cmds] S48=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects active error correction and |
| | compression protocols |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| S48=0 | Detection negotiation disabled, XID |
| | negotiation disabled |
|---------------+--------------------------------------------|
| S48=7 | Detection negotiation and XID negotiation |
| | enabled |
|---------------+--------------------------------------------|
| S48=128 | Fall-back to options set in S36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK OPTIONS |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S82=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the method for break transmission |
| | during error-control and ASB connections. |
|------------------------------------------------------------|
| Command | Function |
|------------+-----------------------------------------------|
| S82=3 | Expedited signaling, immediately send timed |
| | break |
|------------+-----------------------------------------------|
| S82=7 | Destructive signaling, buffers cleared, |
| | immediately send timed break |
|------------+-----------------------------------------------|
| S82=128 | In-sequence signaling, timed break sent in |
| | sequence with transmitted data |
+------------------------------------------------------------+
