# ACEEX CORPORATION
DM-56V14H (EXTERNAL - PLASTIC CASE)
Card Type Modem
Chip Set Unidentified
I/O Options Line out, line in, 25-pin DTE port,
microphone in, speaker out
Maximum Modem Rate 56Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34, V.34+, K56flex
Fax Modulation ITU-T V.17, V.21 CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Unidentified
Data Bus External

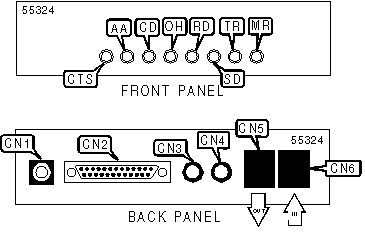

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Power | CN1 | Microphone in | CN4 |
|------------------------+---------+------------------+------|
| 25-pin DTE port | CN2 | Line out (RJ-11) | CN5 |
|------------------------+---------+------------------+------|
| Speaker out | CN3 | Line in (RJ-11) | CN6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LEDS |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+------------------+----------+------------------------|
| CTS | Unidentified | On | CTS signal is high. |
| | | | Device is ready to |
| | | | send data |
|-----+------------------+----------+------------------------|
| CTS | Unidentified | Off | CTS signal is low |
|-----+------------------+----------+------------------------|
| AA | Unidentified | On | Auto-answer enabled |
|-----+------------------+----------+------------------------|
| AA | Unidentified | Off | Auto-answer disabled |
|-----+------------------+----------+------------------------|
| CD | Unidentified | On | Carrier signal |
| | | | detected or error |
| | | | correction negotiation |
| | | | completed |
|-----+------------------+----------+------------------------|
| CD | Unidentified | Off | Carrier signal not |
| | | | detected |
|------------------------------------------------------------|
| OH | Unidentified | On | Modem is off hook |
|-------------+----------------+-----+-----------------------|
| OH | Unidentified | Off | Modem is on hook |
|-------------+----------------+-----+-----------------------|
| RD | Unidentified | On | Modem is receiving |
| | | | data |
|-------------+----------------+-----+-----------------------|
| RD | Unidentified | Off | Modem is not |
| | | | receiving data |
|-------------+----------------+-----+-----------------------|
| SD | Unidentified | On | Modem is transmitting |
| | | | data |
|-------------+----------------+-----+-----------------------|
| SD | Unidentified | Off | Modem is not |
| | | | transmitting data |
|------------------------------------------------------------|
| TR | Unidentified | On | DTR signal is high |
|-----+------------------+----------+------------------------|
| TR | Unidentified | Off | DTR signal is low |
|-----+------------------+----------+------------------------|
| MR | Unidentified | On | Power is on |
|-----+------------------+----------+------------------------|
| MR | Unidentified | Off | Power is off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, ‘+++’, A/ |
|------------------------------------------------------------|
| A, B, C, E, H, M, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &P, &Q, &R, &T, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| %C, %E, %L, %Q |
|------------------------------------------------------------|
| \A, \B, \K, \N, \V |
|------------------------------------------------------------|
| Special Commands |
|------------------------------------------------------------|
| -K |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9,S10, S11, S12, S14, |
| S16, S18, S21, S22, S23, S24, S25 |
|------------------------------------------------------------|
| S26, S27, S28, S29, S30, S31, S32, S33, S37, S39, S41, |
| S91, S92 |
|------------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+------------------------------------------------------------+
PROPRIETARY AT COMMAND SET
For a full command summary, see ACEEX CORPORATION DM-56V14H
(INTERNAL)
