# CHIC TECHNOLOGY CORPORATION
336 IPC-SP
Card Type Modem, Fax
I/O Options RJ-11 line in, RJ-11 line out
Maximum Data Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A, 212A
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34, V.34bis
Fax Modulation ITU-T V.17, V.29, V.27ter, V.21CH.2
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I & II
Data Bus 16-bit ISA

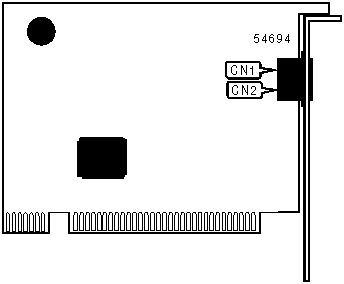

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| RJ-11 line | CN1 | RJ-11 line | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, A/ |
|------------------------------------------------------------|
| A, E, H, L, M, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &F, &G, &P, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \G, \K, \L, \N |
|------------------------------------------------------------|
| %C, %L |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S12, S18, |
| S25, S30, S32, S33, S38, S91 |
|------------------------------------------------------------|
| |
|------------------------------------------------------------|
| Note: See MHI help file for complete information. |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-MODE DETECTION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects various options for the automatic |
| | detection and negotiation of protocols |
| | during the handshake process if the modem |
| | is communicating with a remote modem of |
| | dissimilar speed. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| N0 | When originating or answering; handshake |
| | only at DTE to modem rate |
|--------------+---------------------------------------------|
| í N1 | When originating or answering; handshake at |
| | DTE to modem rate. Modem can shift to a |
| | lower speed if necessary |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMMUNICATION PROTOCOLS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Bn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the communication protocol for data |
| | calls |
|------------------------------------------------------------|
| Note: The B command allows the simultaneous selection |
| of more than one suffix, enabling multiple protocols. |
|------------------------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| B0 | ITU-T V.22 at 300 or 1200bps |
|--------------+---------------------------------------------|
| B1 | Bell 212A at 300 or 1200bps |
|--------------+---------------------------------------------|
| B2 | V.23 at 75bps transmit, 1200bps receive in |
| | originate mode; 1200bps transmit, 75bps |
| | receive in answer mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONFIGURATION PROFILES |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &V [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays active and stored configuration |
| | profiles |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &V0 | Display active profile |
|--------------+---------------------------------------------|
| &V1 | Display stored profiles |
|--------------+---------------------------------------------|
| &V2 | Display stored telephone numbers |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA SET READY (DSR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DSR options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &S0 | DSR forced high |
|--------------+---------------------------------------------|
| &S1 | DSR high only while modem is handshaking or |
| | connected |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA TERMINAL READY (DTR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Dn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem response to DTR |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &D0 | DTR is ignored (assumed on) |
|--------------+---------------------------------------------|
| &D1 | Modem goes to command mode after DTR goes |
| | is off |
|--------------+---------------------------------------------|
| í &D2 | Modem goes to command mode and disconnects |
| | (hangs up) after DTR goes off; Auto-Answer |
| | is disabled. |
|--------------+---------------------------------------------|
| &D3 | Modem is initialized after DTR goes off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
|--------------+---------------------------------------------|
| Note: | Any combination of modifiers can be used to |
| | produce the desired dial functions in |
| | sequence. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| DL | Re-dial last number |
|--------------+---------------------------------------------|
| DW | Dialing resumed following dial tone |
| | detection |
|--------------+---------------------------------------------|
| DP | Pulse dialing enabled |
|--------------+---------------------------------------------|
| DR | Answer mode enabled; originate mode |
| | disabled following handshake initiation. |
|--------------+---------------------------------------------|
| DS=n | Dial stored telephone number n |
|--------------+---------------------------------------------|
| DT | Tone dialing enabled/Pulse dialing disabled |
|--------------+---------------------------------------------|
| D, | Dialing paused for amount of time specified |
| | in S8 register |
|--------------+---------------------------------------------|
| D! | Flash function initiated. Modem commanded |
| | to go off-hook for specified time before |
| | returning on-hook. |
|--------------+---------------------------------------------|
| D@ | Wait for Quite Answer function enabled. |
| | Modem waits until a "quiet answer," a |
| | ring-back signal followed by silence up to |
| | the time specified in S7, is received prior |
| | to executing the rest of the dial string. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables flow control options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &K0 | Flow control disabled |
|--------------+---------------------------------------------|
| &K3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| &K4 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K5 | Transparent XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K6 | RTS/CTS and XON/XOFF flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports product code |
|--------------+---------------------------------------------|
| I1 | Reports hardware variation code |
|--------------+---------------------------------------------|
| I2 | Reports internal code |
|--------------+---------------------------------------------|
| I3 | Reports software revision number |
|--------------+---------------------------------------------|
| I4 | Reports product feature |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Tn |
|--------------+---------------------------------------------|
| Description: | Selects test options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &T0 | End current test |
|--------------+---------------------------------------------|
| &T1 | Begin local analog loopback test |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRELLIS CODING |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Un |
|--------------+---------------------------------------------|
| Description: | Enables/disables Trellis coding |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &U0 | Trellis modulation enabled |
|--------------+---------------------------------------------|
| &U1 | Trellis modulation disabled |
+------------------------------------------------------------+
Extended AT Command Set
+------------------------------------------------------------+
| AUTO-RETRAIN - AUTO-FALLBACK/FALL-FORWARD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %En [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls auto-retrain mode and |
| | fallback/fall-forward |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %E0 | Auto-retrain disabled |
|--------------+---------------------------------------------|
| %E1 | Auto-retrain enabled |
|--------------+---------------------------------------------|
| %E2 | Auto-retrain, fallback/fall-forward enabled |
|--------------+---------------------------------------------|
| %E3 | Auto-retrain, fast hang-up enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SOURCE LOADING |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %N [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets dynamic CPU loading percentage |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %N0 | Dynamic CPU loading disabled |
|--------------+---------------------------------------------|
| %N1 | Dynamic CPU loading not to exceed 10% |
|--------------+---------------------------------------------|
| %N2 | Dynamic CPU loading not to exceed 20% |
|--------------+---------------------------------------------|
| %N3 | Dynamic CPU loading not to exceed 30% |
|--------------+---------------------------------------------|
| %N4 | Dynamic CPU loading not to exceed 40% |
|--------------+---------------------------------------------|
| %N5 | Dynamic CPU loading not to exceed 50% |
|--------------+---------------------------------------------|
| %N6 | Dynamic CPU loading not to exceed 60% |
|--------------+---------------------------------------------|
| %N7 | Dynamic CPU loading not to exceed 70% |
|--------------+---------------------------------------------|
| %N8 | Dynamic CPU loading not to exceed 80% |
|--------------+---------------------------------------------|
| %N9 | Dynamic CPU loading not to exceed 90% |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL QUALITY |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Q [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | Unidentified |
|--------------+---------------------------------------------|
| Description: | Returns a value which indicates line signal |
| | quality |
+------------------------------------------------------------+
S(status) -REGISTERS
+------------------------------------------------------------+
| CONNECTION FAILURE CODES |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S86? [cmds] |
|--------------+---------------------------------------------|
| Description: | Reports codes which correspond to the |
| | possible causes of a connection failure |
|--------------+---------------------------------------------|
| Value | Meaning |
|--------------+---------------------------------------------|
| 0 | Normal hang up |
|--------------+---------------------------------------------|
| 4 | Carrier signal lost |
|--------------+---------------------------------------------|
| 5 | No error-control detected for remote modem |
| | during feature negotiation |
|--------------+---------------------------------------------|
| 6 | Remote modem failed to respond to feature |
| | negotiation |
|--------------+---------------------------------------------|
| 9 | No common protocol found |
|--------------+---------------------------------------------|
| 12 | No failure - remote modem disconnected |
| | normally |
|--------------+---------------------------------------------|
| 13 | Remote modem failed to respond after 10 |
| | re-transmissions same message |
|--------------+---------------------------------------------|
| 14 | Violation of negotiated protocol caused |
| | failure |
|--------------+---------------------------------------------|
| 20 | Long Space Disconnect time limit reached |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DCE LINE SPEED |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S37=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum allowable data exchange |
| | rate attempted during handshake process. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S37=0 | Connect at highest possible speed |
|--------------+---------------------------------------------|
| S37=3 | Connect at 300bps |
|--------------+---------------------------------------------|
| S37=4 | Connect at 1200bps |
|--------------+---------------------------------------------|
| S37=6 | Connect at 2400bps |
|--------------+---------------------------------------------|
| S37=7 | Connect at 4800bps |
|--------------+---------------------------------------------|
| S37=8 | Connect at 7200bps |
|--------------+---------------------------------------------|
| S37=9 | Connect at 9600bps |
|--------------+---------------------------------------------|
| S37=10 | Connect at 12.0Kbps |
|--------------+---------------------------------------------|
| S37=11 | Connect at 14.4Kbps |
|--------------+---------------------------------------------|
| S37=12 | Connect at V.34 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.34 BIT RATE |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S34=n [cmds] |
|--------------+---------------------------------------------|
| Range | 0-5 |
|--------------+---------------------------------------------|
| Description: | Sets the maximum bit rate for V.34. |
| | Settings are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.34 BAUD RATE |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S35=n [cmds] |
|--------------+---------------------------------------------|
| Range | 0-5 |
|--------------+---------------------------------------------|
| Description: | Sets the maximum baud rate for V.34. |
| | Settings are unidentified. |
+------------------------------------------------------------+
