# GATEWAY 2000
TELEPATH DATA/FAX
Modem Type Data (Asynchronous/Synchronous)/Fax
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 9600bps
Data Bus 8-bit ISA
Fax Class Class I & II
Data Modulation Bell 103A & 212A, CCITT V.32bis & V.32
Protocol & V.22 V.22bis & V.21
Fax Modulation CCITT V.17 & V.29 & V.27ter
Protocol
Error CCITT V.42 & V.42bis & MNP 2-5
Correction/Compression
IMG IMG 1
+------------------------------------------------------------+

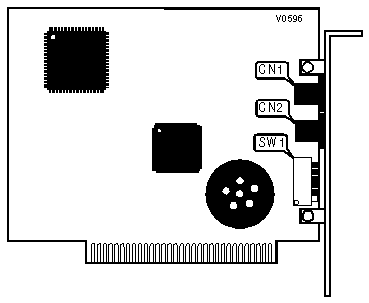

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COM PORT SETTINGS |
|------------------------------------------------------------|
| COM | SW1/1 | SW1/2 |
|-------------------+--------------------+-------------------|
| COM1 | On | On |
|-------------------+--------------------+-------------------|
| COM2 | Off | On |
|-------------------+--------------------+-------------------|
| COM3 | On | Off |
|-------------------+--------------------+-------------------|
| COM4 | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECT |
|------------------------------------------------------------|
| IRQ | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
|----------------+----------+----------+----------+----------|
| IRQ2 | Off | Off | Off | On |
|----------------+----------+----------+----------+----------|
| IRQ3 | Off | Off | On | Off |
|----------------+----------+----------+----------+----------|
| IRQ4 | Off | On | Off | Off |
|----------------+----------+----------+----------+----------|
| IRQ5 | On | Off | Off | Off |
+------------------------------------------------------------+
