# HAYES MICROCOMPUTER PRODUCTS, INC.
ACCURA 288B V.FC + FAX
Modem Type Data (synchronous/asynchronous)/Fax
Maximum Data Rate 28.8Kbps
Maximum Fax Rate 28.8Kbps
Data Bus External
Fax Class Class I & II
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.32,
V.32bis
Rockwell V.FC
Fax Modulation V.17, V.27ter, V.29
Protocol
Error MNP2-5, V.42, V.42bis
Correction/Compression
IMG IMG 1
+------------------------------------------------------------+

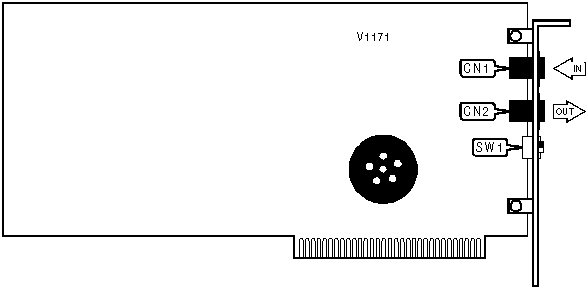

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT SELECTION |
|------------------------------------------------------------|
| Address | SW1/1 | SW1/2 |
|--------------------+-------------------+-------------------|
| COM1: | On | On |
|--------------------+-------------------+-------------------|
| COM2: | On | Off |
|--------------------+-------------------+-------------------|
| COM3: | Off | On |
|--------------------+-------------------+-------------------|
| COM4: | Off | Off |
+------------------------------------------------------------+
