# HAYES MICROCOMPUTER PRODUCTS, INC.
OPTIMA 24B + FAX96
Modem Type Data (synchronous/asynchronous)/Fax
Maximum Data Rate 2400bps
Maximum Fax Rate 9600bps
Data Bus 8-bit ISA
Fax Class Class I & II
Data Modulation Protocol Bell 103A/212A
ITU-T V.21, V.22, V.22bis
Fax Modulation Protocol V.27ter, V.29
Error MNP2-5, V.42, V.42bis
Correction/Compression

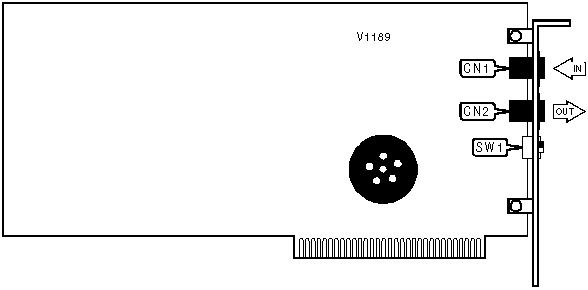

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | SW1/1 | SW1/2 |
|--------------------+-------------------+-------------------|
| COM1: | On | On |
|--------------------+-------------------+-------------------|
| COM2: | On | Off |
|--------------------+-------------------+-------------------|
| COM3: | Off | On |
|--------------------+-------------------+-------------------|
| COM4: | Off | Off |
+------------------------------------------------------------+
