# INTERLOGIC INDUSTRIES
A104-FM
Modem Type Data/Fax
Maximum Data Rate 2400 bps
Maximum Fax Rate 9600 bps
Data Bus Unidentified
Fax Class Unidentified
Data Modulation Protocol Bell 103A & 212A, CCITT V.22
Fax Modulation Protocol Unidentified
Error Correction/Compression CCITT V.42 & V.42bis, MNP 5

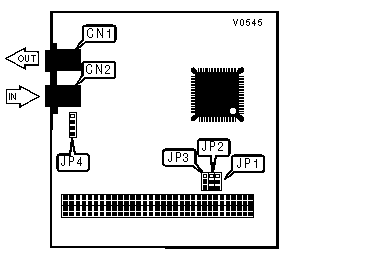

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COM PORT SETTINGS |
|------------------------------------------------------------|
| COM | JP1 | JP2 | JP3 |
|--------+-----------------+----------------+----------------|
| í COM4 | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & 3 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| COM1 | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| COM2 | Pins 2 & 3 | Pins 2 & 3 | Pins 1 & 2 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| COM3 | Pins 1 & 2 | Pins 1 & 2 | Pins 2 & 3 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECTOR JP4 |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| Pair 2 Tip & Ring | Pins 1 & 4 |
|-------------------------------+----------------------------|
| Pair 1 Tip & Ring | Pins 2 & 3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| S14 -BIT MAPPED CONFIGURATION REGISTER |
|------------------------------------------------------------|
| Value Range: | Bit-mapped |
|---------------------+--------------------------------------|
| Default: | 1 |
|---------------------+--------------------------------------|
| Type: | Read/Write |
|---------------------+--------------------------------------|
| In Stored Profile?: | Yes |
|---------------------+--------------------------------------|
| Description: | Bit Mapped Configuration Register |
|------------------------------------------------------------|
| Bit | Value | Function |
|-------------+---------+------------------------------------|
| 0 | 0 | Not used |
|-------------+---------+------------------------------------|
| 1 | í 1 | Enable: Command echo (E1) |
| | | |
| | 0 | Disable: Command echo (E0) |
|-------------+---------+------------------------------------|
| 2 | í 0 | Enable: Result codes (Q0) |
| | | |
| | 1 | Disable: Result codes (Q1) |
|-------------+---------+------------------------------------|
| 3 | í 1 | Set result codes to word (V1) |
| | | |
| | 0 | Set result codes to digit (V0) |
|-------------+---------+------------------------------------|
| 4 | 0 | Not used |
|-------------+---------+------------------------------------|
| 5 | í 1 | Set to Pulse dial (P) |
| | | |
| | 0 | Set to Tone Dial (T) |
|-------------+---------+------------------------------------|
| 6 | 0 | Not used |
|-------------+---------+------------------------------------|
| 7 | í 1 | Enable: Originate mode |
| | | |
| | 0 | Enable: Answer mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| S21 -BIT MAPPED CONFIGURATION REGISTER |
|------------------------------------------------------------|
| Value Range: | Bit-mapped |
|-----------------+------------------------------------------|
| Default: | 1 |
|-----------------+------------------------------------------|
| Type: | Read/Write |
|-----------------+------------------------------------------|
| In Stored | Yes |
| Profile?: | |
|-----------------+------------------------------------------|
| Description: | Bit Mapped Configuration Register |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+--------+---------------------------------------|
| 0 | 0 | Not used |
|-----------+--------+---------------------------------------|
| 1 | 0 | Not used |
|-----------+--------+---------------------------------------|
| 2 | 0 | Not used |
|-----------+--------+---------------------------------------|
| 3 & 4 | í 00 | Sets modem to ignore DTR (&D0) |
| | | |
| | 01 | ON-to-OFF transition on DTR forces |
| | | the modem to enter the command mode |
| | 10 | (&D1) |
| | | |
| | 11 | ON-to-OFF transition on DTR forces |
| | | the modem to hang up (&D2) |
| | | |
| | | ON-to-OFF transition on DTR forces |
| | | the modem to reset (&D3) |
|-----------+--------+---------------------------------------|
| 5 | í 0 | Enable: DCD always ON (&C0) |
| | | |
| | 1 | DCD checks the actual state of the |
| | | data carrier (&C1) |
|-----------+--------+---------------------------------------|
| 6 | 0 | Not used |
|-----------+--------+---------------------------------------|
| 7 | í 0 | Disable: Long Space Disconnect (Y0) |
| | | |
| | 1 | Enable: Long Space Disconnect (Y1) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| S22 -BIT MAPPED CONFIGURATION REGISTER |
|------------------------------------------------------------|
| Value Range: | Bit-mapped |
|-----------------+------------------------------------------|
| Default: | 1 |
|-----------------+------------------------------------------|
| Type: | Read/Write |
|-----------------+------------------------------------------|
| In Stored | Yes |
| Profile?: | |
|-----------------+------------------------------------------|
| Description: | Bit Mapped Configuration Register |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+--------+---------------------------------------|
| 0 & 1 | í 10 | Speaker volume set to medium (l1) |
| | | |
| | 00 | Speaker volume set to low (l0) |
| | | |
| | 01 | Speaker volume set to low (l1) |
| | | |
| | 11 | Speaker volume set to high (l3) |
|-----------+--------+---------------------------------------|
| 2 & 3 | í 01 | Enable: Speaker on until carrier |
| | | detected (M1) |
| | 00 | |
| | | Disable: Speaker (M0) |
| | 10 | |
| | | Enable: Speaker always on (M2) |
| | 11 | |
| | | Enable: Speaker on until carrier |
| | | detected but Off during dialing (M3) |
|-----------+--------+---------------------------------------|
| 4 & 5 & 6 | í 111 | Enable: fourth extended result code |
| | | set (X4) |
| | 000 | |
| | | Enable: basic result code set (x0) |
| | 100 | |
| | | Enable: first extended result code |
| | 101 | set (X1) |
| | | |
| | 110 | Enable: second extended result code |
| | | set (X2) |
| | | |
| | | Enable: third extended result code |
| | | set (X3) |
|-----------+--------+---------------------------------------|
| 7 | í 0 | Set Make/Break ratio is 39/61 for USA |
| | | (&P0) |
| | 1 | |
| | | Set Make/Break ratio is 33/67 for |
| | | UK/HK (&P1) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| S23 - BIT MAPPED CONFIGURATION REGISTER |
|------------------------------------------------------------|
| Value Range: | Bit-mapped |
|-------------------+----------------------------------------|
| Default: | 1 |
|-------------------+----------------------------------------|
| Type: | Read/Write |
|-------------------+----------------------------------------|
| In Stored | Yes |
| Profile?: | |
|-------------------+----------------------------------------|
| Description: | Bit Mapped Configuration Register |
|------------------------------------------------------------|
| Bit | Value | Function |
|-------------+--------+-------------------------------------|
| 0 | í 1 | Disable: Accept request from remote |
| | | modem for a remote digital loopback |
| | 0 | (&T5) |
| | | |
| | | Enable: Accept request from remote |
| | | modem for a remote digital loopback |
| | | (&T4) |
|-------------+--------+-------------------------------------|
| 1 & 2 & 3 | 000 | 300 bps |
| | | |
| | 001 | 600 bps |
| | | |
| | 010 | 1200 bps |
| | | |
| | 011 | 2400 bps |
| | | |
| | 100 | 4800 bps |
| | | |
| | 101 | 9600 bps |
|-------------+--------+-------------------------------------|
| 4 & 5 | 00 | Enable: Even parity. |
| | | |
| | 01 | Enable: Space parity. |
| | | |
| | 10 | Enable: Odd parity. |
| | | |
| | 11 | Enable: Mark parity. |
|-------------+--------+-------------------------------------|
| 6 | í 00 | Disable: Guard tone (&G0) |
| | | |
| | 01 | Enable: 550 Hz guard tone (&G2) |
| | | |
| | 10 | Enable: 1800 Hz guard tone (&G2) |
| | | |
| | 11 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| S27 -BIT MAPPED CONFIGURATION REGISTER |
|------------------------------------------------------------|
| Value Range: | Bit-mapped |
|-----------------+------------------------------------------|
| Default: | 1 |
|-----------------+------------------------------------------|
| Type: | Read/Write |
|-----------------+------------------------------------------|
| In Stored | Yes |
| Profile?: | |
|-----------------+------------------------------------------|
| Description: | Bit Mapped Configuration Register |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+--------+----------------------------------------|
| 0 | 0 | Not used |
|----------+--------+----------------------------------------|
| 1 | 0 | Not used |
|----------+--------+----------------------------------------|
| 2 | 0 | Not used |
|----------+--------+----------------------------------------|
| 3 | 0 | Not used |
|----------+--------+----------------------------------------|
| 4 | 0 | Not used |
|----------+--------+----------------------------------------|
| 5 | 0 | Not used |
|----------+--------+----------------------------------------|
| 6 | í 1 | Enable: Bell 212A with 1200bps, Bell |
| | | 103 with 300bps (B1) |
| | 0 | |
| | | Enable: CCITT V.22 with 1200bps; V.21 |
| | | with 300bps (B0) |
|----------+--------+----------------------------------------|
| 7 | 0 | Not used |
+------------------------------------------------------------+
