# LOGICODE TECHNOLOGY, INC.
1414XV
Modem Type Data (synchronous/asynchronous)/Fax
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Bus External
Fax Class Class I & II
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.32,
V.32bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP10, MNP5, V.42, V.42bis
Correction/Compression

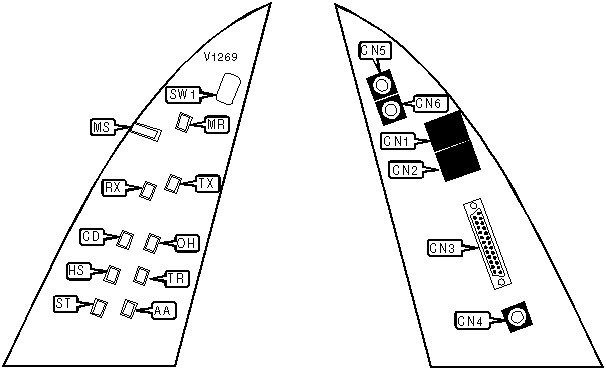

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Line out | CN1 | Speaker | CN5 |
|------------------+----------+-------------------+----------|
| Line in | CN2 | Microphone | CN6 |
|------------------+----------+-------------------+----------|
| RS-232/422 | CN3 | Power switch | SW1 |
|------------------+----------+-------------------+----------|
| DC power | CN4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Icon | Status | Condition |
|-----+-------------+----------+-----------------------------|
| AA | AA | On | Auto-answer enabled |
|-----+-------------+----------+-----------------------------|
| AA | AA | Off | Auto-answer disabled |
|-----+-------------+----------+-----------------------------|
| AA | AA | Blinking | Phone is ringing |
|-----+-------------+----------+-----------------------------|
| ST | Pyramid of | On | Self test mode |
| | balls | | |
|-----+-------------+----------+-----------------------------|
| ST | Pyramid of | Off | Normal operation |
| | balls | | |
|-----+-------------+----------+-----------------------------|
| ST | Pyramid of | Blinking | Self test failure |
| | balls | | |
|-----+-------------+----------+-----------------------------|
| RX | Modem left | On | Modem is receiving data |
| | arrow | | |
|-----+-------------+----------+-----------------------------|
| RX | Modem left | Off | Modem is not receiving data |
| | arrow | | |
|-----+-------------+----------+-----------------------------|
| TX | Modem right | On | Modem is transmitting data |
| | arrow | | |
|-----+-------------+----------+-----------------------------|
| TX | Modem right | Off | Modem is not transmitting |
| | arrow | | data |
|-----+-------------+----------+-----------------------------|
| CD | Phone | On | Carrier signal detected |
|-----+-------------+----------+-----------------------------|
| CD | Phone | Off | Carrier signal not detected |
|-----+-------------+----------+-----------------------------|
| HS | Running | On | Modem is operating at |
| | figure | | 4800bps or faster |
|-----+-------------+----------+-----------------------------|
| HS | Running | Off | Modem is operating at |
| | figure | | slower than 4800bps |
|-----+-------------+----------+-----------------------------|
| OH | Crossed out | On | Modem is off-hook |
| | phone | | |
|-----+-------------+----------+-----------------------------|
| OH | Crossed out | Off | Modem is on-hook |
| | phone | | |
|-----+-------------+----------+-----------------------------|
| TR | Box | On | DTR signal is high |
|-----+-------------+----------+-----------------------------|
| TR | Box | Off | DTR signal is low |
|-----+-------------+----------+-----------------------------|
| MS | Red | On | Modem connected at more |
| | | | than 24Kbps |
|-----+-------------+----------+-----------------------------|
| MS | Red | Off | Modem connected at less |
| | | | than 24Kbps |
|-----+-------------+----------+-----------------------------|
| MR | Rectangle | On | Power is on |
|-----+-------------+----------+-----------------------------|
| MR | Rectangle | Off | Power is off |
+------------------------------------------------------------+
Proprietary AT Command Set
See document V1275 for a full command summary.
