# ISDNET, INC.
NETROUTER 1040
Card Type ISDN to Ethernet router
Chipset Unidentified
Network Transfer Rate 10Mbps x 4
Topology Star
Wire Type Unshielded twisted pair
Error Correction/Compression STAC
ISDN Transfer Rate 56Kbps x 2/64Kbps x 2
ISDN Protocol PPP
Switch Type 5ESS, DMS100, NI-1
Data Bus Serial
IMG IMG 1
+------------------------------------------------------------+

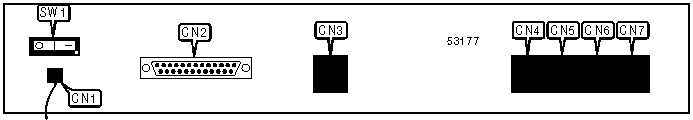

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| AC power in | CN1 | UTP connector 2 | CN5 |
|----------------------+-------+---------------------+-------|
| Serial port | CN2 | UTP connector 3 | CN6 |
|----------------------+-------+---------------------+-------|
| ISDN U interface | CN3 | UTP connector 4 | CN7 |
|----------------------+-------+---------------------+-------|
| UTP connector 1 | CN4 | Power switch | SW1 |
+------------------------------------------------------------+
