# LOGICODE TECHNOLOGY, INC.
9600 FAX EXTERNAL
Card Type Modem (asynchronous)
Chipset Unidentified
Maximum Data Rate 9600bps
Maximum Fax Rate 9600bps
Data Modulation Bell 103A, 212A
ITU-T V.21, V.22, V.22bis, V.32
Fax Modulation ITU-T V.21CH2, V.27ter, V.29
Error Correction/Compression MNP5, V.42, V.42bis
Fax Class Class I & II
Data Bus Serial
IMG IMG 1
+------------------------------------------------------------+

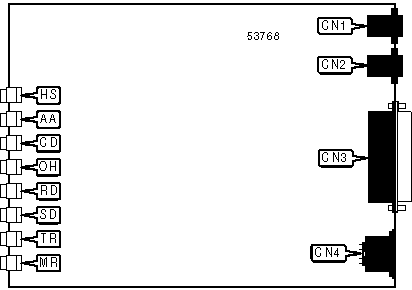

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| Telephone line in | CN1 | Serial port | CN3 |
|------------------------+-------+-------------------+-------|
| Telephone line out | CN2 | DC power in | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+-------+----------+-----------------------------------|
| HS | Green | On | Modem is operating at 4800bps or |
| | | | faster |
|-----+-------+----------+-----------------------------------|
| HS | Green | Off | Modem is operating at slower than |
| | | | 4800bps |
|-----+-------+----------+-----------------------------------|
| AA | Green | On | Auto-answer enabled |
|-----+-------+----------+-----------------------------------|
| AA | Green | Off | Auto-answer disabled |
|-----+-------+----------+-----------------------------------|
| AA | Green | Blinking | Phone is ringing |
|-----+-------+----------+-----------------------------------|
| CD | Green | On | Carrier signal detected |
|-----+-------+----------+-----------------------------------|
| CD | Green | Off | Carrier signal not detected |
|-----+-------+----------+-----------------------------------|
| OH | Green | On | Modem is off-hook |
|-----+-------+----------+-----------------------------------|
| OH | Green | Off | Modem is on-hook |
|-----+-------+----------+-----------------------------------|
| RD | Green | Blinking | Modem is receiving data |
|-----+-------+----------+-----------------------------------|
| RD | Green | Off | Modem is not receiving data |
|-----+-------+----------+-----------------------------------|
| SD | Green | Blinking | Modem is transmitting data |
|-----+-------+----------+-----------------------------------|
| SD | Green | Off | Modem is not transmitting data |
|-----+-------+----------+-----------------------------------|
| TR | Green | On | DTR signal is high |
|-----+-------+----------+-----------------------------------|
| TR | Green | Off | DTR signal is low |
|-----+-------+----------+-----------------------------------|
| MR | Green | On | Power is on |
|-----+-------+----------+-----------------------------------|
| MR | Green | Off | Power is off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| +++, ‘comma’, A/ |
|------------------------------------------------------------|
| A, C, D, E, F, H, L, M, N, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &K, &L, &P, &R, &S, &T, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \C, \G, \J, \N, \O, \Q, \T, \U, \V, \X, \Y, \Z |
|------------------------------------------------------------|
| %A, %C, %E, %G |
|------------------------------------------------------------|
| Special AT Commands |
|------------------------------------------------------------|
| -C, -J, "H, "O |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S21, S22, S23, S25, S26 |
|------------------------------------------------------------|
| S27, S30, S37, S95 |
|------------------------------------------------------------|
| Note: See MHI help file for complete information. |
+------------------------------------------------------------+
Proprietary AT Command Set
See LOGICODE TECHNOLOGY, INC. 9600 EXTERNAL for a full command
summary.
