# LOGICODE TECHNOLOGY, INC.
Card Type Modem (asynchronous)
Chipset Unidentified
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A, 212A
ITU-T V.21, V.22, V.22bis, V.32,
V.32bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I & II
Data Bus 8-bit ISA
Card Size Full-height, one-third length

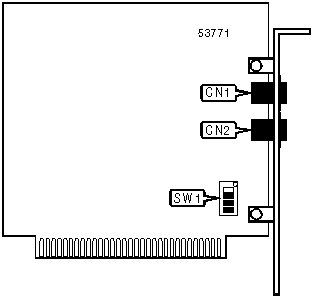

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Telephone line | CN1 | Telephone line | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 |
|--------------------+-------------------+-------------------|
| 3F8h (COM1:) | Off | Off |
|--------------------+-------------------+-------------------|
| 2F8h (COM2:) | Off | On |
|--------------------+-------------------+-------------------|
| 3E8h (COM3:) | On | Off |
|--------------------+-------------------+-------------------|
| 2E8h (COM4:) | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| Setting | SW1/3 | SW1/4 |
|--------------------+-------------------+-------------------|
| 2 | On | On |
|--------------------+-------------------+-------------------|
| 3 | Off | On |
|--------------------+-------------------+-------------------|
| 4 | Off | Off |
|--------------------+-------------------+-------------------|
| 5 | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| +++, ‘comma’, A/ |
|------------------------------------------------------------|
| A, C, D, E, F, H, L, M, N, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &K, &L, &P, &R, &S, &T, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \C, \G, \J, \N, \O, \Q, \T, \U, \V, \X, \Y, \Z |
|------------------------------------------------------------|
| %A, %C, %E, %G |
|------------------------------------------------------------|
| Special AT Commands |
|------------------------------------------------------------|
| -C, -J, "H, "O |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S21, S22, S23, S25, S26 |
|------------------------------------------------------------|
| S27, S30, S37, S95, S108, S109, S110 |
|------------------------------------------------------------|
| Note: See MHI help file for complete information. |
+------------------------------------------------------------+
Proprietary AT Command Set
See LOGICODE TECHNOLOGY, INC. 9600 EXTERNAL for a full command
summary.
