# LOGICODE TECHNOLOGY, INC.
9696XV, M9696XV
Card Type Modem (synchronous/asynchronous)
Chipset Unidentified
Maximum Data Rate 9600bps
Maximum Fax Rate 9600bps
Data Modulation Unidentified (V.32 maximum)
Fax Modulation ITU-T V.27ter, V.29
Error Correction/Compression MNP5, V.42, V.42bis
Fax Class Class I & II
Data Bus Serial
IMG IMG 1
+------------------------------------------------------------+

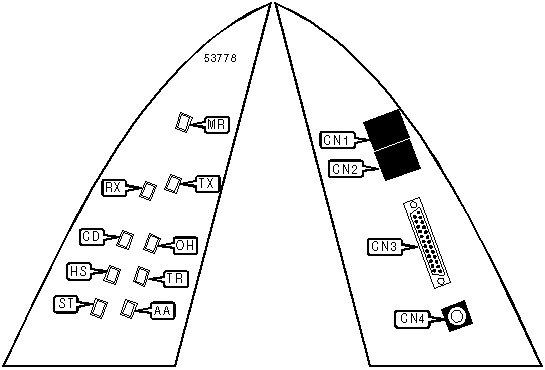

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| Telephone line out | CN1 | Serial port | CN3 |
|------------------------+-------+-------------------+-------|
| Telephone line in | CN2 | AC power in | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Icon | Status | Condition |
|-----+-------------+----------+-----------------------------|
| AA | AA | On | Auto-answer enabled |
|-----+-------------+----------+-----------------------------|
| AA | AA | Off | Auto-answer disabled |
|-----+-------------+----------+-----------------------------|
| AA | AA | Blinking | Phone is ringing |
|-----+-------------+----------+-----------------------------|
| ST | Pyramid of | On | Self test mode |
| | balls | | |
|-----+-------------+----------+-----------------------------|
| ST | Pyramid of | Off | Normal operation |
| | balls | | |
|-----+-------------+----------+-----------------------------|
| ST | Pyramid of | Blinking | Self test failure |
| | balls | | |
|-----+-------------+----------+-----------------------------|
| RX | Modem left | On | Modem is receiving data |
| | arrow | | |
|-----+-------------+----------+-----------------------------|
| RX | Modem left | Off | Modem is not receiving data |
| | arrow | | |
|-----+-------------+----------+-----------------------------|
| TX | Modem right | On | Modem is transmitting data |
| | arrow | | |
|-----+-------------+----------+-----------------------------|
| TX | Modem right | Off | Modem is not transmitting |
| | arrow | | data |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) (CON'T) |
|------------------------------------------------------------|
| CD | Phone | On | Carrier signal detected |
|----+----------------+-----+--------------------------------|
| CD | Phone | Off | Carrier signal not detected |
|----+----------------+-----+--------------------------------|
| HS | Running figure | On | Modem is operating at 4800bps |
| | | | or faster |
|----+----------------+-----+--------------------------------|
| HS | Running figure | Off | Modem is operating at slower |
| | | | than 4800bps |
|----+----------------+-----+--------------------------------|
| OH | Crossed out | On | Modem is off-hook |
| | phone | | |
|----+----------------+-----+--------------------------------|
| OH | Crossed out | Off | Modem is on-hook |
| | phone | | |
|----+----------------+-----+--------------------------------|
| TR | Box | On | DTR signal is high |
|----+----------------+-----+--------------------------------|
| TR | Box | Off | DTR signal is low |
|----+----------------+-----+--------------------------------|
| MR | Rectangle | On | Power is on |
|----+----------------+-----+--------------------------------|
| MR | Rectangle | Off | Power is off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| +++, ‘comma’, A/ |
|------------------------------------------------------------|
| A, B, E, F, H, L, M, N, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &J, &K, &L, &P, &R, &S, &T, &V, &W, &X, |
| &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \G, \K, \L, \N, \O, \T, \U, \Y, \Z |
|------------------------------------------------------------|
| %C, %E, %L, %Q |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S18, S25, S26, S30, S36, S38, S46 |
|------------------------------------------------------------|
| S48, S82, S86, S91, S95 |
|------------------------------------------------------------|
| Note: See MHI help file for complete information. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| UNIDENTIFIED COMMANDS |
|------------------------------------------------------------|
| Command | Default |
|------------------------------+-----------------------------|
| S14 | 0 |
|------------------------------+-----------------------------|
| S16 | 0 |
|------------------------------+-----------------------------|
| S21 | 0 |
|------------------------------+-----------------------------|
| S22 | 118 |
|------------------------------+-----------------------------|
| S23 | 7 |
|------------------------------+-----------------------------|
| S27 | 64 |
|------------------------------+-----------------------------|
| S40 | 57 |
|------------------------------+-----------------------------|
| S41 | 1 |
+------------------------------------------------------------+
Proprietary AT Command Set
See LOGICODE TECHNOLOGY, INC. 14.4HV for a full command summary.
