# MULTI-TECH SYSTEMS, INC.
MT932EA
Card Type Fax, Modem (synchronous/asynchronous)
Chip Set Unidentified
Maximum Data Rate 9600bps
Data Bus External
Fax Class Class I & II
Data Modulation Protocol Bell 103/212A
ITU-T V.22, V.22bis, V.25bis, V.32
Error MNP5, V.42, V.42bis
Correction/Compression

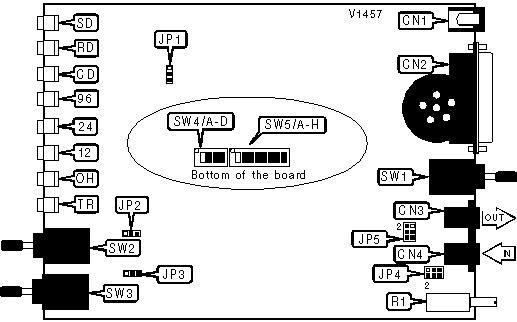

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| DC power | CN1 | Volume | R1 |
|----------------------+----------+-------------------+------|
| RS-232/422 | CN2 | Power switch | SW1 |
|----------------------+----------+-------------------+------|
| Line out | CN3 | Speed switch | SW2 |
|----------------------+----------+-------------------+------|
| Line in | CN4 | Voice/data switch | SW3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-----------------------------------------+-------+----------|
| í CTS normal | SW4/A | Off |
|-----------------------------------------+-------+----------|
| CTS forced high | SW4/A | On |
|-----------------------------------------+-------+----------|
| í Dial-up line | SW4/B | On |
|-----------------------------------------+-------+----------|
| Leased line | SW4/B | Off |
|-----------------------------------------+-------+----------|
| í External clock (Synchronous mode) | SW4/C | Off |
| | | |
| Multi-Tech response code (Asynchronous | | |
| mode) | | |
|-----------------------------------------+-------+----------|
| Internal clock (Synchronous mode) | SW4/C | On |
| | | |
| Hayes response code (Asynchronous mode) | | |
|-----------------------------------------+-------+----------|
| í Asynchronous mode | SW4/D | Off |
|-----------------------------------------+-------+----------|
| Synchronous mode | SW4/D | On |
|-----------------------------------------+-------+----------|
| í DTR forced high | SW5/A | On |
|-----------------------------------------+-------+----------|
| DTR normal | SW5/A | Off |
|-----------------------------------------+-------+----------|
| í Verbose result code (Asynchronous | SW5/B | On |
| mode) | | |
| | | |
| Analog loopback test enabled when SW4/B | | |
| is on (Synchronous mode) | | |
|-----------------------------------------+-------+----------|
| Numeric result code (Asynchronous mode) | SW5/B | Off |
| | | |
| Analog loopback test disabled when | | |
| SW4/B is off (Synchronous mode) | | |
|-----------------------------------------+-------+----------|
| í Result code sending enabled | SW5/C | Off |
| (Asynchronous mode) | | |
| | | |
| Remote loopback test enabled | | |
| (Synchronous mode) | | |
|-----------------------------------------+-------+----------|
| Result code sending disabled | SW5/C | On |
| (Asynchronous mode) | | |
| | | |
| Remote loopback test disabled | | |
| (Synchronous mode) | | |
|-----------------------------------------+-------+----------|
| í Local echo enabled (Asynchronous | SW5/D | On |
| mode) | | |
| | | |
| Local Digital loopback test enabled | | |
| (Synchronous mode) | | |
|-----------------------------------------+-------+----------|
| Local echo disabled (Asynchronous mode) | SW5/D | Off |
| | | |
| Local Digital loopback test disabled | | |
| (Synchronous mode) | | |
|-----------------------------------------+-------+----------|
| í Auto-answer enabled (Dial-up mode) | SW5/E | On |
| | | |
| Answer mode (Leased line mode) | | |
|-----------------------------------------+-------+----------|
| Auto-answer disabled (Dial-up mode) | SW5/E | Off |
| | | |
| Originate mode (Leased line mode) | | |
|-----------------------------------------+-------+----------|
| í CD/DSR signals normal | SW5/F | On |
|-----------------------------------------+-------+----------|
| CD/DSR signals forced high | SW5/F | Off |
|-----------------------------------------+-------+----------|
| í RTS forced high | SW5/G | Off |
|-----------------------------------------+-------+----------|
| RTS normal | SW5/G | On |
|-----------------------------------------+-------+----------|
| í Smart mode | SW5/H | Off |
|-----------------------------------------+-------+----------|
| Dumb mode | SW5/H | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL-UP/LEASE LINE |
|------------------------------------------------------------|
| Setting | JP4 |
|----------------------------+-------------------------------|
| í Dial-up | Pins 3 & 5, 4 & 6 closed |
|----------------------------+-------------------------------|
| Lease line | Pins 1 & 3, 2 & 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DSR |
|------------------------------------------------------------|
| Setting | JP3 |
|-------------------------------+----------------------------|
| í DSR follows CD | Pins 1 & 2 closed |
|-------------------------------+----------------------------|
| DSR follows off-hook | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MI/MIC |
|------------------------------------------------------------|
| Setting | JP5 |
|----------------------------+-------------------------------|
| í MI/MIC disabled | Pins 3 & 5, 4 & 6 closed |
|----------------------------+-------------------------------|
| MI/MIC enabled | Pins 1 & 3, 2 & 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RTS/CTS |
|------------------------------------------------------------|
| Setting | JP2 |
|------------------------------+-----------------------------|
| í CTS follows RTS | Pins 1 & 2 closed |
|------------------------------+-----------------------------|
| CTS forced high | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SDLC/BSC |
|------------------------------------------------------------|
| Setting | JP1 |
|----------------------------+-------------------------------|
| í SDLC | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| BSC | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+-------+----------+---------------------------------|
| SD | Red | On | Modem is transmitting data |
|-------+-------+----------+---------------------------------|
| SD | Red | Off | Modem is not transmitting data |
|-------+-------+----------+---------------------------------|
| RD | Red | On | Modem is receiving data |
|-------+-------+----------+---------------------------------|
| RD | Red | Off | Modem is not receiving data |
|-------+-------+----------+---------------------------------|
| CD | Red | On | Carrier signal detected |
|-------+-------+----------+---------------------------------|
| CD | Red | Off | Carrier signal not detected |
|-------+-------+----------+---------------------------------|
| CD | Red | Blinking | Modem is retraining |
|-------+-------+----------+---------------------------------|
| 96 | Red | On | Modem connected at 9600bps |
|-------+-------+----------+---------------------------------|
| 96 | Red | Off | Modem not connected at 9600bps |
|-------+-------+----------+---------------------------------|
| 24 | Red | On | Modem connected at 24Kbps |
|-------+-------+----------+---------------------------------|
| 24 | Red | Off | Modem not connected at 24Kbps |
|-------+-------+----------+---------------------------------|
| 12 | Red | On | Modem connected at 1200bps |
|-------+-------+----------+---------------------------------|
| 12 | Red | Off | Modem not connected at 1200bps |
|-------+-------+----------+---------------------------------|
| OH | Red | On | Modem is off-hook |
|-------+-------+----------+---------------------------------|
| OH | Red | Off | Modem is on-hook |
|-------+-------+----------+---------------------------------|
| TR | Red | On | DTR signal is high |
|-------+-------+----------+---------------------------------|
| TR | Red | Off | DTR signal is low |
|------------------------------------------------------------|
| Note: If LED 96, 24, or 12 are blinking 3 times a |
| second then V.42 is enabled at that speed. If LED 96, |
| 24, or 12 are blinking 1 time a second then data |
| compression is enabled at that speed. If LED 96, 24, |
| and 12 are on the modem is connected at 300bps. If |
| LED 96 and 24 are on the modem is connected at |
| 4800bps. |
+------------------------------------------------------------+
Proprietary AT Command Set
Proprietary V.25bis Command Set
See document V2030 for a full command summary.
