# MOTOROLA, INC.
VOICESURFR 14400 INTERNAL
Card Type Modem (asynchronous)/Fax/Voice
Chip Set Unidentified
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Bus 8-bit ISA
Fax Class Class I & II
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression

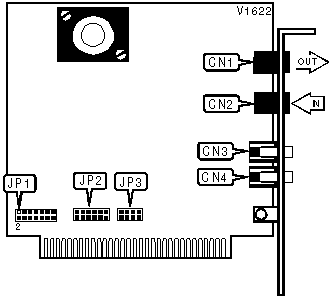

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line out | CN1 | Microphone | CN3 |
|-----------------------------+----------+------------+------|
| Line in | CN2 | Speaker | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-----------------------------------------+-------+----------|
| Factory configured - do not alter | JP2 | N/A |
|-----------------------------------------+-------+----------|
| Factory configured - do not alter | JP3 | N/A |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS |
|------------------------------------------------------------|
| Setting | JP1 |
|----------------------------+-------------------------------|
| COM1 (3F8h) | Pins 3 & 4, 5 & 6 closed |
|----------------------------+-------------------------------|
| COM2 (2F8h) | Pins 1 & 2, 3 & 4 closed |
|----------------------------+-------------------------------|
| í COM3 (3E8h) | Pins 1 & 2, 5 & 6 closed |
|----------------------------+-------------------------------|
| COM4 (2E8h) | Pins 1 & 2, 4 & 6 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT |
|------------------------------------------------------------|
| Setting | JP1 |
|----------------------------+-------------------------------|
| 3 | Pins 13 & 14 closed |
|----------------------------+-------------------------------|
| 4 | Pins 11 & 12 closed |
|----------------------------+-------------------------------|
| í 5 | Pins 9 & 10 closed |
|----------------------------+-------------------------------|
| 7 | Pins 7 & 8 closed |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| ACCEPT RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \U [cmds] |
|--------------+---------------------------------------------|
| Description: | Accepts remote modem’s request for reliable |
| | link |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO FALL FORWARD/FALLBACK |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects auto fallback/fall forward |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í %G0 | Fallback/fall forward disabled |
|--------------+---------------------------------------------|
| %G1 | Fallback/fall forward enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-RELIABLE FALLBACK CHARACTER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %An [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 1-127 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used as the |
| | auto-reliable fallback character. %A0 will |
| | disable this function. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-RELIABLE TIME BUFFER CONFIGURATION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the handling of incoming data |
| | during auto-reliable time period |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \CO | Data is discarded |
|--------------+---------------------------------------------|
| \C1 | Data is buffered for 4seconds or 200 |
| | characters |
|--------------+---------------------------------------------|
| \C2 | Data is discarded, V.42 enhancement. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-RETRAIN |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %En [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects auto-retrain mode |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %E0 | Auto-retrain disabled |
|--------------+---------------------------------------------|
| í %E1 | Auto-retrain enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK SEND |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Bn [cmds] |
|--------------+---------------------------------------------|
| Default: | Unidentified |
|--------------+---------------------------------------------|
| Range: | 0-9 |
|--------------+---------------------------------------------|
| Unit: | .1 second |
|--------------+---------------------------------------------|
| Description: | Sends break to modem |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CALLER ID |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VCID=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls Caller ID function |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| #VCID=0 | Caller ID disabled |
|--------------+---------------------------------------------|
| #VCID=1 | Caller ID enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %C0 | Data compression disabled |
|--------------+---------------------------------------------|
| í %C1 | Data compression enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets connect mode |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \N0 | Normal mode |
|--------------+---------------------------------------------|
| \N1 | Direct mode |
|--------------+---------------------------------------------|
| \N2 | MNP reliable mode |
|--------------+---------------------------------------------|
| í \N3 | V.42 auto-reliable mode |
|--------------+---------------------------------------------|
| \N4 | V.42 reliable mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EXTENDED RESULT CODES |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Vn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects extended result codes |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \V0 | CONNECT message displays modem to modem |
| | speed |
|--------------+---------------------------------------------|
| \V1 | CONNECT message displays modem to modem |
| | speed and error correction |
|--------------+---------------------------------------------|
| \V2 | CONNECT message displays modem to modem |
| | speed and error correction |
|--------------+---------------------------------------------|
| í \V3 | CONNECT message displays computer to modem |
| | speed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem port flow control |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \G0 | Flow control disabled |
|--------------+---------------------------------------------|
| \G1 | Flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Qn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets type of flow control used by modem |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \Q0 | Flow control disabled |
|--------------+---------------------------------------------|
| \Q1 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| \Q2 | CTS flow control to DTE enabled |
|--------------+---------------------------------------------|
| í \Q3 | RTS/CTS flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INACTIVITY TIMER |
|------------------------------------------------------------|
| Type | Configuration |
|-------------+----------------------------------------------|
| Format | AT [cmds] \Tn [cmds] |
|-------------+----------------------------------------------|
| Description | Controls the modem when it does not receive |
| | information, then it disconnects. |
|-------------+----------------------------------------------|
| Command | Function |
|-------------+----------------------------------------------|
| í \T0 | Inactivity timer disabled |
|-------------+----------------------------------------------|
| \T1 | Inactivity timer enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL QUALITY |
|------------------------------------------------------------|
| Type | Immediate |
|-------------+----------------------------------------------|
| Format | AT [cmds] %Q [cmds] |
|-------------+----------------------------------------------|
| Description | Reports line signal quality |
|-------------+----------------------------------------------|
| Value | Meaning |
|-------------+----------------------------------------------|
| 0 | Good |
|-------------+----------------------------------------------|
| 1 | Fair |
|-------------+----------------------------------------------|
| 2 | Poor |
|-------------+----------------------------------------------|
| 3 | Equalization lost |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LOCK SERIAL PORT |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Jn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets operation of serial port speed |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \J0 | Serial speed locked |
|--------------+---------------------------------------------|
| \J1 | Serial speed follows connect speed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MAXIMUM BLOCK SIZE FOR TRANSMISSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \An [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum transmittable block size |
| | for MNP |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \A0 | MNP block size is 64 characters |
|--------------+---------------------------------------------|
| \A1 | MNP block size is 128 characters |
|--------------+---------------------------------------------|
| \A2 | MNP block size is 192 characters |
|--------------+---------------------------------------------|
| í \A3 | MNP block size is 256 characters |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MAXIMUM BLOCK SIZE FOR TRANSMISSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] "On [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum transmittable block size |
| | for LAPM |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| "O16 | LAPM block size is 16 characters |
|--------------+---------------------------------------------|
| "O64 | LAPM block size is 64 characters |
|--------------+---------------------------------------------|
| "O128 | LAPM block size is 128 characters |
|--------------+---------------------------------------------|
| í "O192 | LAPM block size is 192 characters |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ON-LINE IN RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \O [cmds] |
|--------------+---------------------------------------------|
| Description: | Returns to on-line and requests reliable |
| | mode connection |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.42bis COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] "Hn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls V.42bis data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| "H0 | V.42bis disabled |
|--------------+---------------------------------------------|
| í "H1 | V.42bis enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| XON/XOFF PASS-THROUGH |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Xn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects whether XON/XOFF signals are sent |
| | to remote modem |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \X0 | XON/XOFF signals trapped by local modem |
|--------------+---------------------------------------------|
| \X1 | XON/XOFF passed through local modem |
+------------------------------------------------------------+
