# MAXTECH CORPORATION
Card Type Modem(synchronous/asynchronous)
Chip Set Unidentified
I/O Options Voice
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Bus External
Fax Class Class I & II
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.32,
V.32bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression

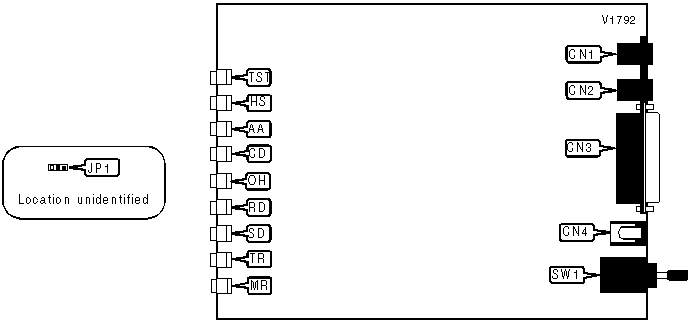

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line in | CN1 | DC power | CN4 |
|---------------------------+----------+--------------+------|
| Line out | CN2 | Power switch | SW1 |
|---------------------------+----------+--------------+------|
| RS-232/422 | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|--------------------------------+-------+-------------------|
| í AT commands enabled | JP1 | Pins 2 & 3 closed |
|--------------------------------+-------+-------------------|
| AT commands disabled | JP1 | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+-------+----------+-----------------------------------|
| TST | Red | On | Normal operation |
|-----+-------+----------+-----------------------------------|
| TST | Red | Blinking | Error detected and corrected |
|-----+-------+----------+-----------------------------------|
| HS | Red | On | Modem is operating at 4800bps or |
| | | | faster |
|-----+-------+----------+-----------------------------------|
| HS | Red | Off | Modem is operating at slower than |
| | | | 4800bps |
|-----+-------+----------+-----------------------------------|
| AA | Red | On | Auto-answer enabled |
|-----+-------+----------+-----------------------------------|
| AA | Red | Off | Auto-answer disabled |
|-----+-------+----------+-----------------------------------|
| AA | Red | Blinking | Phone is ringing |
|-----+-------+----------+-----------------------------------|
| CD | Red | On | Carrier signal detected |
|-----+-------+----------+-----------------------------------|
| CD | Red | Off | Carrier signal not detected |
|-----+-------+----------+-----------------------------------|
| OH | Red | On | Modem is off-hook |
|-----+-------+----------+-----------------------------------|
| OH | Red | Off | Modem is on-hook |
|-----+-------+----------+-----------------------------------|
| RD | Red | On | Modem is receiving data |
|-----+-------+----------+-----------------------------------|
| RD | Red | Off | Modem is not receiving data |
|-----+-------+----------+-----------------------------------|
| SD | Red | On | Modem is transmitting data |
|-----+-------+----------+-----------------------------------|
| SD | Red | Off | Modem is not transmitting data |
|-----+-------+----------+-----------------------------------|
| TR | Red | On | DTR signal is high |
|-----+-------+----------+-----------------------------------|
| TR | Red | Off | DTR signal is low |
|-----+-------+----------+-----------------------------------|
| MR | Red | On | Power is on |
|-----+-------+----------+-----------------------------------|
| MR | Red | Off | Power is off |
+------------------------------------------------------------+
Proprietary AT Command Set
See document V1788 for a full command summary.
