# MOTOROLA, INC.
VANGUARD 300
Card Type Frame relay adapter, Ethernet router
Processor Motorola 68360
Processor Speed Unidentified
Chip Set Unidentified
Maximum Onboard Memory 8MB DRAM/2MB Flash RAM
I/O Options Serial ports (3)
Network Transfer Rate 10Mbps
DSU Transfer Rate 56Kbps
ISDN Transfer Rate 64Kbps x 2
DSU Protocol DDS
ISDN Protocol Unidentified
Switch Type Unidentified
Data Bus External
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
Boot ROM Not available
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| Reset button | BT1 | DECconnect MMJ | CN4 |
| | | connector or ISDN | |
| | | connector (port 4) | |
|---------------------+-------+----------------------+-------|
| Lamp test button | BT2 | V.24 serial port | CN5 |
| | | (port 3) | |
|---------------------+-------+----------------------+-------|
| Header for | CN1 | V.11, V.24, V.35, or | CN6 |
| daughtercard | | V.36 serial port | |
| | | (port 2) | |
|---------------------+-------+----------------------+-------|
| Unshielded twisted | CN2 | 120VAC power | CN7 |
| pair connector | | | |
|---------------------+-------+----------------------+-------|
| AUI transceiver via | CN3 | Power switch | SW3 |
| DB-15 port | | | |
|------------------------------------------------------------|
| Note:When LED4 is on, press the lamp test button to |
| reset it. |
| |
| Port 1 is the daughterboard. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-----------------------------------------+-------+----------|
| » | Port 2 pin 22 used for ring | SW1/1 | Off |
| | indicator | | |
|---+-------------------------------------+-------+----------|
| | Port 2 pin 22 used to enter test | SW1/1 | On |
| | mode in DCE mode, ring indicator | | |
| | in DTE mode | | |
|---+-------------------------------------+-------+----------|
| » | Port 2 pin 25 used for test mode | SW1/2 | Off |
| | indicator | | |
|---+-------------------------------------+-------+----------|
| | Port 2 pin 25 used for test mode | SW1/2 | On |
| | indicator for DCE mode, busy out | | |
| | for DTE mode | | |
|---+-------------------------------------+-------+----------|
| » | Port 3 pin 22 used for ring | SW1/3 | Off |
| | indicator | | |
|---+-------------------------------------+-------+----------|
| | Port 3 pin 22 used to enter test | SW1/3 | On |
| | mode in DCE mode, ring indicator | | |
| | in DTE mode | | |
|---+-------------------------------------+-------+----------|
| » | Port 3 is normal serial port | SW1/4 | Off |
|---+-------------------------------------+-------+----------|
| | Port 3 is the PAD port (forces | SW1/4 | On |
| | serial configuration to 9600bps, | | |
| | no parity, 8 data bits, 1 stop | | |
| | bit) | | |
|---+-------------------------------------+-------+----------|
| » | Factory configured - do not alter | SW1/5 | Off |
|---+-------------------------------------+-------+----------|
| » | Normal operation | SW1/6 | Off |
|---+-------------------------------------+-------+----------|
| | Reset entire configuration to | SW1/6 | On |
| | factory defaults | | |
|------------------------------------------------------------|
| Note:To use SW1/6, power up the adapter, turn SW1/6 |
| on, press the reset button, and turn SW1/9 back off |
| again. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Setting | J1 | J2 | J3 |
|---------------------+------------+------------+------------|
| Unshielded twisted | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 |
| pair | closed | closed | closed |
|---------------------+------------+------------+------------|
| AUI transceiver via | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & 3 |
| DB-15 port | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE (CON’T) |
|------------------------------------------------------------|
| Setting | J4 | J5 | J6 |
|---------------------+------------+------------+------------|
| Unshielded twisted | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 |
| pair | closed | closed | closed |
|---------------------+------------+------------+------------|
| AUI transceiver via | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & 3 |
| DB-15 port | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM |
|------------------------------------------------------------|
| Setting | On Board | S1 |
|-------------------+-------------------+--------------------|
| 4MB | 4MB | None |
|-------------------+-------------------+--------------------|
| 8MB | 4MB | (1) 4MB x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PORT 2 TYPE |
|------------------------------------------------------------|
| Setting | SW2/1 | SW2/2 | SW2/3 | SW2/4 | SW2/5 | SW2/6 |
|----------+--------+--------+-------+-------+-------+-------|
| V.11 DTE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| V.11 DCE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| V.24 DTE | On | On | On | On | On | Off |
|----------+--------+--------+-------+-------+-------+-------|
| V.24 DCE | On | On | On | On | On | Off |
|----------+--------+--------+-------+-------+-------+-------|
| V.35 DTE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| V.35 DCE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| V.36 DTE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| V.36 DCE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| DSU | Off | Off | Off | Off | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PORT 2 TYPE (CON’T) |
|------------------------------------------------------------|
| Setting | SW2/7 | SW2/8 | U1 |
|----------+----------+----------+---------------------------|
| V.11 DTE | On | On | V.11 module in position 1 |
|----------+----------+----------+---------------------------|
| V.11 DCE | On | On | V.11 module in position 2 |
|----------+----------+----------+---------------------------|
| V.24 DTE | Off | Off | V.24 module in position 1 |
|----------+----------+----------+---------------------------|
| V.24 DCE | Off | Off | V.24 module in position 2 |
|----------+----------+----------+---------------------------|
| V.35 DTE | On | On | V.35 module in position 1 |
|----------+----------+----------+---------------------------|
| V.35 DCE | On | On | V.35 module in position 2 |
|----------+----------+----------+---------------------------|
| V.36 DTE | On | On | V.36 module in position 1 |
|----------+----------+----------+---------------------------|
| V.36 DCE | On | On | V.36 module in position 2 |
|----------+----------+----------+---------------------------|
| DSU | On | On | DSU module in position 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) (RESET AND POWER-UP) |
|------------------------------------------------------------|
| LED1 | LED3 | Condition |
|-----------+-----------+------------------------------------|
| Blinking | Off | Adapter is loading software into |
| | | DRAM from flash RAM |
|-----------+-----------+------------------------------------|
| Off | Blinking | Adapter is performing self-test |
|-----------+-----------+------------------------------------|
| Off | Off | Adapter is initializing |
| | | configuration |
|-----------+-----------+------------------------------------|
| On | Off | Adapter is ready |
|-----------+-----------+------------------------------------|
| Off | On | Self-test failed |
|------------------------------------------------------------|
| Note:On reset or power-up, the LEDs should go |
| through, in order, the first four actions shown |
| above. If the adapter proceeds immediately to the |
| fourth action, the code in the firmware is invalid. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+--------+----------+--------------------------------|
| LED1 | Green | On | Software is running |
|-------+--------+----------+--------------------------------|
| LED1 | Green | Off | Software not running |
|-------+--------+----------+--------------------------------|
| LED1 | Green | Blinking | Software is downloading or |
| | | | card is booting |
|-------+--------+----------+--------------------------------|
| LED2 | Green | On | Power is on |
|-------+--------+----------+--------------------------------|
| LED2 | Green | Off | Power is off |
|-------+--------+----------+--------------------------------|
| LED3 | Red | On | Test failed |
|-------+--------+----------+--------------------------------|
| LED3 | Red | Off | No test in progress or test |
| | | | passed |
|-------+--------+----------+--------------------------------|
| LED3 | Red | Blinking | Test in progress |
|-------+--------+----------+--------------------------------|
| LED4 | Red | On | Processor did not reset timer |
| | | | in set time |
|-------+--------+----------+--------------------------------|
| LED4 | Red | Off | Normal operation |
|-------+--------+----------+--------------------------------|
| LED5 | Yellow | On | Card is transmitting MARK |
| | | | signal to port 1 |
|-------+--------+----------+--------------------------------|
| LED5 | Yellow | Off | Card is transmitting SPACE |
| | | | signal to port 1 |
|-------+--------+----------+--------------------------------|
| LED6 | Yellow | On | Card is receiving MARK signal |
| | | | from port 1 |
|-------+--------+----------+--------------------------------|
| LED6 | Yellow | Off | Card is receiving SPACE signal |
| | | | from port 1 |
|-------+--------+----------+--------------------------------|
| LED7 | Yellow | On | Card is transmitting MARK |
| | | | signal to port 2 |
|-------+--------+----------+--------------------------------|
| LED7 | Yellow | Off | Card is transmitting SPACE |
| | | | signal to port 2 |
|-------+--------+----------+--------------------------------|
| LED8 | Yellow | On | Card is receiving MARK signal |
| | | | from port 2 |
|-------+--------+----------+--------------------------------|
| LED8 | Yellow | Off | Card is receiving SPACE signal |
| | | | from port 2 |
|-------+--------+----------+--------------------------------|
| LED9 | Yellow | On | Card is transmitting MARK |
| | | | signal to port 3 |
|-------+--------+----------+--------------------------------|
| LED9 | Yellow | Off | Card is transmitting SPACE |
| | | | signal to port 3 |
|-------+--------+----------+--------------------------------|
| LED10 | Yellow | On | Card is receiving MARK signal |
| | | | from port 3 |
|-------+--------+----------+--------------------------------|
| LED10 | Yellow | Off | Card is receiving SPACE signal |
| | | | from port 3 |
|-------+--------+----------+--------------------------------|
| LED11 | Yellow | On | Card is transmitting MARK |
| | | | signal to port 4 |
|-------+--------+----------+--------------------------------|
| LED11 | Yellow | Off | Card is transmitting SPACE |
| | | | signal to port 4 |
|-------+--------+----------+--------------------------------|
| LED12 | Yellow | On | Card is receiving MARK signal |
| | | | from port 4 |
|-------+--------+----------+--------------------------------|
| LED12 | Yellow | Off | Card is receiving SPACE signal |
| | | | from port 4 |
|-------+--------+----------+--------------------------------|
| LED13 | Yellow | On | Card is transmitting MARK |
| | | | signal to network |
|-------+--------+----------+--------------------------------|
| LED13 | Yellow | Off | Card is transmitting SPACE |
| | | | signal to network |
|-------+--------+----------+--------------------------------|
| LED14 | Yellow | On | Card is receiving MARK signal |
| | | | from network |
|-------+--------+----------+--------------------------------|
| LED14 | Yellow | Off | Card is receiving SPACE signal |
| | | | from network |
+------------------------------------------------------------+
Card Type Serial
I/O Options Serial port

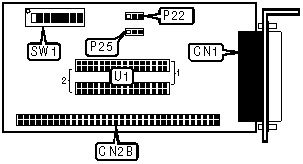

IMG IMG 2
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| V.11 V.24, V.35, | CN1 | Header to main board | CN2B |
| V.36, or DSU port | | (on both front and | |
| | | back of card) | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|----------------------------------------+-------+-----------|
| » | Pin 22 used for ring indicator | P22 | Pins 2 & |
| | | | 3 closed |
|---+------------------------------------+-------+-----------|
| | Pin 22 used to enter test mode | P22 | Pins 1 & |
| | in DCE mode, ring indicator in | | 2 closed |
| | DTE mode | | |
|---+------------------------------------+-------+-----------|
| » | Pin 25 used for test mode | P25 | Pins 1 & |
| | indicator | | 2 closed |
|---+------------------------------------+-------+-----------|
| | Pin 25 used for test mode | P25 | Pins 2 & |
| | indicator for DCE mode, busy out | | 3 closed |
| | for DTE mode | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT TYPE |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
|----------+--------+--------+-------+-------+-------+-------|
| V.11 DTE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| V.11 DCE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| V.24 DTE | On | On | On | On | On | Off |
|----------+--------+--------+-------+-------+-------+-------|
| V.24 DCE | On | On | On | On | On | Off |
|----------+--------+--------+-------+-------+-------+-------|
| V.35 DTE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| V.35 DCE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| V.36 DTE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| V.36 DCE | Off | Off | Off | Off | Off | On |
|----------+--------+--------+-------+-------+-------+-------|
| DSU | Off | Off | Off | Off | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT TYPE (CON’T) |
|------------------------------------------------------------|
| Setting | SW1/7 | SW1/8 | U1 |
|----------+----------+----------+---------------------------|
| V.11 DTE | On | On | V.11 module in position 1 |
|----------+----------+----------+---------------------------|
| V.11 DCE | On | On | V.11 module in position 2 |
|----------+----------+----------+---------------------------|
| V.24 DTE | Off | Off | V.24 module in position 1 |
|----------+----------+----------+---------------------------|
| V.24 DCE | Off | Off | V.24 module in position 2 |
|----------+----------+----------+---------------------------|
| V.35 DTE | On | On | V.35 module in position 1 |
|----------+----------+----------+---------------------------|
| V.35 DCE | On | On | V.35 module in position 2 |
|----------+----------+----------+---------------------------|
| V.36 DTE | On | On | V.36 module in position 1 |
|----------+----------+----------+---------------------------|
| V.36 DCE | On | On | V.36 module in position 2 |
|----------+----------+----------+---------------------------|
| DSU | On | On | DSU module in position 1 |
+------------------------------------------------------------+
Card Type ISDN TA
ISDN Transfer Rate 64Kbps x 2
ISDN Protocol Unidentified
Switch Type Unidentified
IMG IMG 3
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------------+--------+--------------+--------|
| Line in/out | CN1 | Line in/out | CN3 |
|---------------------------+--------+--------------+--------|
| Header to main board (on | CN2B | | |
| both front and back of | | | |
| card) | | | |
|------------------------------------------------------------|
| Note:Two connectors are provided so the user can |
| daisy-chain devices on the S/T bus. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|----------------------------------------+-------+-----------|
| » | S/T bus not terminated | SW1 | Off |
|---+------------------------------------+-------+-----------|
| | S/T bus terminated | SW1 | On |
+------------------------------------------------------------+
Card Type ISDN TA
ISDN Transfer Rate 64Kbps x 2
ISDN Protocol Unidentified
Switch Type Unidentified
IMG IMG 4
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------+-------+---------------------------------+-------|
| Line out | CN1 | Header to main board (on both | CN2B |
| | | front and back of card) | |
+------------------------------------------------------------+
VANGUARD 300 (DSU DAUGHTERCARD)
Card Type DDS DSU
DSU Transfer Rate 56Kbps
Modulation Protocol Unidentified
IMG IMG 5
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------+-------+---------------------------------+-------|
| Line out | CN1 | Header to main board (on both | CN2B |
| | | front and back of card) | |
+------------------------------------------------------------+
