# MEDIA VISION TECHNOLOGY, INC.
INTERNATIONAL JAZZ 14.4 MODEM CARD (650-0160-52)
Card Type Modem, Sound card
Chip Set Unidentified
I/O Options IDE interface, wavetable, audio in
Maximum Modem Rate 14.4Kbps
Data Modulation Protocol Unidentified
Error Unidentified
Correction/Compression
Fax Class Unidentified
Data Bus 16-bit ISA

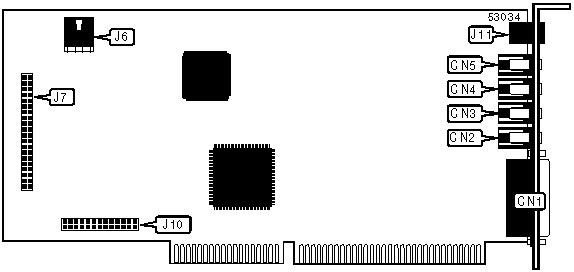

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Game/MIDI port | CN1 | Audio in - CD-ROM | J6 |
|--------------------+---------+----------------------+------|
| Line out | CN2 | IDE connector | J7 |
|--------------------+---------+----------------------+------|
| Speaker | CN3 | Wavetable connector | J10 |
|--------------------+---------+----------------------+------|
| Microphone jack | CN4 | RJ-11 telephone jack | J11 |
|--------------------+---------+----------------------+------|
| Line in | CN5 | | |
+------------------------------------------------------------+
+----------------------------------------------+
| SUPPORTED COMMAND SET |
|----------------------------------------------|
| Note: Supported command set is unidentified. |
+----------------------------------------------+
