# NETCOMM LIMITED
INMODEM 336 (IN3410)
Card Type Modem (asynchronous)
Chipset Unidentified
Maximum Data Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A, 212A
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34
Rockwell V.FC
Fax Modulation ITU-T V.17, V.27ter, V.29
Error MNP5, MNP10EC, V.42, V.42bis
Correction/Compression
Fax Class Class I
Data Bus 8-bit ISA
Card Size Full height, one-third length

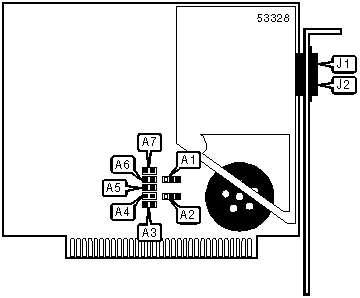

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Telephone line | J1 | Telephone line | J2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | A1 | A2 |
|------------------+--------------------+--------------------|
| 2E8h (COM4:) | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 2F8h (COM2:) | Pins 1 & 2 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 3E8h (COM3:) | Pins 2 & 3 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 3F8h (COM1:) | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| Setting | A3 | A4 | A5 | A6 | A7 |
|----------+---------+---------+---------+---------+---------|
| 2 | Closed | Open | Open | Open | Open |
|----------+---------+---------+---------+---------+---------|
| 3 | Open | Closed | Open | Open | Open |
|----------+---------+---------+---------+---------+---------|
| 4 | Open | Open | Closed | Open | Open |
|----------+---------+---------+---------+---------+---------|
| 5 | Open | Open | Open | Closed | Open |
|----------+---------+---------+---------+---------+---------|
| 7 | Open | Open | Open | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED STANDARD COMMANDS |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| +++, A/ |
|------------------------------------------------------------|
| A, B, D, E, H, L, M, N, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &K, &Q, &R, &S, &V, &W, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \G, \K, \L, \N, \V |
|------------------------------------------------------------|
| %C, %E, %L, %Q |
|------------------------------------------------------------|
| Special AT Commands |
|------------------------------------------------------------|
| :E, *H, -K, )M, @M, +MS, -Q |
|------------------------------------------------------------|
| S-Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S18, S24, S25, S29, S30, S32, S33, S38 |
|------------------------------------------------------------|
| S48, S82, S86, S95 |
|------------------------------------------------------------|
| Note: See MHI help file for complete information. |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| CALLING TONE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls which calling tone the modem will |
| | send a originating a call. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| #C0 | Calling tone disabled. |
|--------------+---------------------------------------------|
| #C1 | 1300Hz calling tone enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#>;[cmds] |
|--------------+---------------------------------------------|
| Description: | Dials the telephone number indicated |
| | according to modifiers included in the |
| | string. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| DJ | MNP10 link will be negotiated at 1200bps |
| | for this call. |
|--------------+---------------------------------------------|
| DK | MNP10 power level adjustment enabled for |
| | this call. |
|--------------+---------------------------------------------|
| DL | Re-dial last number. |
|--------------+---------------------------------------------|
| DP | Pulse dialing enabled. |
|--------------+---------------------------------------------|
| DS=n | Dial stored telephone number n. |
|--------------+---------------------------------------------|
| DT | Tone dialing enabled. |
|--------------+---------------------------------------------|
| DW | Dialing resumed following dial tone |
| | detection. |
|--------------+---------------------------------------------|
| D, | Dialing paused for amount of time specified |
| | in S8 register. |
|--------------+---------------------------------------------|
| D! | Flash function initiated. Modem commanded |
| | to go off-hook for specified time before |
| | returning on-hook. |
|--------------+---------------------------------------------|
| D@ | Wait for Quiet Answer function enabled. |
| | Modem waits until a "quiet answer," a |
| | ring-back signal followed by silence up to |
| | the time specified in S7, is received prior |
| | to executing the rest of the dial string. |
|--------------+---------------------------------------------|
| D^ | Calling tone disabled for this call. |
|--------------+---------------------------------------------|
| D; | Modem returned to idle state after dialing. |
| | The semicolon can only be placed at the end |
| | of the dial command. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY CONFIGURATION AND STATISTICS |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \S [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays the settings of all commands and |
| | statistics about the current connection. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested about the |
| | modem. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Displays product identification code. |
|--------------+---------------------------------------------|
| I1 | Displays ROM checksum. |
|--------------+---------------------------------------------|
| I2 | Tests and reports ROM checksum. |
|--------------+---------------------------------------------|
| I3 | Displays firmware revision. |
|--------------+---------------------------------------------|
| I4 | Displays feature bitmap. |
|--------------+---------------------------------------------|
| I9 | Displays product information and revision |
| | level. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISTINCTIVE RING |
|------------------------------------------------------------|
| Format: | AT [cmds] -SDR=n [cmds] |
|----------------+-------------------------------------------|
| Default: | 0 |
|----------------+-------------------------------------------|
| Range: | 0 - 7 |
|----------------+-------------------------------------------|
| Description: | Selects which distinctive ring signals |
| | the modem will respond to and how it will |
| | respond. |
|------------------------------------------------------------|
| Bit | Value | Function |
|---------+--------+-----------------------------------------|
| 0 | í 0 | Respond to ring type 1 as RING. |
| | | |
| | 1 | Respond to ring type 1 as RING1. |
|------------------------------------------------------------|
| 1 | í 0 | Respond to ring type 2 as RING. |
| | | |
| | 1 | Respond to ring type 2 as RING2. |
|-------------+------+---------------------------------------|
| 2 | í 0 | Respond to ring type 3 as RING. |
| | | |
| | 1 | Respond to ring type 3 as RING3. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MNP10EC MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] -SEC=m,n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects whether the modem will attempt to |
| | use MNP10EC mode during the handshaking |
| | sequence. |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| m=0 | MNP10EC handshaking disabled unless a V.34 |
| | connection is attempted via a cellular |
| | line. |
|---------------+--------------------------------------------|
| í m=1 | MNP10EC handshaking enabled. |
|---------------+--------------------------------------------|
| n | Default: | 10 |
|---------------+----------------+---------------------------|
| | Range: | 10 - 30 |
|---------------+----------------+---------------------------|
| | Unit: | -1 dBm |
|---------------+----------------+---------------------------|
| | Description: | Sets the power level for |
| | | transmission in MNP10EC |
| | | mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PROTOCOL/SPEED |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Fn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the protocol and speed the modem |
| | will attempt to connect at. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| F0 | Auto-detect the highest common connect |
| | speed. |
|--------------+---------------------------------------------|
| F1 | Select V.21 or Bell 103 at 300bps speed. |
|--------------+---------------------------------------------|
| F3 | Select V.23 at 75/1200bps speed. |
|--------------+---------------------------------------------|
| F4 | Select V.22 or Bell 212A at 1200bps speed. |
|--------------+---------------------------------------------|
| F5 | Select V.22bis at 2400bps speed. |
|--------------+---------------------------------------------|
| F6 | Select V.32 or V.32bis at 4800bps speed. |
|--------------+---------------------------------------------|
| F7 | Select V.32bis at 7200bps speed. |
|--------------+---------------------------------------------|
| F8 | Select V.32bis or V.32 at 9600bps speed. |
|--------------+---------------------------------------------|
| F9 | Select V.32bis at 12Kbps speed. |
|--------------+---------------------------------------------|
| F10 | Select V.32bis at 14.4Kbps speed. |
+------------------------------------------------------------+
