# MAGICXPRESS
MX33VX - R
Card Type Modem/Fax card
Chip Set Unidentified
I/O Options Line out, phone in, serial port, power
jack, microphone in,
speaker out
Maximum Modem Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A/212A
Protocol
ITU-T V34, V.32bis, V.32, V.22bis,
V.23, V.22, V.21, Rockwell V.FC
Fax Modulation ITU-T V.17, V.27ter, V.29, T.4, T.30
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Class I
Data Bus External

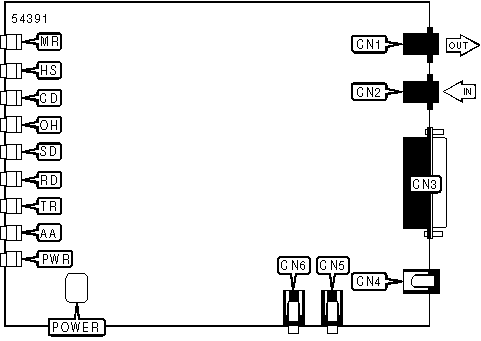

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line out | CN1 | Power jack | CN4 |
|---------------------------+---------+---------------+------|
| Phone in | CN2 | Microphone in | CN5 |
|---------------------------+---------+---------------+------|
| Serial port | CN3 | Speaker out | CN6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+----------------+----------+--------------------------|
| PWR | Unidentified | On | Power is on |
|-----+----------------+----------+--------------------------|
| PWR | Unidentified | Off | Power is off |
|-----+----------------+----------+--------------------------|
| AA | Unidentified | On | Auto-answer mode enabled |
|-----+----------------+----------+--------------------------|
| AA | Unidentified | Off | Auto-answer mode |
| | | | disabled |
|-----+----------------+----------+--------------------------|
| TR | Unidentified | On | DTR signal is high |
|-----+----------------+----------+--------------------------|
| TR | Unidentified | Off | DTR signal is low |
|-----+----------------+----------+--------------------------|
| RD | Unidentified | Blinking | Modem is receiving data |
|-----+----------------+----------+--------------------------|
| RD | Unidentified | Off | Modem is not receiving |
| | | | data |
|-----+----------------+----------+--------------------------|
| SD | Unidentified | Blinking | Modem transmitting data |
|-----+----------------+----------+--------------------------|
| SD | Unidentified | Off | Modem not transmitting |
| | | | data |
|-----+----------------+----------+--------------------------|
| OH | Unidentified | On | Modem is off-hook |
|-----+----------------+----------+--------------------------|
| OH | Unidentified | Off | Modem is on-hook |
|-----+----------------+----------+--------------------------|
| CD | Unidentified | On | Carrier signal detected |
|-----+----------------+----------+--------------------------|
| CD | Unidentified | Off | Carrier signal not |
| | | | detected |
|-----+----------------+----------+--------------------------|
| HS | Unidentified | On | Modem is operating at |
| | | | 24Kbps or higher |
|-----+----------------+----------+--------------------------|
| HS | Unidentified | Off | Modem is not operating |
| | | | at 24Kbps or higher |
|-----+----------------+----------+--------------------------|
| MR | Unidentified | On | Modem is receiving power |
|-----+----------------+----------+--------------------------|
| MR | Unidentified | Blinking | Modem is in self-test |
| | | | mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, ‘+++’, A/ |
|------------------------------------------------------------|
| A, B, C, E, H, M, O, P, Q, T, V, X, Y, Z |
|------------------------------------------------------------|
| &C, &P, &R, &T, &V, &W, &X, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \G |
|------------------------------------------------------------|
| %C, %L, %Q |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S21, S24, S25, S27, S29, |
|------------------------------------------------------------|
| S30, S31, S32, S33, S38, S91, S92, S95 |
|------------------------------------------------------------|
| |
|------------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+------------------------------------------------------------+
Proprietary AT Command Set
For a full command summary, see MAGICXPRESS MX33V - R.
