# MOTOROLA, INC.
LIFESTYLE 33.6K
Card Type Modem (asynchronous)
Chip Set Unidentified
Maximum Modem Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Protocol Bell 103/212A
ITU-T V.34, V.32bis, V.32, V.23, V.21
Fax Modulation Protocol ITU-T V.17, V.29, V.27ter, V.21 CH 2
Error V.42, V.42bis, MNP5
Correction/Compression
Fax Class Class I & II
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

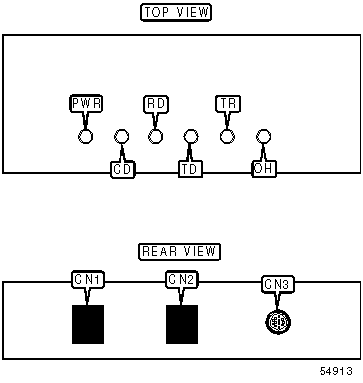

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line in | CN1 | Computer connector | CN3 |
|---------------------+----------+--------------------+------|
| Line out | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+--------+------------------------------|
| RD | Unidentified | On | Computer is receiving data |
|-----+--------------+--------+------------------------------|
| RD | Unidentified | Off | Computer is not receiving |
| | | | data |
|-----+--------------+--------+------------------------------|
| TD | Unidentified | On | Computer is transmitting |
| | | | data |
|-----+--------------+--------+------------------------------|
| TD | Unidentified | Off | Computer is not transmitting |
| | | | data |
|-----+--------------+--------+------------------------------|
| CD | Unidentified | On | Carrier signal detected |
|-----+--------------+--------+------------------------------|
| CD | Unidentified | Off | Carrier signal not detected |
|-----+--------------+--------+------------------------------|
| OH | Unidentified | On | Modem is off-hook |
|-----+--------------+--------+------------------------------|
| OH | Unidentified | Off | Modem is on-hook |
|-----+--------------+--------+------------------------------|
| TR | Unidentified | On | DTR signal is high |
|-----+--------------+--------+------------------------------|
| TR | Unidentified | Off | DTR signal is low |
|-----+--------------+--------+------------------------------|
| PWR | Unidentified | On | Power is on |
|-----+--------------+--------+------------------------------|
| PWR | Unidentified | Off | Power is off |
+------------------------------------------------------------+
+---------------------------------------------------------+
| SUPPORTED COMMAND SET |
|---------------------------------------------------------|
| Basic AT Commands |
|---------------------------------------------------------|
| AT, ‘+++’, A/ |
|---------------------------------------------------------|
| A, E, F, H, Q, V, Z |
|---------------------------------------------------------|
| &C, &F, &G, &V, &Z |
|---------------------------------------------------------|
| Extended AT Commands |
|---------------------------------------------------------|
| \T, \V |
|---------------------------------------------------------|
| S Registers |
|---------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12 |
|---------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+---------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-MODE DETECTION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects various options for the automatic |
| | detection and negotiation of protocols |
| | during the handshake process if the modem |
| | is communicating with a remote modem of |
| | dissimilar speed. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| N0 | Negotiate handshake only at speed specified |
| | in S37 and standard set by B |
|--------------+---------------------------------------------|
| í N1 | Negotiate handshake only at speed specified |
| | in S37 and standard set by B with fallback |
| | to lower speed allowed. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUXILIARY RELAY |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Jn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the auxilliary relay |
|--------------+---------------------------------------------|
| Command | Jack Type |
|--------------+---------------------------------------------|
| í &J0 | Never closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMMUNICATION PROTOCOLS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Bn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the communication protocol for data |
| | calls |
|------------------------------------------------------------|
| Note: The B command allows the simultaneous selection |
| of more than one suffix, enabling multiple protocols. |
|------------------------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| B0 | ITU-T V.22 at 300 or 1200bps |
|--------------+---------------------------------------------|
| B1 | Bell 212A at 300 or 1200bps |
|--------------+---------------------------------------------|
| B2 | Disable V.23 reverse channel |
|--------------+---------------------------------------------|
| B3 | Disable V.23 reverse channel |
|--------------+---------------------------------------------|
| B15 | V.21 at 300bps |
|--------------+---------------------------------------------|
| B16 | Bell 103J at 300bps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMMUNICATIONS MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Qn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects communications mode options |
|--------------+---------------------------------------------|
| Command | Mode |
|--------------+---------------------------------------------|
| í &Q0 | Asynchronous mode, buffered |
|--------------+---------------------------------------------|
| &Q1 | Reserved |
|--------------+---------------------------------------------|
| &Q2 | Reserved |
|--------------+---------------------------------------------|
| &Q3 | Reserved |
|--------------+---------------------------------------------|
| &Q4 | Reserved |
|--------------+---------------------------------------------|
| &Q5 | Error correction mode, buffered |
|--------------+---------------------------------------------|
| &Q6 | Buffered asynchronous mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA SET READY (DSR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DSR options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &S0 | DSR forced high |
|--------------+---------------------------------------------|
| í &S1 | DSR high only while modem is handshaking or |
| | connected |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA TERMINAL READY (DTR) |
|------------------------------------------------------------|
| Type: | Configuration |
|---------------+--------------------------------------------|
| Format: | AT [cmds] &Dn [cmds] |
|---------------+--------------------------------------------|
| Description: | Selects modem response to DTR |
|------------------------------------------------------------|
| Note: The action each variant of &D causes depends on |
| the setting of &Q |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| í &D0 | Modem does not respond to DTR |
|---------------+--------------------------------------------|
| &D1 | Modem goes to command mode after DTR goes |
| | is off |
|---------------+--------------------------------------------|
| &D2 | Modem goes to command mode and disconnects |
| | (hangs up) after DTR goes off; Auto-Answer |
| | is disabled. |
|---------------+--------------------------------------------|
| &D3 | Modem is initialized after DTR goes off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
|--------------+---------------------------------------------|
| Note: | Any combination of modifiers can be used to |
| | produce the desired dial functions in |
| | sequence. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| DL | Re-dial last number |
|--------------+---------------------------------------------|
| DP | Pulse dialing enabled |
|--------------+---------------------------------------------|
| DS=n | Dial stored telephone number n |
|--------------+---------------------------------------------|
| DT | Tone dialing enabled/Pulse dialing disabled |
|--------------+---------------------------------------------|
| DW | Dialing resumed following dial tone |
| | detection |
|--------------+---------------------------------------------|
| D, | Dialing paused for amount of time specified |
| | in S8 register |
|--------------+---------------------------------------------|
| D! | Flash function initiated. Modem commanded |
| | to go off-hook for specified time before |
| | returning on-hook. |
|--------------+---------------------------------------------|
| D@ | Wait for Quite Answer function enabled. |
| | Modem waits until a "quiet answer," a |
| | ring-back signal followed by silence up to |
| | the time specified in S7, is received prior |
| | to executing the rest of the dial string. |
|--------------+---------------------------------------------|
| D^ | Disable data calling tone transmission |
|--------------+---------------------------------------------|
| D; | Modem returned to idle state after dialing. |
| | The semicolon can only be placed at the end |
| | of the dial command. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ECHOPLEX VALIDITY |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Fn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects whether commands sent while in data |
| | mode are echoed |
|------------------------------------------------------------|
| Note: This command is only supported on older modems |
|------------------------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í F1 | Echoplex disabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables flow control options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &K0 | Flow control disabled |
|--------------+---------------------------------------------|
| &K1 | Reserved |
|--------------+---------------------------------------------|
| &K2 | Reserved |
|--------------+---------------------------------------------|
| í &K3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| &K4 | XON/XOFF flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LONG SPACE DISCONNECT |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Yn [cmds] |
|--------------+---------------------------------------------|
| Description: | Commands the modem to disconnect after a |
| | 1.6 second break is detected |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í Y0 | Long space disconnect function disabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ON-LINE |
|------------------------------------------------------------|
| Type: | Immediate |
|---------------+--------------------------------------------|
| Format: | AT [cmds] On [cmds] |
|---------------+--------------------------------------------|
| Description: | Controls on-line command (data |
| | transmission) state options. |
|------------------------------------------------------------|
| Note: The O command must be placed at the end of the |
| command string. |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| O0 | On-line command mode with no retraining |
| | enabled |
|---------------+--------------------------------------------|
| O1 | On-line command mode with retraining |
| | enabled |
|---------------+--------------------------------------------|
| O3 | Renegotiate rate before returning to data |
| | mode after escape for command entry |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports default speed and controller |
| | firmware revision number |
|--------------+---------------------------------------------|
| I1 | Reports ROM checksum |
|--------------+---------------------------------------------|
| I2 | Perform checksum and reports OK or ERROR |
|--------------+---------------------------------------------|
| I3 | Reports default speed and controller |
| | firmware revision number |
|--------------+---------------------------------------------|
| I4 | Reports firmware revision number |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RESTORE PROFILE ON POWER-UP |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Yn [cmds] |
|--------------+---------------------------------------------|
| Description: | Restores a selected profile into the active |
| | profile on power-up (hard reset) |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &Y0 | Restore profile 0 on power-up |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SELECT CALL PROGRESS RESULT CODES |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Xn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables selection of tone detection and |
| | associated result code format options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| X0 | Busy and dial tone detection disabled; |
| | result codes 0 - 4 enabled. |
|--------------+---------------------------------------------|
| X1 | Busy and dial tone detection disabled; |
| | result codes 0 - 5 & 10 enabled. |
|--------------+---------------------------------------------|
| X2 | Busy tone detection disabled, dial tone |
| | detection enabled; result codes 0 - 6 & 10 |
| | enabled. |
|--------------+---------------------------------------------|
| X3 | Busy tone detection enabled, dial tone |
| | detection disabled; result codes 0 - 5, 7 & |
| | 10 enabled. |
|--------------+---------------------------------------------|
| í X4 | Busy and dial tone detection enabled; |
| | result codes 0 - 7 & 10 enabled. |
|--------------+---------------------------------------------|
| X5 | Busy and dial tone detection enabled; |
| | result codes 0 - 7 & 10 enabled. |
|--------------+---------------------------------------------|
| X6 | Busy and dial tone detection enabled; |
| | result codes 0 - 7 & 10 enabled. |
|--------------+---------------------------------------------|
| X7 | Connect for all speeds, wait for dial tone, |
| | check for busy signal after dialing |
+------------------------------------------------------------+
+------------------------------------------------------------+
| STORE ACTIVE PROFILE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Wn [cmds] |
|--------------+---------------------------------------------|
| Description: | Writes the values for the active profile |
| | into the non-volatile RAM |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &W0 | Write the active profile to stored profile |
| | 0 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Tn |
|--------------+---------------------------------------------|
| Description: | Selects test options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &T0 | End current test |
|--------------+---------------------------------------------|
| &T1 | Begin local analog loopback test |
|--------------+---------------------------------------------|
| &T3 | Begin local digital loopback |
|--------------+---------------------------------------------|
| &T6 | Grant remote digital loopback request |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMIT CARRIER |
|------------------------------------------------------------|
| Type: | Configuration |
|---------------+--------------------------------------------|
| Format: | AT [cmds] Cn [cmds] |
|---------------+--------------------------------------------|
| Description: | Controls the transmit carrier switching |
|------------------------------------------------------------|
| Note: Disabling the transmit carrier puts the modem |
| in receive-only mode |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| í C1 | Transmit carrier enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.32 - AUTO-RETRAIN |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Bn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls auto-retrain function if poor line |
| | quality is detected |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &B1 | Auto-retrain enabled if line quality is |
| | poor |
+------------------------------------------------------------+
EXTENDED AT COMMANDS
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|-------------------+----------------------------------------|
| Format: | AT [cmds] \Kn [cmds] |
|-------------------+----------------------------------------|
| Description: | Configures action of break signal |
|------------------------------------------------------------|
| Command | Function |
|------------+-----------------------------------------------|
| \K5 | Non-destructive/non-expedited break |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUFFER MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Jn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the buffer mode |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \J0 | Buffer mode enabled, error control selected |
| | by /Nn |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CALLING TONE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] -Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the calling tone |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| -C0 | Calling tone disabled |
|--------------+---------------------------------------------|
| -C1 | Calling tone enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %C0 | Data compression disabled |
|--------------+---------------------------------------------|
| %C1 | V.42bis MNP5 enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the type of connection the modem |
| | will operate in |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \N0 | Normal mode enabled |
|--------------+---------------------------------------------|
| \N1 | Direct mode enabled |
|--------------+---------------------------------------------|
| \N2 | Reliable mode enabled |
|--------------+---------------------------------------------|
| \N3 | Auto-reliable mode enabled |
|--------------+---------------------------------------------|
| \N4 | V.42 reliable mode enabled |
|--------------+---------------------------------------------|
| \N5 | Auto-reliable mode enabled |
|--------------+---------------------------------------------|
| \N7 | Auto-reliable mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem port flow control |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \G0 | Command is included for compatibility only; |
| | it performs no function |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Qn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets type of flow control used by modem |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \Q0 | Flow control disabled |
|--------------+---------------------------------------------|
| \Q1 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| \Q3 | RTS/CTS flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| XON/XOFF PASS-THROUGH |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Xn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects whether XON/XOFF signals are sent |
| | to remote modem |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \X0 | XON/XOFF signals trapped by local modem |
+------------------------------------------------------------+
S(status) -REGISTERS
+------------------------------------------------------------+
| AUTO-RATE AND RETRAIN SELECTION |
|------------------------------------------------------------|
| Format | AT [cmds] S42=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 1 |
|--------------+---------------------------------------------|
| Range: | 0-1 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls the V.32bis and V.22bis auto |
| | rate/V.32 retrain operation |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S28 |
|------------------------------------------------------------|
| Format | AT [cmds] S28=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 1 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls V.34 modulation. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CALLING TONE |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S35=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 1 |
|--------------+---------------------------------------------|
| Range: | 0-1 |
|--------------+---------------------------------------------|
| Description: | Sets the data calling tone |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DCE LINE SPEED |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S37=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum allowable data exchange |
| | rate attempted during handshake process. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í S37=0 | Maximum modem speed |
|--------------+---------------------------------------------|
| S37=2 | 1200/75bps |
|--------------+---------------------------------------------|
| S37=3 | 300bps |
|--------------+---------------------------------------------|
| S37=5 | 1200bps |
|--------------+---------------------------------------------|
| S37=6 | 2400bps |
|--------------+---------------------------------------------|
| S37=7 | 4800bps |
|--------------+---------------------------------------------|
| S37=8 | 7200bps |
|--------------+---------------------------------------------|
| S37=9 | 9600bps |
|--------------+---------------------------------------------|
| S37=10 | 12000bps |
|--------------+---------------------------------------------|
| S37=11 | 14400bps |
|--------------+---------------------------------------------|
| S37=12 | 16800bps |
|--------------+---------------------------------------------|
| S37=13 | 19200bps |
|--------------+---------------------------------------------|
| S37=14 | 21600bps |
|--------------+---------------------------------------------|
| S37=15 | 24000bps |
|--------------+---------------------------------------------|
| S37=16 | 26400bps |
|--------------+---------------------------------------------|
| S37=17 | 28800bps |
|--------------+---------------------------------------------|
| S37=18 | 31200bps |
|--------------+---------------------------------------------|
| S37=19 | 33600bps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DEBUGGING |
|------------------------------------------------------------|
| Type: | Register |
|------------------------------------------------------------|
| Format: | AT [cmds] S43=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 1 |
|--------------+---------------------------------------------|
| Range: | 0-1 |
|--------------+---------------------------------------------|
| Description: | Controls the auto modem for debugging only |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SLEEP MODE TIMER |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S89=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 10 |
|--------------+---------------------------------------------|
| Range: | 0, 5-255 |
|--------------+---------------------------------------------|
| Description: | Controls the sleep mode timer |
+------------------------------------------------------------+
