# MOTOROLA, INC.
VANGUARD 312 PLUS (VER. 2)
Card Type Ethernet ISDN Router
Chip Set Unidentified
Maximum Onboard Memory 4MB DRAM
Network Transfer Rate 10Mbps
Wiring Type Unshielded twisted pair
I/O Options Power, UTP Ethernet interface via RJ-45
connector, 9-pin serial port
ISDN interface (ST or U) via RJ-45
connector,
telephone line interface via RJ-11
connectors (2)
ISDN Data Rate 64Kbps x 2
ISDN Modulation Unidentified
Protocol
Error Unidentified
Correction/Compression
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

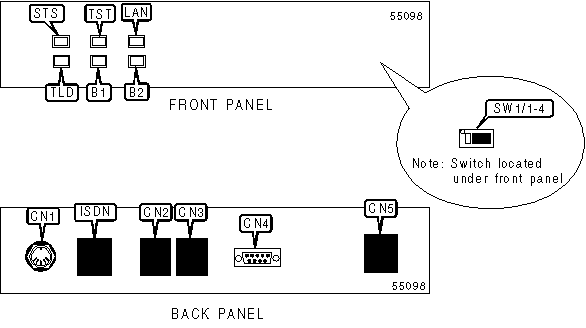

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| DC power connector | CN1 | 9-pin data port | CN4 |
| | | connector | |
|----------------------+-------+---------------------+-------|
| Phone line 1 (RJ-11) | CN2 | 10 BaseT interface | CN5 |
| | | (RJ-45) | |
|----------------------+-------+---------------------+-------|
| Phone line 2 (RJ-11) | CN3 | ISDN interface | ISDN |
| | | (RJ-45) | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ISDN S/T TERMINATION |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
|----------------------------+-------+-------+-------+-------|
| Termination disabled | On | On | On | On |
|----------------------------+-------+-------+-------+-------|
| 100Ohm resistance enabled | Off | Off | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+----------------+----------+------------------------|
| STS | Green | On | Software running |
|-------+----------------+----------+------------------------|
| STS | Green | Off | Software not running; |
| | | | an error has occurred |
|-------+----------------+----------+------------------------|
| STS | Green | Blinking | Software is being |
| | | | loaded |
|-------+----------------+----------+------------------------|
| TST | Unidentified | On | Diagnostic test(s) |
| | | | failed |
|-------+----------------+----------+------------------------|
| TST | Unidentified | Off | Device is not |
| | | | conducting a test |
|-------+----------------+----------+------------------------|
| TST | Unidentified | Blinking | Device is conducting a |
| | | | test |
|-------+----------------+----------+------------------------|
| LAN | Unidentified | Blinking | Data is being |
| | | | transmitted/received |
| | | | on Ethernet interface |
|-------+----------------+----------+------------------------|
| LAN | Unidentified | Off | Data is not being |
| | | | transmitted/received |
| | | | on Ethernet interface |
|-------+----------------+----------+------------------------|
| TLD | Unidentified | On | Telco/D channel is |
| | | | active |
|-------+----------------+----------+------------------------|
| TLD | Unidentified | Off | Telco/D channel is |
| | | | inactive |
|-------+----------------+----------+------------------------|
| B1 | Unidentified | On | B-channel 1 data call |
| | | | connected |
|-------+----------------+----------+------------------------|
| B1 | Unidentified | Blinking | B-channel 1 attached |
| | | | device off hook or |
| | | | dialing |
|-------+----------------+----------+------------------------|
| B1 | Unidentified | Off | No activity on |
| | | | B-channel 1 |
|-------+----------------+----------+------------------------|
| B2 | Unidentified | On | B-channel 2 data call |
| | | | connected |
|-------+----------------+----------+------------------------|
| B2 | Unidentified | Blinking | B-channel 2 attached |
| | | | device off hook or |
| | | | dialing |
|-------+----------------+----------+------------------------|
| B2 | Unidentified | Off | No activity on |
| | | | B-channel 2 |
+------------------------------------------------------------+
