# NETGEAR, INC.
XM128 ISDN
Card Type ISDN Modem
Chip Set Unidentified
I/O Options 25-pin serial port, ISDN interface via
RJ-45 connector (U or S/T), power
analog telephone line out (2)
ISDN Data Rate 128Kbps
ISDN Modulation PPP, MLPPP, BACP, X.75, V.110, V.120
Protocol
Error V.42bis
Correction/Compression
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

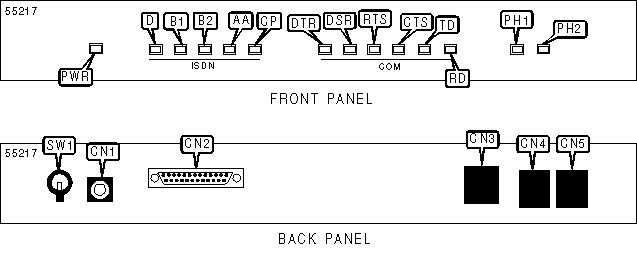

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Power | CN1 | Telephone line 1 | CN4 |
|-------------------------+---------+------------------+-----|
| 25-pin serial port | CN2 | Telephone line 2 | CN5 |
|-------------------------+---------+------------------+-----|
| ISDN interface (RJ-45) | CN3 | Power switch | SW1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+------------+-----------+---------------------------|
| PWR | Yellow | On | Power is on |
|-------+------------+-----------+---------------------------|
| PWR | Yellow | Off | Power is off |
|-------+------------+-----------+---------------------------|
| DCH | Green | On | ISDN link on D channel is |
| | | | active |
|-------+------------+-----------+---------------------------|
| DCH | Green | Blinking | D channel connection is |
| | | | being established |
|-------+------------+-----------+---------------------------|
| DCH | Green | Off | ISDN link on D channel is |
| | | | inactive |
|-------+------------+-----------+---------------------------|
| B1 | Green | On | Connection is established |
| | | | on B-channel 1 |
|-------+------------+-----------+---------------------------|
| B1 | Green | Off | Connection is broken on |
| | | | B-channel 1 |
|-------+------------+-----------+---------------------------|
| B2 | Green | On | Connection is established |
| | | | B-channel 2 |
|-------+------------+-----------+---------------------------|
| B2 | Green | Off | Connection is broken on |
| | | | B-channel 2 |
|-------+------------+-----------+---------------------------|
| AA | Green | On | Automatic answer mode is |
| | | | enabled |
|-------+------------+-----------+---------------------------|
| AA | Green | Off | Automatic answer mode is |
| | | | disabled |
|-------+------------+-----------+---------------------------|
| CP | Green | On | Data compression is |
| | | | active on B-channel |
|-------+------------+-----------+---------------------------|
| CP | Green | Blinking | Incoming call is ringing |
|-------+------------+-----------+---------------------------|
| CP | Green | Off | Data compression is not |
| | | | active on B-channel |
|-------+----------------------------------------------------|
| DTR | Green | On | Terminal/computer ready for |
| | | | operation |
|-------+--------+---------+---------------------------------|
| DTR | Green | Off | Terminal/computer not ready for |
| | | | operation |
|-------+--------+---------+---------------------------------|
| DSR | Green | On | Modem is ready for operations |
|-------+--------+---------+---------------------------------|
| DSR | Green | Off | Modem is not ready for |
| | | | operations |
|-------+--------+---------+---------------------------------|
| CTS | Green | On | Modem ready to receive data |
| | | | from DTE |
|-------+--------+---------+---------------------------------|
| CTS | Green | Off | Modem is not ready to receive |
| | | | data from DTE |
|-------+--------+---------+---------------------------------|
| RTS | Green | On | Sending device is enabled |
|-------+--------+---------+---------------------------------|
| RTS | Green | Off | Sending device is disabled |
|-------+--------+---------+---------------------------------|
| TD | Green | On | DTE is transmitting data to the |
| | | | modem |
|-------+--------+---------+---------------------------------|
| TD | Green | Off | DTE is not ransmitting data to |
| | | | the modem |
|-------+--------+---------+---------------------------------|
| RD | Green | On | DTE is receiving data from the |
| | | | modem |
|-------+--------+---------+---------------------------------|
| RD | Green | Off | DTE is not receiving data from |
| | | | to the modem |
|-------+--------+---------+---------------------------------|
| PH1 | Green | On | Telephone line 1 is off-hook |
|-------+--------+---------+---------------------------------|
| PH1 | Green | Off | Telephone line 1 is on-hook |
|-------+--------+---------+---------------------------------|
| PH2 | Green | On | Telephone line 2 is off-hook |
|-------+--------+---------+---------------------------------|
| PH2 | Green | Off | Telephone line 2 is on-hook |
+------------------------------------------------------------+
+---------------------------------------------------------+
| SUPPORTED COMMAND SET |
|---------------------------------------------------------|
| Basic AT Commands |
|---------------------------------------------------------|
| AT, ‘+++’, A/ |
|---------------------------------------------------------|
| A, E, L, M, Q, V |
|---------------------------------------------------------|
| &C, &F, &Z |
|---------------------------------------------------------|
| S Registers |
|---------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S7, S8, S10, S12, S25 |
|---------------------------------------------------------|
| |
|---------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+---------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| ANALOG PHONE PORT |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects analog port during call answering |
|--------------+---------------------------------------------|
| Command | Line Type |
|--------------+---------------------------------------------|
| &L0 | Phone port 1 |
|--------------+---------------------------------------------|
| &L1 | Phone port 2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| B-CHANNEL DATA RATE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &En [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects data rate on B-channel |
|------------------------------------------------------------|
| Command | Function |
|--------------------------+---------------------------------|
| &E0 | 64Kbps |
|--------------------------+---------------------------------|
| &E1 | 56Kbps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUNDLE SELECTION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Jn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects bundle options |
|--------------+---------------------------------------------|
| Command | Jack Type |
|--------------+---------------------------------------------|
| ? &J0 | Bundle connection is disabed |
|--------------+---------------------------------------------|
| &J1 | Bundle connection is enabled in answer mode |
| | only |
|--------------+---------------------------------------------|
| &J2 | Bundle connection is enabled in call mode |
| | only |
|--------------+---------------------------------------------|
| &J3 | Bundle connection enabled in both |
| | directions |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONFIGURATION PROFILES |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &V [cmds] |
|--------------+---------------------------------------------|
| Description: | Views profile settings |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &V0 | View current active settings |
|--------------+---------------------------------------------|
| &V1 | View profile 1 |
|--------------+---------------------------------------------|
| &V2 | View profile 2 |
|--------------+---------------------------------------------|
| &V3 | View profile 3 |
|--------------+---------------------------------------------|
| &V4 | View profile 4 |
|--------------+---------------------------------------------|
| &V5 | View factory default profiles |
|--------------+---------------------------------------------|
| &V6 | Views settings on phone line 1 |
|--------------+---------------------------------------------|
| &V7 | Views settings on phone line 2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables/disables V.42bis data compression |
| | in V.120/X.75 mode |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &K00 | V.42bis disabled |
|--------------+---------------------------------------------|
| &K44 | V.42bis enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA SET READY (DSR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DSR options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &S0 | DSR forced high |
|--------------+---------------------------------------------|
| &S1 | DSR high only while modem is handshaking or |
| | connected |
+------------------------------------------------------------+
+------------------------------------------------------------+
| D-CHANNEL COMMUNICATION PROTOCOLS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Pn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the communication protocol for |
| | D-channel calls |
|--------------+---------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| ? P0 | Northern Telecom proprietary selection |
|--------------+---------------------------------------------|
| P1 | National ISDN 1 (1 SPID) |
|--------------+---------------------------------------------|
| P2 | National ISDN 1 (2 SPID) |
|--------------+---------------------------------------------|
| P4 | AT&T custom piont to point |
|--------------+---------------------------------------------|
| P5 | AT&T custom piont to multipoint (1 SPID) |
|--------------+---------------------------------------------|
| P6 | AT&T custom piont to multipoint (2 SPID) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
|--------------+---------------------------------------------|
| Note: | Any combination of modifiers can be used to |
| | produce the desired dial functions in |
| | sequence. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| DL | Re-dial last number |
|--------------+---------------------------------------------|
| D+ | Second number string prefix. Used for |
| | bundling or MPPP calls |
|--------------+---------------------------------------------|
| DW | Dialing resumed following dial tone |
| | detection |
|--------------+---------------------------------------------|
| D, | Dialing paused for amount of time specified |
| | in S6 register |
|--------------+---------------------------------------------|
| DY0 | Number type unknown |
|--------------+---------------------------------------------|
| DY1 | International number |
|--------------+---------------------------------------------|
| DY2 | National number |
|--------------+---------------------------------------------|
| DY3 | Network specific number |
|--------------+---------------------------------------------|
| DY4 | Subscriber number |
|--------------+---------------------------------------------|
| DY6 | Abbreviated number |
|--------------+---------------------------------------------|
| DZ0 | Type of subaddress, NSAP with AFI=$50, IA5 |
| | characters |
|--------------+---------------------------------------------|
| DZ2 | Type of subaddress, user specified, IA5 |
| | characters |
|--------------+---------------------------------------------|
| DN0 | Numbering plan unknown |
|--------------+---------------------------------------------|
| DN1 | ISDN/Telephony numbering plan (CCITT |
| | E.164/E.163) |
|--------------+---------------------------------------------|
| DN3 | Data numbering plan (CCITT X.121) |
|--------------+---------------------------------------------|
| DN8 | National standard numbering plan |
|--------------+---------------------------------------------|
| DN9 | Private numbering plan |
|--------------+---------------------------------------------|
| D/ | Called pary subaddress delimiters |
|--------------+---------------------------------------------|
| DA | Dials number on telephone line 1 |
|--------------+---------------------------------------------|
| DB | Dials number on telephone line 2 |
|--------------+---------------------------------------------|
| DI | Dials number for ISDN data call |
|--------------+---------------------------------------------|
| DN0=n | User enters USA switches, first phone |
| | number |
|--------------+---------------------------------------------|
| DN1=n | User enters USA switches, second phone |
| | number |
|--------------+---------------------------------------------|
| DSn | Dial stored telephone number n. (n = 0-39) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIALING COMMANDS CALL TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &On [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the call type for conventional |
| | dialing commands |
|--------------+---------------------------------------------|
| Command | Mode |
|--------------+---------------------------------------------|
| &O0 | Analog phone line 2 |
|--------------+---------------------------------------------|
| &O1 | ISDN mode |
|--------------+---------------------------------------------|
| &O2 | Analog phone line 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DTR SIGNAL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Dn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the behavior of the DTR signal. |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| &D0 | DTR forced high. |
|---------------+--------------------------------------------|
| &D1 | Device enters command mode when DTR goes |
| | low. |
|---------------+--------------------------------------------|
| ? &D2 | Device hangs up and returns to command |
| | mode on low DTR. |
|---------------+--------------------------------------------|
| &D3 | Device resets on low DTR. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Hn [cmds] |
|--------------+---------------------------------------------|
| Description: | Disables flow control options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &H0 | Flow control disabled |
|--------------+---------------------------------------------|
| ? &H3 | RTS to CTS flow control disabled |
|--------------+---------------------------------------------|
| &H4 | XON/XOFF flow control disabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| HOOK CONTROL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Hn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects whether the modem is on-hook or |
| | off-hook |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| ? H0 | Modem commanded to go on-hook (hang-up) |
|--------------+---------------------------------------------|
| H3 | Phone line 1 commanded to go on-hook |
| | (hang-up) |
|--------------+---------------------------------------------|
| H4 | Phone line 2 commanded to go on-hook |
| | (hang-up) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ISDN COMMUNICATION PROTOCOLS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Bn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the communication protocol for data |
| | calls |
|------------------------------------------------------------|
| Note: The B command allows the simultaneous selection |
| of more than one suffix, enabling multiple protocols. |
| B must be followed by two digits. |
|------------------------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| B00 | X.75 Transparent |
|--------------+---------------------------------------------|
| B01 | X.75 T.70 |
|--------------+---------------------------------------------|
| B04 | BTX (Data X-J) |
|--------------+---------------------------------------------|
| B10 | V.110 follows DTE speed (async). V.110 |
| | determined by in-band negotiation (sync) |
|--------------+---------------------------------------------|
| B13 | V.110 at 2400bps |
|--------------+---------------------------------------------|
| B14 | V.110 at 4800bps |
|--------------+---------------------------------------------|
| B15 | V.110 at 9600bps |
|--------------+---------------------------------------------|
| B16 | V.110 at 14.4Kbps |
|--------------+---------------------------------------------|
| B17 | V.110 at 19.2Kbps |
|--------------+---------------------------------------------|
| B18 | V.110 at 38.4Kbps (sync only) |
|--------------+---------------------------------------------|
| B19 | V.110 at 57.6Kbps (sync only) |
|--------------+---------------------------------------------|
| B20 | V.120 |
|--------------+---------------------------------------------|
| B40 | PPP async to sync conversion |
|--------------+---------------------------------------------|
| B41 | SLIP async to sync conversion |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ON-LINE |
|------------------------------------------------------------|
| Type: | Immediate |
|---------------+--------------------------------------------|
| Format: | AT [cmds] On [cmds] |
|---------------+--------------------------------------------|
| Description: | Controls on-line command (data |
| | transmission) state options. |
|------------------------------------------------------------|
| Note: The O command must be placed at the end of the |
| command string. |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| O0 | On-line command mode with no retraining |
| | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPEAT PREVIOUS COMMAND OR CALL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | A> |
|--------------+---------------------------------------------|
| Description: | Repeats previous command once or last call |
| | up to 9 times. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports product ID |
|--------------+---------------------------------------------|
| I1 | Reports product information & ROM checksum |
|--------------+---------------------------------------------|
| I3 | Reports link status |
|--------------+---------------------------------------------|
| I9 | Reports Microsoft PnP code |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RING VOLUME |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls ring volume |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| N0 | Audio ring disabled |
|--------------+---------------------------------------------|
| N1 | Low volume setting |
|--------------+---------------------------------------------|
| N2 | Medium volume setting |
|--------------+---------------------------------------------|
| ? N3 | Highest volume setting |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SELECT CALL PROGRESS RESULT CODES |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Xn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables selection of tone detection and |
| | associated result code format options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| X0 | Busy and dial tone detection disabled; |
| | result codes 0 - 4 enabled. |
|--------------+---------------------------------------------|
| X1 | Busy and dial tone detection disabled; |
| | result codes 0 - 5, 10 - 47 enabled. |
|--------------+---------------------------------------------|
| X2 | Busy tone detection enabled, dial tone |
| | detection disabled; result codes 0 - 6, |
| | |
| | 10 - 47 enabled |
|--------------+---------------------------------------------|
| X3 | Busy tone detection disabled, dial tone |
| | detection enabled; result codes 0 - 5, |
| | |
| | 7 - 47 enabled |
|--------------+---------------------------------------------|
| X4 | Busy and dial tone detection enabled; |
| | result codes 0 - 47 enabled. |
|--------------+---------------------------------------------|
| X5 | Busy and dial tone detection enabled; |
| | result codes 0 - 47 enabled. |
|--------------+---------------------------------------------|
| X6 | Busy and dial tone detection enabled; |
| | result codes 0 - 18, 35, 38 - 47 enabled. |
|--------------+---------------------------------------------|
| X7 | Busy and dial tone detection enabled; |
| | result codes 0 - 18, 35, 38 - 47 enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SOFT RESET |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Zn [cmds] |
|--------------+---------------------------------------------|
| Description: | Restores modem profiles previously saved in |
| | non-volatile RAM using the &W command. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| Z0 | Restore setting 0 |
|--------------+---------------------------------------------|
| Z1 | Restore setting 1 |
|--------------+---------------------------------------------|
| Z2 | Restore setting 3 |
|--------------+---------------------------------------------|
| Z3 | Restore setting 4 |
|--------------+---------------------------------------------|
| Z4 | Restore factory default settings |
+------------------------------------------------------------+
+------------------------------------------------------------+
| STORE ACTIVE PROFILE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Wn [cmds] |
|--------------+---------------------------------------------|
| Description: | Writes the values for the active profile |
| | into the non-volatile RAM |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &W0 | Write the active profile to stored profile |
| | 0 |
|--------------+---------------------------------------------|
| &W1 | Write the active profile to stored profile |
| | 1 |
|--------------+---------------------------------------------|
| &W2 | Write the active profile to stored profile |
| | 2 |
|--------------+---------------------------------------------|
| &W3 | Write the active profile to stored profile |
| | 3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Tn |
|--------------+---------------------------------------------|
| Description: | Selects test options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &T9 | Initiates ISDN loopback test |
|--------------+---------------------------------------------|
| &T10 | Initiates ISDN loopback with self |
| | diagnostic test |
+------------------------------------------------------------+
Special Commands
+------------------------------------------------------------+
| ADD-THRESHOLD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] JAn [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Default: | 48 |
|--------------+---------------------------------------------|
| Unit: | Kbps |
|--------------+---------------------------------------------|
| Description: | Determines the add-threshold for MNPPP |
+------------------------------------------------------------+
+------------------------------------------------------------+
| B-CHANNEL NUMBER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Zin=(phone # & subaddress) |
|--------------+---------------------------------------------|
| Description: | Assigns the phone numbers for various |
| | B-channel protocols. ZI? Displays B-channel |
| | phone numbers |
|--------------+---------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| &ZI0 | Assigns MSNs for X.75 |
|--------------+---------------------------------------------|
| &ZI1 | Assigns MSNs for V.110 |
|--------------+---------------------------------------------|
| &ZI2 | Assigns MSNs for V.120 |
|--------------+---------------------------------------------|
| &ZI3 | Assigns MSNs for PPP, MPPP |
|--------------+---------------------------------------------|
| &ZI4 | Assigns MSNs for ISDN data, protocal |
| | auto-detect |
|--------------+---------------------------------------------|
| &ZI6 | Assigns the phone numbers for analog phone |
| | line 1 |
|--------------+---------------------------------------------|
| &ZI7 | Assigns the phone numbers for analog phone |
| | line 2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BOD ADD-PERSIST (MIN) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] KAMn [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-63 |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Unit: | 1min |
|--------------+---------------------------------------------|
| Description: | Determines the add-persist time interval |
| | for BOD |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BOD ADD-PERSIST |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] KAxn [cmds] |
|--------------+---------------------------------------------|
| Range (n): | 0-63 |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Unit (x): | S=1sec, M=1min |
|--------------+---------------------------------------------|
| Description: | Determines the add-persist time interval |
| | for BOD |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BOD SUB-PERSIST |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] KSxn [cmds] |
|--------------+---------------------------------------------|
| Range (n): | 0-63 |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Unit (x):: | S=1sec, M=1min |
|--------------+---------------------------------------------|
| Description: | Determines the sub-persist time interval |
| | for BOD |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CALL BUMPING |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] CEn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables/disables call bumping |
|--------------+---------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| CE0 | Call bumping disabled |
|--------------+---------------------------------------------|
| CE1 | Call bumping enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CALL RESUME |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] CRn [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-3 |
|--------------+---------------------------------------------|
| Description: | Resumes a previously suspended call; n is |
| | the call identifier |
|--------------+---------------------------------------------|
| Note: | Command for use in Europe |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CALL SUSPEND |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] CSn [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-3 |
|--------------+---------------------------------------------|
| Description: | Suspends a call; n is the call identifier |
|--------------+---------------------------------------------|
| Note: | Command for use in Europe |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CALLBACK |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *GCn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables/disables callback function |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| *GC1 | Callback function disabled |
|--------------+---------------------------------------------|
| *GC2 | Callback function enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CALLBACK LOCATION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *HCn=x [cmds] |
|--------------+---------------------------------------------|
| Description: | Assigns a storage location to callback |
| | phone number x |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| *HC0 | Callback number stored in location 0 |
|--------------+---------------------------------------------|
| *HC1 | Callback number stored in location 1 |
|--------------+---------------------------------------------|
| *HC2 | Callback number stored in location 2 |
|--------------+---------------------------------------------|
| *HC3 | Callback number stored in location 3 |
|--------------+---------------------------------------------|
| *HC4 | Callback number stored in location 4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CALLER ID |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *T [cmds] |
|--------------+---------------------------------------------|
| Description: | Recalls caller ID information |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CHARACTER LENGTH |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *Hn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the character length; including start, |
| | stop, and parity bit |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| *C0 | 10-bit character length |
|--------------+---------------------------------------------|
| *C1 | 11-bit character length |
|--------------+---------------------------------------------|
| *C2 | 9-bit character length |
|--------------+---------------------------------------------|
| *C3 | 8-bit character length |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CHARGE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] CH? [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays accumulated charging unit of last |
| | call |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA PACKET SIZE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] CLn [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-2048 |
|--------------+---------------------------------------------|
| Unit: | 8 |
|--------------+---------------------------------------------|
| Description: | Determines the maximum size of user data in |
| | a packet. CL? Queries current setting |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL POINTER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *Dn [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-39 |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the default dial pionter for telephone |
| | directory location n |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FIRMWARE DOWNLOAD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] UPX [cmds] |
|--------------+---------------------------------------------|
| Description: | Downloads firmware to the flash EPROM using |
| | X-modem protocol |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LOOPBACK 4 |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] CPn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables/disables loopback 4 |
|--------------+---------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| CP0 | Loopback 4 disabled |
|--------------+---------------------------------------------|
| CP1 | Loopback 4 enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PASSWORD TABLE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *Hn [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-39 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Modifies user password table at location n |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PREFIX NUMBER (INTERNATIONAL) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] CIn [cmds] |
|--------------+---------------------------------------------|
| Description: | Determines prefix number string to be added |
| | to the calling party number before |
| | indicating to the DTE international number |
| | type |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PREFIX NUMBER (NATIONAL) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] CNn [cmds] |
|--------------+---------------------------------------------|
| Description: | Determines prefix number string to be added |
| | to the calling party number before |
| | indicating to the DTE national number type |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SECURITY FUNCTIONS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables type 2 security, sets password |
| | check and callback security options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| *G3 | Type 2 security enabled with password check |
|--------------+---------------------------------------------|
| *G4 | Type 2 security enabled with password check |
| | and callback |
|--------------+---------------------------------------------|
| *G5 | Type 2 security enabled with password check |
| | and callback; remote site enters the |
| | callback number |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SPID NUMBER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] SPIDn=(SPID #) |
|--------------+---------------------------------------------|
| Unit: | Unidentified |
|--------------+---------------------------------------------|
| Description: | Sets the SPID number for USA switches |
|------------------------------------------------------------|
| Command | Protocol |
|-------------------------+----------------------------------|
| SPID0 | Sets SPID number 1 |
|-------------------------+----------------------------------|
| SPID1 | Sets SPID number 2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUB-THRESHOLD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] JSn [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Default: | 32 |
|--------------+---------------------------------------------|
| Unit: | Kbps |
|--------------+---------------------------------------------|
| Description: | Determines the sub-threshold for MNPPP |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPERVISORY PASSWORD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *HS [cmds] |
|--------------+---------------------------------------------|
| Description: | Modifies supervisory password. Dafault |
| | password is NETGEAR |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIEW CALLBACK |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *VC [cmds] |
|--------------+---------------------------------------------|
| Description: | Views callback number table |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIEW PASSWORD |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] *V [cmds] |
|--------------+---------------------------------------------|
| Description: | Views password table |
+------------------------------------------------------------+
+------------------------------------------------------------+
| WRITE NUMBER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &ZOn=(phone # & subaddress) |
|--------------+---------------------------------------------|
| Description: | Writes phone number to be used as the |
| | calling party number. ZO? displays setting |
|--------------+---------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| &ZOI | Calling party number on ISDN interface |
|--------------+---------------------------------------------|
| &ZOA | Calling party number on analog phone line 1 |
|--------------+---------------------------------------------|
| &ZOB | Calling party number on analog phone line 2 |
+------------------------------------------------------------+
S(status) -REGISTERS
+------------------------------------------------------------+
| 1TR6 OUTGOING SERVICES |
|------------------------------------------------------------|
| Type: | Register |
|---------------+--------------------------------------------|
| Format | AT [cmds] S104x=n [cmds] |
|---------------+--------------------------------------------|
| Description: | Determines outgoing service options. |
|------------------------------------------------------------|
| Command | Function |
|------------+-----------------------------------------------|
| x=0 | PHONE 2 service |
|------------+-----------------------------------------------|
| x=2 | ISDN data service |
|------------+-----------------------------------------------|
| x=3 | PHONE 1 service |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ADD-THRESHOLD FOR BOD |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S126=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | Kbps |
|--------------+---------------------------------------------|
| Description: | Determines the add-threshold for BOD |
+------------------------------------------------------------+
+------------------------------------------------------------+
| B-CHANNEL 1 ACCUMULATED CHARGING UNIT (MSB) |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S120=n [cmds] |
|--------------+---------------------------------------------|
| Range: | Unidentified |
|--------------+---------------------------------------------|
| Unit: | Unidentified |
|--------------+---------------------------------------------|
| Description: | Determine the accumulated charging unit |
| | (MSB) for B-channel 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| B-CHANNEL 1 ACCUMULATED CHARGING UNIT(LSB) |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S121=n [cmds] |
|--------------+---------------------------------------------|
| Range: | Unidentified |
|--------------+---------------------------------------------|
| Unit: | Unidentified |
|--------------+---------------------------------------------|
| Description: | Determine the accumulated charging unit |
| | (LSB) for B-channel 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| B-CHANNEL 2 ACCUMULATED CHARGING UNIT (MSB) |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S122=n [cmds] |
|--------------+---------------------------------------------|
| Range: | Unidentified |
|--------------+---------------------------------------------|
| Unit: | Unidentified |
|--------------+---------------------------------------------|
| Description: | Determine the accumulated charging unit |
| | (MSB) for B-channel 2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| B-CHANNEL 2 ACCUMULATED CHARGING UNIT(LSB) |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S123=n [cmds] |
|--------------+---------------------------------------------|
| Range: | Unidentified |
|--------------+---------------------------------------------|
| Unit: | Unidentified |
|--------------+---------------------------------------------|
| Description: | Determine the accumulated charging unit |
| | (LSB) for B-channel 2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| B-CHANNEL BUNDLING PROTOCOL SELECTION |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S100=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets B-channel bundling protocol |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S100=0 | MLP |
|--------------+---------------------------------------------|
| S100=1 | Cfos (European models) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S118 |
|------------------------------------------------------------|
| Format: | AT [cmds] S118n [cmds] |
|-----------------+------------------------------------------|
| Range: | 0-255 |
|-----------------+------------------------------------------|
| Description: | Enables/disables dial-in call; selects |
| | default B-channle speed, incoming call |
| | acceptance, and bearer service |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+---------+--------------------------------------|
| 0 | 0 | Dial-in call enabled |
| | | |
| | 1 | Dial-in call disabled |
|-----------+---------+--------------------------------------|
| 1 | 0 | Not used |
|-----------+---------+--------------------------------------|
| 2 | 0 | 64Kbps ISDN B-channel speed |
| | | |
| | 1 | 56Kbps ISDN B-channel speed |
|-----------+---------+--------------------------------------|
| 3 | 0 | Not used |
|-----------+---------+--------------------------------------|
| 4 | 0 | 3.1KHz bearer service priority on |
| | | PHONE 2 |
| | 1 | |
| | | Speech bearer service priority on |
| | | PHONE 2 |
|-----------+---------+--------------------------------------|
| 5 | 0 | 3.1KHz bearer service priority on |
| | | PHONE 1 |
| | 1 | |
| | | Speech bearer service priority on |
| | | PHONE 1 |
|-----------+---------+--------------------------------------|
| 6 | 0 | Global call accepted |
| | | |
| | 1 | Global calls rejected if MSN is |
| | | unmatched |
|-----------+---------+--------------------------------------|
| 7 | 0 | Analog incoming calls enabled |
| | | |
| | 1 | analog icoming calls disabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S119 |
|------------------------------------------------------------|
| Format: | AT [cmds] S119n [cmds] |
|-----------------+------------------------------------------|
| Range: | 0-255 |
|-----------------+------------------------------------------|
| Description: | Enables/disables callback function, DDI |
| | function, MSN matching; controls V.110 |
| | speed |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+-------+----------------------------------------|
| 0 | 0 | Callback function disabled |
| | | |
| | 1 | Callback function enabled |
|-----------+-------+----------------------------------------|
| 1 | 0 | DDI point-to-point signaling disabled |
| | | |
| | 1 | DDI point-to-point signaling enabled |
|-----------+-------+----------------------------------------|
| 2 | 0 | DDI point-to-multipoint signaling |
| | | disabled |
| | 1 | |
| | | DDI point-to-multipoint signaling |
| | | enabled |
|-----------+-------+----------------------------------------|
| 3 | 0 | Inbound call ignored if MSN is |
| | | unmatched |
| | 1 | |
| | | Inbound call accepted if MSN is |
| | | unmatched |
|-----------+-------+----------------------------------------|
| 4 | 0 | V.110 user rate set to 19.2Kbps if DTE |
| | | speed is greater than 19.2Kbps |
| | 1 | |
| | | V.110 user rate set to 38.4Kbps if DTE |
| | | speed is greater than 38.4Kbps |
|-----------+-------+----------------------------------------|
| 5 | 0 | Normal MSN function enabled |
| | | |
| | 1 | Treats number assigned by &ZI=n as a |
| | | subaddress, and matches it to the |
| | | called party subaddress |
|-----------+-------+----------------------------------------|
| 7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S125 |
|------------------------------------------------------------|
| Format: | AT [cmds] S125n [cmds] |
|-----------------+------------------------------------------|
| Range: | 0-255 |
|-----------------+------------------------------------------|
| Description: | Controls sub-persist time interval |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+-------+----------------------------------------|
| 0 | 0 | Not used |
|-----------+-------+----------------------------------------|
| 1-6 | ? | Controls sub-persist time interval; |
| | | further information not available |
|-----------+-------+----------------------------------------|
| 7 | 0 | Sub-persist time interval in second |
| | | unit |
| | 1 | |
| | | Sub-persist time interval in minute |
| | | unit |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S15 |
|------------------------------------------------------------|
| Format | AT [cmds] S23=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Determines parity, stop bits, character |
| | length, and power-up profile |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0,1 | 00 | Parity even |
| | | |
| | 01 | Parity odd |
| | | |
| | 10 | Mark or No Parity |
|------+-------+---------------------------------------------|
| 2 | 0 | 1stop bit |
| | | |
| | 1 | 2 stop bits |
|------+-------+---------------------------------------------|
| 4,3 | 00 | 10-bit character length |
| | | |
| | 01 | 11-bit character length |
| | | |
| | 10 | 9-bit character length |
| | | |
| | 11 | 8-bit character length |
|------+-------+---------------------------------------------|
| 7-5 | 00 | Power on profile 1 |
| | | |
| | 01 | Power on profile 2 |
| | | |
| | 10 | Power on profile 3 |
| | | |
| | 11 | Power on factory default profile |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S21 |
|------------------------------------------------------------|
| Format | AT [cmds] S21=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Enables speaker, controls DTR/DCD/DSR |
| | signals & low DTR action |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0-2 | 00 | Speaker always off |
| | | |
| | 01 | Speaker on until carrier is detected |
| | | |
| | 10 | Speaker always on |
|------+-------+---------------------------------------------|
| 3 | 0 | DSR forced high |
| | | |
| | 1 | DSR normal |
|------+-------+---------------------------------------------|
| 4 | 0 | DCD forced high |
| | | |
| | 1 | DCD normal |
|------+-------+---------------------------------------------|
| 5 | 0 | DCD forced high |
| | | |
| | 1 | DCD normal |
|------+-------+---------------------------------------------|
| 6-7 | 00 | DTR assumed on |
| | | |
| | 01 | DTR toggle causes default number to dial |
| | | |
| | 10 | Hang up and return to command mode on low |
| | | DTR |
| | 11 | |
| | | Hang up and reset to profile 0 on low DTR |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S23 |
|------------------------------------------------------------|
| Format: | AT [cmds] S23=n [cmds] |
|----------------+-------------------------------------------|
| Range: | 0-255 |
|----------------+-------------------------------------------|
| Description: | Select command echo, automode and |
| | extended result code format. |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+-------+-----------------------------------------|
| 0 | 0 | Command echo enabled |
| | | |
| | 1 | Command echo disabled |
|----------+-------+-----------------------------------------|
| 1 | 0 | Not used |
|----------+-------+-----------------------------------------|
| 2 | 00 | Insertion not allowed during phone call |
| | | |
| | 01 | Insertion allowed during phone call |
|----------+-------+-----------------------------------------|
| 3-5 | 000 | Busy and dial tone detection disabled; |
| | | result codes 0 - 4 enabled. |
| | 001 | |
| | | Busy and dial tone detection disabled; |
| | 010 | result codes 0 - 5, 10 - 47 enabled. |
| | | |
| | 011 | Busy tone detection enabled, dial tone |
| | | detection disabled; result codes 0 - 6, |
| | 100 | |
| | | 10 - 47 enabled. |
| | | |
| | | Busy tone detection disabled, dial tone |
| | | detection enabled; result codes 0 - 5, |
| | | |
| | | 7 - 47 enabled. |
| | | |
| | | Busy and dial tone detection enabled; |
| | | result codes 0 - 47 enabled. |
|----------+-------+-----------------------------------------|
| 6 | 0 | Result codes displayed in numeric |
| | | format |
| | 1 | |
| | | Result codes displayed in verbose |
| | | format |
|----------+-------+-----------------------------------------|
| 7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S24 |
|------------------------------------------------------------|
| Format: | AT [cmds] S24=n [cmds] |
|----------------+-------------------------------------------|
| Range: | 0-255 |
|----------------+-------------------------------------------|
| Description: | Selects ring volume, speaker control (S21 |
| | bits 1-2) ignore function, and speaker |
| | volume |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+-------+-----------------------------------------|
| 0,1 | 00 | Ring volume at minimum |
| | | |
| | 01 | Ring volume increased by 1 decimal |
| | | |
| | 11 | Ring volume increased by 2 decimals |
|----------+-------+-----------------------------------------|
| 2 | 0 | Ignore S21 bits 1-2 speaker enable when |
| | | phone 1 keypad is dialed |
| | 1 | |
| | | Do not ignore S21 bits 1-2 speaker |
| | | enable when phone 1 keypad is dialed |
|----------+-------+-----------------------------------------|
| 3 | 0 | Ignore S21 bits 1-2 speaker enable when |
| | | phone 2 keypad is dialed |
| | 1 | |
| | | Do not ignore S21 bits 1-2 speaker |
| | | enable when phone 2 keypad is dialed |
|----------+-------+-----------------------------------------|
| 5,4 | 0 | Speaker volume control in increments of |
| | | 16 |
|----------+-------+-----------------------------------------|
| 6,7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S35 |
|------------------------------------------------------------|
| Format: | AT [cmds] S35=n [cmds] |
|----------------+-------------------------------------------|
| Range: | 0-255 |
|----------------+-------------------------------------------|
| Description: | Enables default dail, extended numeric |
| | result codes |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+-------+-----------------------------------------|
| 0-3 | 0 | Not used |
|----------+-------+-----------------------------------------|
| 4 | 0 | Do not dial default number when |
| | | Data/Voice is pressed |
| | 1 | |
| | | Dials default number when Data/Voice is |
| | | pressed |
|----------+-------+-----------------------------------------|
| 6-5 | 0 | Not used |
|----------+-------+-----------------------------------------|
| 7 | 0 | Extended numeric result codes in error |
| | | correction mode are disabled |
| | 1 | |
| | | Extended numeric result codes in error |
| | | correction mode are enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S38 |
|------------------------------------------------------------|
| Format: | AT [cmds] S38=n [cmds] |
|----------------+-------------------------------------------|
| Range: | 0-255 |
|----------------+-------------------------------------------|
| Description: | Enables repeat dialing, DCD toggle |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+-------+-----------------------------------------|
| 0 | 0 | Repeatedly dials default number |
| | | |
| | 1 | Does not repeatedly dial default number |
|----------+-------+-----------------------------------------|
| 1 | 0 | Not used |
|----------+-------+-----------------------------------------|
| 3 | 0 | DCD toggle does not follow UNIX |
| | | standard |
| | 1 | |
| | | DCD toggle follows UNIX standard. DCD |
| | | high before connect message is sent, |
| | | DCD off after last DCE response is sent |
|----------+-------+-----------------------------------------|
| 4-7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S40 |
|------------------------------------------------------------|
| Format: | AT [cmds] S40=n [cmds] |
|-----------------+------------------------------------------|
| Range: | 0-255 |
|-----------------+------------------------------------------|
| Description: | Enables result code display in answer |
| | mode |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+--------+---------------------------------------|
| 0 | 0 | Not used |
|-----------+--------+---------------------------------------|
| 1 | 0 | Result code display in answer mode |
| | | enabled |
| | 1 | |
| | | Result code display in answer mode |
| | | disabled |
|-----------+--------+---------------------------------------|
| 2-7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S41 |
|------------------------------------------------------------|
| Format: | AT [cmds] S41=n [cmds] |
|-----------------+------------------------------------------|
| Range: | 0-255 |
|-----------------+------------------------------------------|
| Description: | Enables CCITT signals 140 & 141 on |
| | EIA-232D interface |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+-------+----------------------------------------|
| 0-2 | 0 | Not used |
|-----------+-------+----------------------------------------|
| 3 | 0 | CCITT signals 140 & 141 on EIA-232D |
| | | interface disabled |
| | 1 | |
| | | CCITT signals 140 & 141 on EIA-232D |
| | | interface enabled |
|-----------+-------+----------------------------------------|
| 4-7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S42 |
|------------------------------------------------------------|
| Format: | AT [cmds] S42=n [cmds] |
|-----------------+------------------------------------------|
| Range: | 0-255 |
|-----------------+------------------------------------------|
| Description: | Controls escape sequence Data/Voice |
| | button, and <RINGING> result code |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+-------+----------------------------------------|
| 0 | 0 | Not used |
|-----------+-------+----------------------------------------|
| 3 | 0 | Escape code sequence in answer mode |
| | | enabled |
| | 1 | |
| | | Escape code sequence in answer mode |
| | | disabled |
|-----------+-------+----------------------------------------|
| 4 | 0 | Not used |
|-----------+-------+----------------------------------------|
| 5 | 0 | Voice/Data button enabled |
| | | |
| | 1 | Voice/Data button disabled |
|-----------+-------+----------------------------------------|
| 6 | 0 | Ringing result code enabled |
| | | |
| | 1 | Ringing result code disabled |
|-----------+-------+----------------------------------------|
| 7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S44 |
|------------------------------------------------------------|
| Format: | AT [cmds] S44=n [cmds] |
|-----------------+------------------------------------------|
| Range: | 0-255 |
|-----------------+------------------------------------------|
| Description: | Controls escape sequence Data/Voice |
| | button, and <RINGING> result code |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+-------+----------------------------------------|
| 0 | 0 | Not used |
|-----------+-------+----------------------------------------|
| 3 | 0 | ATDSn does not initiate auto-dial if |
| | | the stored numbers cinsecutively until |
| | 1 | connection is made |
| | | |
| | | ATDSn does not initiates auto-dial if |
| | | the stored numbers cinsecutively until |
| | | connection is made |
|-----------+-------+----------------------------------------|
| 4 | 0 | DSR does not follow DTR |
| | | |
| | 1 | DSR follows DTR |
|-----------+-------+----------------------------------------|
| 5-7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S80 |
|------------------------------------------------------------|
| Format: | AT [cmds] S80=n [cmds] |
|----------------+-------------------------------------------|
| Range: | 0-255 |
|----------------+-------------------------------------------|
| Description: | Controls sending of low-layer |
| | compatibility information |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+-------+-----------------------------------------|
| 0-3 | 0 | Not used |
|----------+-------+-----------------------------------------|
| 4 | 0 | Does not send low-layer compatibility |
| | | information for PHONE 2 |
| | 1 | |
| | | Send low-layer compatibility |
| | | information for PHONE 2 |
|----------+-------+-----------------------------------------|
| 5 | 0 | Not used |
|----------+-------+-----------------------------------------|
| 6 | 0 | Does not send low-layer compatibility |
| | | information for ISDN call |
| | 1 | |
| | | Send low-layer compatibility informatin |
| | | for ISDN call |
|----------+-------+-----------------------------------------|
| 7 | 0 | Does not send low-layer compatibility |
| | | information for PHONE 1 |
| | 1 | |
| | | Send low-layer compatibility |
| | | information for PHONE 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S83 |
|------------------------------------------------------------|
| Format: | AT [cmds] S83=n [cmds] |
|----------------+-------------------------------------------|
| Range: | 0-255 |
|----------------+-------------------------------------------|
| Description: | Controls loopback and dial commands |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+-------+-----------------------------------------|
| 0 | 0 | Loopback 4 test disabled |
| | | |
| | 1 | Lopback 4 test enabled |
|----------+-------+-----------------------------------------|
| 2 | 0 | ISDN without V.42bis enabled |
| | | |
| | 1 | ISDN with 42bis enabled |
|----------+-------+-----------------------------------------|
| 3 | 0 | Not used |
|----------+-------+-----------------------------------------|
| 4-5 | 00 | ATD, ATDP, and ATDT commands are mapped |
| | | to ATDM |
| | 01 | |
| | | ATD, ATDP, and ATDT commands are mapped |
| | 10 | to ATDI |
| | | |
| | | ATD, ATDP, and ATDT commands are mapped |
| | | to ATDB |
|----------+-------+-----------------------------------------|
| 6-7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S84 |
|------------------------------------------------------------|
| Format: | AT [cmds] S84=n [cmds] |
|----------------+-------------------------------------------|
| Range: | 0-255 |
|----------------+-------------------------------------------|
| Description: | Controls S-register display format, |
| | caller ID, and phone priority |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+-------+-----------------------------------------|
| 0-2 | 0 | Not used |
|----------+-------+-----------------------------------------|
| 3 | 0 | S-register not displayed in hexidecimal |
| | | format |
| | 1 | |
| | | S-register displayed in hexidecimal |
| | | format |
|----------+-------+-----------------------------------------|
| 4 | 0 | Indicates caller ID after first ring |
| | | message |
| | 1 | |
| | | Caller ID disabled |
|----------+-------+-----------------------------------------|
| 5 | 0 | PHONE 1 given call priority |
| | | |
| | 1 | PHONE 2 given call priority |
|----------+-------+-----------------------------------------|
| 6-7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S85 |
|------------------------------------------------------------|
| Format: | AT [cmds] S85n [cmds] |
|-----------------+------------------------------------------|
| Range: | 0-255 |
|-----------------+------------------------------------------|
| Description: | Controls DCA function, add-persist time |
| | interval |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+-------+----------------------------------------|
| 0 | 0 | DCA function enabled |
| | | |
| | 1 | DCA function disabled |
|-----------+-------+----------------------------------------|
| 1-6 | ? | Controls add-persist time interval; |
| | | further information not available |
|-----------+-------+----------------------------------------|
| 7 | 0 | Add-persist time interval in secondits |
| | | |
| | 1 | Add-persist time interval in minute |
| | | unite |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S87 |
|------------------------------------------------------------|
| Format: | AT [cmds] S87n [cmds] |
|----------------+-------------------------------------------|
| Range: | 0-255 |
|----------------+-------------------------------------------|
| Description: | Enables/disables bundle connection |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+--------+----------------------------------------|
| 0-4 | 0 | Not used |
|----------+--------+----------------------------------------|
| 5,6 | 00 | Bundle mode connection disabled |
| | | |
| | 01 | Bundle connection enabled in answer |
| | | mode only |
| | 11 | |
| | | Bundle connection enabled in call mode |
| | 10 | only |
| | | |
| | | Bundle connection enabled in both |
| | | directions |
|----------+--------+----------------------------------------|
| 7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S89 |
|------------------------------------------------------------|
| Format: | AT [cmds] S89n [cmds] |
|----------------+-------------------------------------------|
| Range: | 0-255 |
|----------------+-------------------------------------------|
| Description: | Enables/disables metering pulse |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+---------+---------------------------------------|
| 0-4 | 0 | Not used |
|----------+---------+---------------------------------------|
| 5 | 0 | Metering pulse disabled on PHONE 2 |
| | | |
| | 1 | Metering pulse enabled on PHONE 2 |
|----------+---------+---------------------------------------|
| 6 | 0 | Metering pulse disabled on PHONE 1 |
| | | |
| | 1 | Metering pulse enabled on PHONE 1 |
|----------+---------+---------------------------------------|
| 7 | 0 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| D-CHANNEL PROTOCOL SELECTION |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S86=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum allowable 56K downstream |
| | rate attempted during handshake process. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S86=0 | Northern telecom proprietary ISDN |
|--------------+---------------------------------------------|
| S86=1 | National ISDN 1 |
|--------------+---------------------------------------------|
| S86=2 | National ISDN 2 |
|--------------+---------------------------------------------|
| S86=3 | Reserved |
|--------------+---------------------------------------------|
| S86=4 | AT&T proprietary point-to-piont |
|--------------+---------------------------------------------|
| S86=5 | AT&T proprietary point-to-multipoint |
|--------------+---------------------------------------------|
| S86=6 | AT&T custom point-to-multipoint |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DTE LINE SPEED |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S20=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum allowable data exchange |
| | rate attempted during handshake process. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S20=0 | 230.4Mbps |
|--------------+---------------------------------------------|
| S20=1 | 115.2Mbps |
|--------------+---------------------------------------------|
| S20=3 | 57.6Kbps |
|--------------+---------------------------------------------|
| S20=5 | 38.4bps |
|--------------+---------------------------------------------|
| S20=5 | 19.2bps |
|--------------+---------------------------------------------|
| S20=9 | 9600bps |
|--------------+---------------------------------------------|
| S20=11 | 4800bps |
|--------------+---------------------------------------------|
| S20=12 | 2400bps |
|--------------+---------------------------------------------|
| S20=13 | 19.2Kbps |
|--------------+---------------------------------------------|
| S20=14 | 460.8Mbps |
|--------------+---------------------------------------------|
| S20=15 | 921.6Mbps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FIXED BAUD RATE |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S18=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the fixed baud rate at idle |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S18=0 | 230.4Mbps |
|--------------+---------------------------------------------|
| S18=1 | 115.2Mbps |
|--------------+---------------------------------------------|
| S18=3 | 57.6Kbps |
|--------------+---------------------------------------------|
| S18=5 | 38.4bps |
|--------------+---------------------------------------------|
| S18=5 | 19.2bps |
|--------------+---------------------------------------------|
| S18=9 | 9600bps |
|--------------+---------------------------------------------|
| S18=11 | 4800bps |
|--------------+---------------------------------------------|
| S18=12 | 2400bps |
|--------------+---------------------------------------------|
| S18=13 | 19.2Kbps |
|--------------+---------------------------------------------|
| S18=14 | 460.8Mbps |
|--------------+---------------------------------------------|
| S18=15 | 921.6Mbps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S27 [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays the current flow control |
|--------------+---------------------------------------------|
| Value | Meaning |
|--------------+---------------------------------------------|
| 0 | Flow control disabled |
|--------------+---------------------------------------------|
| 3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| 4 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| 5 | Reserved |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XOFF |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S32=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XOFF |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XON |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S31=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XON |
+------------------------------------------------------------+
+------------------------------------------------------------+
| HOOK FLASH DETECT TIME |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S56=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | 10ms |
|--------------+---------------------------------------------|
| Description: | Determines the hook flash detect time for |
| | analog adapter |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I-FIELD DATA LENGTH (LSB) |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S115=n [cmds] |
|--------------+---------------------------------------------|
| Range: | Unidentified |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets I-field data length (LSB) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I-FIELD DATA LENGTH (MSB) |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S114=n [cmds] |
|--------------+---------------------------------------------|
| Range: | Unidentified |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets I-field data length (MSB) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IP PACKET INTERVAL |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S124=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | 1sec |
|--------------+---------------------------------------------|
| Description: | Empties IP packet interval for PPP |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ISDN B-CHANNEL PROTOCOL |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S82=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Determines ISDN B channel protocol |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S82=60 | V.120 at 64Kbps |
|--------------+---------------------------------------------|
| S82=61 | V.120 at 56Kbps |
|--------------+---------------------------------------------|
| S82=62 | X.75 at 64Kbps transparent |
|--------------+---------------------------------------------|
| S82=63 | X.75 at 56Kbps transparent |
|--------------+---------------------------------------------|
| S82=64 | X.75 at 64Kbps T.70 |
|--------------+---------------------------------------------|
| S82=65 | X.75 at 56Kbps T.70 |
|--------------+---------------------------------------------|
| S82=72 | V.110 at 64Kbps |
|--------------+---------------------------------------------|
| S82=73 | V.110 at 56Kbps |
|--------------+---------------------------------------------|
| S82=74 | PPP async to sync 64Kbps |
|--------------+---------------------------------------------|
| S82=75 | PPP async to sync 56Kbps |
|--------------+---------------------------------------------|
| S82=76 | SLIP to sync HDLC conversion at 64Kbps |
|--------------+---------------------------------------------|
| S82=77 | SLIP to sync HDLC conversion at 56Kbps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ISDN B-CHANNEL PROTOCOL (OUTGOING) |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S102=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Determines outgoing ISDN B-channel protocol |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S102=60 | V.120 at 64Kbps |
|--------------+---------------------------------------------|
| S102=61 | V.120 at 56Kbps |
|--------------+---------------------------------------------|
| S102=62 | X.75 at 64Kbps transparent |
|--------------+---------------------------------------------|
| S102=63 | X.75 at 56Kbps transparent |
|--------------+---------------------------------------------|
| S102=64 | X.75 at 64Kbps T.70 |
|--------------+---------------------------------------------|
| S102=65 | X.75 at 56Kbps T.70 |
|--------------+---------------------------------------------|
| S102=72 | V.110 at 64Kbps |
|--------------+---------------------------------------------|
| S102=73 | V.110 at 56Kbps |
|--------------+---------------------------------------------|
| S102=74 | PPP async to sync 64Kbps |
|--------------+---------------------------------------------|
| S102=75 | PPP async to sync 56Kbps |
|--------------+---------------------------------------------|
| S102=76 | SLIP to sync HDLC conversion at 64Kbps |
|--------------+---------------------------------------------|
| S102=77 | SLIP to sync HDLC conversion at 56Kbps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PHONE NUMBER POINTER |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S29=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-39 |
|--------------+---------------------------------------------|
| Unit: | Unidentified |
|--------------+---------------------------------------------|
| Description: | Sets the default phone number pointer |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REGISTER S108 |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S108x=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Determines device mode, stop bits, parity, |
| | speed. Values in hexidecimal |
|------------------------------------------------------------|
| Command | Function |
|------------+-----------------------------------------------|
| x=0 | PHONE 2 service |
|------------+-----------------------------------------------|
| x=2 | ISDN data service |
|------------+-----------------------------------------------|
| x=3 | PHONE 1 service |
|------------+-----------------------------------------------|
| Value | Function |
| (hex) | |
|------------------------------------------------------------|
| 00 | Default values: 64kbps. 8 data bits, 1 stop |
| | bit, no parity, no high-layer compatibility |
|--------------+---------------------------------------------|
| 01 | ISDN mode |
|--------------+---------------------------------------------|
| 02 | Analog mode, fax group 3 |
|--------------+---------------------------------------------|
| 03 | Data mode |
|--------------+---------------------------------------------|
| 04 | BTX mode, fax group 3,4 |
|--------------+---------------------------------------------|
| 08 | Even parity |
|--------------+---------------------------------------------|
| 10 | 2 stop bits |
|--------------+---------------------------------------------|
| 20 | 7 data bits |
|--------------+---------------------------------------------|
| 28 | Teletex service |
|--------------+---------------------------------------------|
| 31 | Teletex service |
|--------------+---------------------------------------------|
| 32 | Information interworking for video |
|--------------+---------------------------------------------|
| 35 | Teletex service |
|--------------+---------------------------------------------|
| 38 | message handling systems |
|--------------+---------------------------------------------|
| 40 | 38.4Kbps async mode |
|--------------+---------------------------------------------|
| 41 | OSI application |
|--------------+---------------------------------------------|
| A0, C0 | V.110 sync mode at 1200bps |
|--------------+---------------------------------------------|
| A3, C3 | 2400bps |
|--------------+---------------------------------------------|
| A4, C4 | 4800bps |
|--------------+---------------------------------------------|
| A5, C5 | 9600bps |
|--------------+---------------------------------------------|
| A6, C6 | 14.4Kbps |
|--------------+---------------------------------------------|
| A7, C7 | 19.2Kbps |
|--------------+---------------------------------------------|
| A8 | 48.0Kbps |
|--------------+---------------------------------------------|
| A9 | 56.0Kbps |
|--------------+---------------------------------------------|
| AA | 56.oKbps |
|--------------+---------------------------------------------|
| AF | In-band negotiation |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SECURITY CALLBACK |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S64=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | 1sec |
|--------------+---------------------------------------------|
| Description: | Sets security callback timer |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUB-THRESHOLD FOR BOD |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S127=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | Kbps |
|--------------+---------------------------------------------|
| Description: | Determines the sub-threshold for BOD |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S16=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-125 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls loopback tests, analog, digital |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | Local analog loopback not in progress |
| | | |
| | 1 | Local analog loopback in progress |
|------+-------+---------------------------------------------|
| 1 | 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | 0 | Local digital loopback not in progress |
| | | |
| | 1 | Local digital loopback in progress |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.110 USER RATE |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S117=n [cmds] |
|--------------+---------------------------------------------|
| Range: | Unidentified |
|--------------+---------------------------------------------|
| Unit: | Unidentified |
|--------------+---------------------------------------------|
| Description: | Sets V.110 user rate |
+------------------------------------------------------------+
