       # MIRO COMPUTER PRODUCTS, INC.

          MWAVE P&P ADAPTER

          Card Type              Modem/Communication Adapter card
          Chip Set               Unidentified
          I/O Options:           Analog telephone port (RJ-11), internal
                                 telephone & microphone connector
          Maximum Modem Rate     28.8Kbps
          Maximum Fax Rate       14.4Kbps
          Data Modulation        Bell 103/212A
          Protocol
                                 ITU-T V.22, V.22bis, V.32, V.32bis,
                                 V.34
          Fax Modulation         ITU-T V.17, V.27ter, V.29
          Protocol
          Error                  MNP5, V.42, V.42bis
          Correction/Compression
          Fax Class              Class I & II
          Data Bus               16-bit ISA

   IMG IMG 1


          +------------------------------------------------------------+

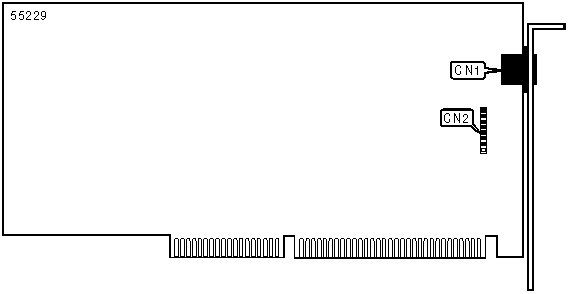

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |    Function    |    Label     |    Function    |   Label   |
          |------------------------------------------------------------|
          | Telephone port        |      CN1       | Microphone | CN2/ |
          | (RJ-11)               |                | connector  | pins |
          |                       |                |            | 6-8  |
          |-----------------------+----------------+------------+------|
          | Internal telephone    |  CN2/pins 1-5  |            |      |
          | connector             |                |            |      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   SUPPORTED COMMAND SET                    |
          |------------------------------------------------------------|
          |                     Basic AT Commands                      |
          |------------------------------------------------------------|
          | AT, ‘+++’, A/                                              |
          |------------------------------------------------------------|
          | A, B, E, F, M, P, Q, T, V, X, Y                            |
          |------------------------------------------------------------|
          | &E, &V, &W, &Z                                             |
          |------------------------------------------------------------|
          |                    Extended AT Commands                    |
          |------------------------------------------------------------|
          | \B \L, \V                                                  |
          |------------------------------------------------------------|
          | %E                                                         |
          |------------------------------------------------------------|
          |                      Special Commands                      |
          |------------------------------------------------------------|
          | "H, "N                                                     |
          |------------------------------------------------------------|
          | +MS                                                        |
          |------------------------------------------------------------|
          |                        S Registers                         |
          |------------------------------------------------------------|
          | S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12,     |
          | S25, S30, S32, S33                                         |
          |------------------------------------------------------------|
          |                                                            |
          |------------------------------------------------------------|
          | Note: See MHI Help File for full command documentation.    |
          +------------------------------------------------------------+

                            PROPRIETARY AT COMMAND SET

          For a full command summary, see MIRO COMPUTER PRODUCTS, INC.,
                               MIROMEDIA ONLINE PNP
