# PUREDATA, LTD.
SATISFAXTION MODEM/300
Modem Type Data (asynchronous)/Fax
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 9600bps
Data Bus 8-bit ISA
Fax Class Class I
Data Modulation Protocol Bell 103A/212A
ITU-T V.22, V.22bis, V.32, V.32bis
Fax Modulation Protocol ITU-T V.27ter, V.29
Error MNP5, V.42, V.42bis
Correction/Compression
IMG IMG 1
+------------------------------------------------------------+

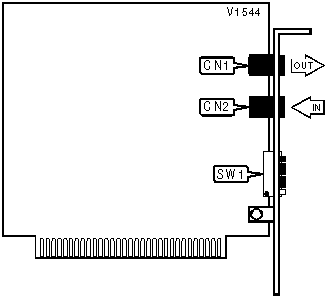

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Line out | CN1 | Line in | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Port | SW1/A | SW1/B |
|--------------------+-------------------+-------------------|
| COM1: (3F8h) | On | On |
|--------------------+-------------------+-------------------|
| » COM2: (2F8h) | Off | On |
|--------------------+-------------------+-------------------|
| COM3: (3E8h) | On | Off |
|--------------------+-------------------+-------------------|
| COM4: (2E8h) | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | SW1/C | SW1/D | SW1/E | SW1/F |
|----------+------------+------------+-----------+-----------|
| 2 | On | Off | Off | Off |
|----------+------------+------------+-----------+-----------|
| » 3 | Off | On | Off | Off |
|----------+------------+------------+-----------+-----------|
| 4 | Off | Off | On | Off |
|----------+------------+------------+-----------+-----------|
| 5 | Off | Off | Off | On |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| ACCEPT RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Un |
|--------------+---------------------------------------------|
| Example: | AT \U<CR> |
|--------------+---------------------------------------------|
| Description: | Accepts remote modem’s request for reliable |
| | link. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-RETRAIN - FALLBACK/FALLFORWARD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %En [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %E1 <CR> |
|--------------+---------------------------------------------|
| Description: | Controls auto-retrain mode and |
| | fallback/fall forward. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %E0 | Auto-retrain disabled. |
|--------------+---------------------------------------------|
| » %E1 | Auto-retrain enabled. |
|--------------+---------------------------------------------|
| %E2 | Fallback/fall forward enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S14 |
|------------------------------------------------------------|
| Format | AT [cmds] S14? [cmds] |
|-----------------+------------------------------------------|
| Example: | ATS14?<CR> |
|-----------------+------------------------------------------|
| Default: | Read only |
|-----------------+------------------------------------------|
| Range: | 0-255 |
|-----------------+------------------------------------------|
| Unit: | Bit-mapped. |
|-----------------+------------------------------------------|
| Description: | Displays echo, result codes, result code |
| | display, dial mode, and answer/originate |
| | mode. |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+------------+------------------------------------|
| 0 | 1 | Not used. |
|----------+------------+------------------------------------|
| 1 | 0 » 1 | Command echo disabled. |
| | | |
| | | Command echo enabled. |
|----------+------------+------------------------------------|
| 2 | » 0 1 | Result codes enabled. |
| | | |
| | | Result codes disabled. |
|----------+------------+------------------------------------|
| 3 | 0 » 1 | Display result codes in numeric |
| | | format. |
| | | |
| | | Display result codes in verbose |
| | | format. |
|----------+------------+------------------------------------|
| 4 | 0 | Not used. |
|----------+------------+------------------------------------|
| 5 | » 0 1 | Tone dial enabled. |
| | | |
| | | Pulse dial enabled. |
|----------+------------+------------------------------------|
| 6 | 0 | Not used. |
|----------+------------+------------------------------------|
| 7 | 0 » 1 | Answer mode enabled. |
| | | |
| | | Originate mode enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S21 |
|------------------------------------------------------------|
| Format | AT [cmds] S21? [cmds] |
|----------------+-------------------------------------------|
| Example: | ATS21?<CR> |
|----------------+-------------------------------------------|
| Default: | Read only |
|----------------+-------------------------------------------|
| Range: | 0 - 255 |
|----------------+-------------------------------------------|
| Unit: | Bit-mapped |
|----------------+-------------------------------------------|
| Description: | Displays low DTR action, DCD signal, DSR |
| | signal, and the Long Space Disconnect |
| | function. |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+-------+-----------------------------------------|
| 2 - 0 | 010 | Not used. |
|----------+-------+-----------------------------------------|
| 4, 3 | 00 01 | DTR signal ignored. |
| | » 10 | |
| | 11 | Modem goes to command mode on low DTR. |
| | | |
| | | Modem disconnects on low DTR. |
| | | Auto-Answer is disabled. |
| | | |
| | | Modem is initialized on low DTR. |
|----------+-------+-----------------------------------------|
| 5 | 0 » 1 | DCD forced high. |
| | | |
| | | DCD normal. |
|----------+-------+-----------------------------------------|
| 6 | » 0 1 | DSR forced high. |
| | | |
| | | DSR normal. |
|----------+-------+-----------------------------------------|
| 7 | » 0 1 | Long Space Disconnect function |
| | | disabled. |
| | | |
| | | Long Space Disconnect function enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S22 |
|------------------------------------------------------------|
| Format | AT [cmds] S22? [cmds] |
|----------------+-------------------------------------------|
| Example: | AT S22?<CR> |
|----------------+-------------------------------------------|
| Default: | Read only |
|----------------+-------------------------------------------|
| Range: | 0 - 255 |
|----------------+-------------------------------------------|
| Unit: | Bit-mapped. |
|----------------+-------------------------------------------|
| Description: | Displays volume and speaker settings, |
| | result codes, and make/break pulse ratio. |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+-------+----------------------------------------|
| 1, 0 | 00 01 | Lowest volume setting. |
| | » 10 | |
| | 11 | Low volume setting. |
| | | |
| | | Medium volume setting |
| | | |
| | | Highest volume setting. |
|-----------+-------+----------------------------------------|
| 3, 2 | 00 » | Speaker disabled. |
| | 01 10 | |
| | 11 | Speaker enabled until carrier signal |
| | | detected |
| | | |
| | | Speaker enabled. |
| | | |
| | | Speaker enabled following dialing, |
| | | then disabled after carrier signal |
| | | detected. |
|-----------+-------+----------------------------------------|
| 6, 5 ,4 | 000 | Busy and dialtone detection disabled, |
| | 100 | result codes 0-4 enabled. |
| | 101 | |
| | 110 » | Busy and dialtone detection disabled, |
| | 111 | result codes 0-5, 10 enabled. |
| | | |
| | | Busy tone detection disabled, dialtone |
| | | detection enabled, result codes 0-6, |
| | | 10 enabled. |
| | | |
| | | Busy tone detection enabled, dialtone |
| | | detection disabled, result codes 0-5, |
| | | 7, 10 enabled. |
| | | |
| | | Busy and dialtone detection enabled, |
| | | result codes 0-7, 10 enabled. |
|-----------+-------+----------------------------------------|
| 7 | » 0 1 | 39/61ms at 10pps (North America) |
| | | |
| | | 33/67ms at 10pps (Europe) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S23 |
|------------------------------------------------------------|
| Format | AT [cmds] S23? [cmds] |
|-----------------+------------------------------------------|
| Example: | ATS23?<CR> |
|-----------------+------------------------------------------|
| Default: | Read only |
|-----------------+------------------------------------------|
| Range: | 0-255 |
|-----------------+------------------------------------------|
| Unit: | Bit-mapped |
|-----------------+------------------------------------------|
| Description: | Displays DTE rate and parity. |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+---------+--------------------------------------|
| 0 | 1 | Not used. |
|-----------+---------+--------------------------------------|
| 3, 2, 1 | 000 | Sets serial port speed to 0-300bps. |
| | | |
| | 001 | Sets serial port speed to 600bps. |
| | | |
| | 010 | Sets serial port speed to 1200bps. |
| | | |
| | 011 | Sets serial port speed to 2400bps. |
| | | |
| | 100 | Sets serial port speed to 4800bps. |
| | | |
| | 101 | Sets serial port speed to 9600bps. |
| | | |
| | 110 | Sets serial port speed to 19200bps. |
| | | |
| | 111 | Sets serial port speed to 38400bps. |
|-----------+---------+--------------------------------------|
| 5,4 | » 00 10 | Parity even. |
| | | |
| | | Parity odd. |
|-----------+---------+--------------------------------------|
| 7, 6 | 0 | Not used. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S27 |
|------------------------------------------------------------|
| Format | AT [cmds] S27? [cmds] |
|----------------+-------------------------------------------|
| Example: | ATS27?<CR> |
|----------------+-------------------------------------------|
| Default: | Read only |
|----------------+-------------------------------------------|
| Range: | 0 - 255 |
|----------------+-------------------------------------------|
| Unit: | Bit-mapped |
|----------------+-------------------------------------------|
| Description: | Displays protocol type. |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+-------+-----------------------------------------|
| 1 - 0 | 0 | Not used. |
|----------+-------+-----------------------------------------|
| 5 - 3 | 0 | Not used. |
|----------+-------+-----------------------------------------|
| 6 | 0 » 1 | Select CCITT protocols. |
| | | |
| | | Select Bell protocols. |
|----------+-------+-----------------------------------------|
| 7, 2 | 0 | Not used. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK SEND |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Bn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \B3 &W<CR> |
|--------------+---------------------------------------------|
| Default: | 3 |
|--------------+---------------------------------------------|
| Range: | 1-9 |
|--------------+---------------------------------------------|
| Unit: | .1 second |
|--------------+---------------------------------------------|
| Description: | Sends break to modem. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Kn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \K1 <CR> |
|--------------+---------------------------------------------|
| Description: | Configures action of break signal. |
|------------------------------------------------------------|
| Command | Break from | Break from | Modem |
| | DTE | remote modem | receives \B |
|---------------+--------------+--------------+--------------|
| \K0 | Enter | Buffers | Send break |
| | command | cleared and | to remote |
| | mode, do not | break sent | modem |
| | send break | to DTE. | immediately, |
| | to remote | | then enter |
| | modem. | | command |
| | | | mode. |
|---------------+--------------+--------------+--------------|
| \K1 | Buffers | Buffers | Send break |
| | cleared and | cleared and | to remote |
| | break sent | break sent | modem |
| | to remote | to DTE. | immediately. |
| | modem. | | |
|---------------+--------------+--------------+--------------|
| \K2 | Enter | Send break | Send break |
| | command | to DTE | to remote |
| | mode, do not | immediately. | modem |
| | send break | | immediately, |
| | to remote | | then enter |
| | modem. | | command |
| | | | mode. |
|---------------+--------------+--------------+--------------|
| \K3 | Send break | Send break | Send break |
| | to remote | to DTE | to remote |
| | modem | immediately. | modem |
| | immediately. | | immediately. |
|---------------+--------------+--------------+--------------|
| \K4 | Enter | Break sent | Send break |
| | command | with | to remote |
| | mode, do not | received | modem |
| | send break | data to the | immediately, |
| | to remote | DTE. | then enter |
| | modem. | | command |
| | | | mode. |
|---------------+--------------+--------------+--------------|
| » \K5 | Send break | Break sent | Send break |
| | with | with | to remote |
| | transmitted | received | modem |
| | data. | data to the | immediately. |
| | | DTE. | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT %Cn |
|--------------+---------------------------------------------|
| Example: | AT *EC0 %C1 *AP0<CR> |
|--------------+---------------------------------------------|
| Description: | Selects data compression. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %C0 | Data compression disabled. |
|--------------+---------------------------------------------|
| » %C1 | Data compression enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \N1 DT555-1212<CR> |
|--------------+---------------------------------------------|
| Description: | Sets connect mode. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \N0 | Normal mode enabled. |
|--------------+---------------------------------------------|
| \N1 | Diagnostic mode, select this before |
| | selecting &T commands. |
|--------------+---------------------------------------------|
| \N2 | Reliable mode enabled. |
|--------------+---------------------------------------------|
| » \N3 | Auto-reliable mode enabled. |
|--------------+---------------------------------------------|
| \N4 | LAPM mode enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONVERT TO RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Y [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \Y<CR> |
|--------------+---------------------------------------------|
| Description: | Initiates reliable mode link. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EXTENDED RESULT CODES |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Vn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \V1 %C1<CR> |
|--------------+---------------------------------------------|
| Description: | Selects extended result codes. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \V0 | Extended result codes disabled. |
|--------------+---------------------------------------------|
| \V1 | Reliable result codes enabled. |
|--------------+---------------------------------------------|
| » \V2 | Error correction and compression result |
| | codes enabled. |
|--------------+---------------------------------------------|
| \V3 | DTE speed result codes enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Qn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \Q3 A <CR> |
|--------------+---------------------------------------------|
| Description: | Sets type of flow control used by modem. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \Q0 | Flow control disabled. |
|--------------+---------------------------------------------|
| \Q1 | XON/XOFF flow control enabled. |
|--------------+---------------------------------------------|
| » \Q3 | RTS/CTS flow control enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INACTIVITY TIMER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Tn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT\T5<CR> |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-42 |
|--------------+---------------------------------------------|
| Unit: | 1 minute |
|--------------+---------------------------------------------|
| Description: | Sets the length of time that the modem does |
| | not receive information before it |
| | disconnects. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MAXIMUM BLOCK SIZE FOR TRANSMISSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \An [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \A3 &MB28800<CR> |
|--------------+---------------------------------------------|
| Description: | Sets the maximum transmittable block size. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \A0 | Maximum MNP block size is 64 characters. |
|--------------+---------------------------------------------|
| \A1 | Maximum MNP block size is 128 characters. |
|--------------+---------------------------------------------|
| » \A2 | Maximum MNP block size is 192 characters. |
|--------------+---------------------------------------------|
| \A3 | Maximum MNP block size is 256 characters. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ON-LINE IN RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \O |
|--------------+---------------------------------------------|
| Example: | AT \O <CR> |
|--------------+---------------------------------------------|
| Description: | Returns to on-line and requests reliable |
| | mode connection. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PROTOCOL/SPEED |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S31=n [cmds] |
|--------------+---------------------------------------------|
| Example: | AT S31=0 <CR> |
|--------------+---------------------------------------------|
| Description: | Selects the maximum DCE speed. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| » S31=0 | Select last speed at AT command. |
|--------------+---------------------------------------------|
| S31=3 | Select 300bps speed. |
|--------------+---------------------------------------------|
| S31=5 | Select 1200bps speed. |
|--------------+---------------------------------------------|
| S31=6 | Select 2400bps speed. |
|--------------+---------------------------------------------|
| S31=7 | Select 4800bps speed. |
|--------------+---------------------------------------------|
| S31=8 | Select 7200bps speed. |
|--------------+---------------------------------------------|
| S31=9 | Select 9600bps speed. |
|--------------+---------------------------------------------|
| S31=10 | Select 12Kbps speed. |
|--------------+---------------------------------------------|
| S31=11 | Select 14.4Kbps speed. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RETURN TO RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Z [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \Z <CR> |
|--------------+---------------------------------------------|
| Description: | Ends reliable mode link, initiate return to |
| | normal mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Format | AT [cmds] S16=n [cmds] |
|----------------+-------------------------------------------|
| Example: | ATS16=40<CR> |
|----------------+-------------------------------------------|
| Default: | 0 |
|----------------+-------------------------------------------|
| Range: | 0-125 |
|----------------+-------------------------------------------|
| Unit: | Bit-mapped |
|----------------+-------------------------------------------|
| Description: | Controls loopback tests, analog, digital, |
| | remote digital, and self tests. |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+--------+----------------------------------------|
| 0 | » 0 1 | Local analog loopback not in progress. |
| | | |
| | | Local analog loopback in progress. |
|----------+--------+----------------------------------------|
| 1 | » 0 | Not used. |
|----------+--------+----------------------------------------|
| 5 - 1 | 0 | Not used. |
|----------+--------+----------------------------------------|
| 6 | » 0 1 | Local analog loopback w/ self-test not |
| | | in progress. |
| | | |
| | | Local analog loopback w/ self-test in |
| | | progress. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.42bis COMPRESSION CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] "Hn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT "H3 &W<CR> |
|--------------+---------------------------------------------|
| Description: | Controls V.42bis data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| "H0 | V.42bis disabled. |
|--------------+---------------------------------------------|
| "H1 | V.42bis when transmitting enabled. |
|--------------+---------------------------------------------|
| "H2 | V.42bis when receiving enabled. |
|--------------+---------------------------------------------|
| » "H3 | V.42bis when transmitting/receiving |
| | enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| XON/XOFF PASS-THROUGH |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Xn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \X1 O<CR> |
|--------------+---------------------------------------------|
| Description: | Selects whether XON/XOFF signals are sent |
| | to remote modem. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| » \X0 | XON/XOFF signals trapped by local modem. |
|--------------+---------------------------------------------|
| \X1 | XON/XOFF passed through local modem. |
+------------------------------------------------------------+
