# PROMETHEUS
ULTIMA HOME OFFICE 14.4 MAC
Card Type Fax, Modem (synchronous/asynchronous),
Voice
Chip Set Unidentified
I/O Options Voice-mail
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Bus External
Fax Class Class I & II
Data Modulation Bell 103/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
IMG IMG 1
+------------------------------------------------------------+

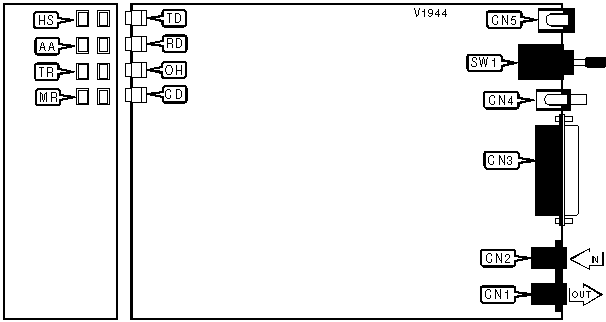

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line out | CN1 | Speaker out | CN4 |
|---------------------------+----------+--------------+------|
| Line in | CN2 | DC power | CN5 |
|---------------------------+----------+--------------+------|
| RS-232/422 | CN3 | Power switch | SW1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+-------+----------+-----------------------------------|
| HS | Red | On | Modem is operating at 9600bps or |
| | | | faster |
|-----+-------+----------+-----------------------------------|
| HS | Red | Off | Modem is operating at slower than |
| | | | 9600bps |
|-----+-------+----------+-----------------------------------|
| AA | Red | On | Auto-answer enabled |
|-----+-------+----------+-----------------------------------|
| AA | Red | Off | Auto-answer disabled |
|-----+-------+----------+-----------------------------------|
| CD | Red | On | Carrier signal detected |
|-----+-------+----------+-----------------------------------|
| CD | Red | Off | Carrier signal not detected |
|-----+-------+----------+-----------------------------------|
| OH | Red | On | Modem is off-hook |
|-----+-------+----------+-----------------------------------|
| OH | Red | Off | Modem is on-hook |
|-----+-------+----------+-----------------------------------|
| RD | Red | Blinking | Modem is receiving data |
|-----+-------+----------+-----------------------------------|
| RD | Red | Off | Modem is not receiving data |
|-----+-------+----------+-----------------------------------|
| TD | Red | Blinking | Modem is transmitting data |
|-----+-------+----------+-----------------------------------|
| TD | Red | Off | Modem is not transmitting data |
|-----+-------+----------+-----------------------------------|
| TR | Red | On | DTR signal is high |
|-----+-------+----------+-----------------------------------|
| TR | Red | Off | DTR signal is low |
|-----+-------+----------+-----------------------------------|
| MR | Red | On | Power is on |
|-----+-------+----------+-----------------------------------|
| MR | Red | Off | Power is off |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| ACCEPT MNP RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \U [cmds] |
|--------------+---------------------------------------------|
| Description: | Accept remote modem’s request for MNP |
| | reliable mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-FALLBACK/FALL-FORWARD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects auto-fallback/fall-forward |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í %G1 | Auto-fallback/fall-forward disabled |
|--------------+---------------------------------------------|
| %G0 | Auto-fallback/fall-forward enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-RELIABLE FALLBACK CHARACTER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %An [cmds] |
|--------------+---------------------------------------------|
| Default: | 13 |
|--------------+---------------------------------------------|
| Range: | 0-127 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used as the |
| | auto-reliable fallback character; %A0 will |
| | disable this function. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-RELIABLE TIME BUFFER CONFIGURATION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the handling of incoming data |
| | during auto-reliable time period |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \C0 | Data is discarded |
|--------------+---------------------------------------------|
| \C1 | Data is buffered |
|--------------+---------------------------------------------|
| \C2 | Data is discarded; modem returns to normal |
| | mode on receiving auto-reliable fallback |
| | character. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-RETRAIN |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %En [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls auto-retrain mode |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %E0 | Auto-retrain disabled |
|--------------+---------------------------------------------|
| í %E1 | Auto-retrain enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK SEND |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Bn [cmds] |
|--------------+---------------------------------------------|
| Default: | 3 |
|--------------+---------------------------------------------|
| Range: | 1-9 |
|--------------+---------------------------------------------|
| Unit: | .1 second |
|--------------+---------------------------------------------|
| Description: | Sends break to modem |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Kn [cmds] |
|--------------+---------------------------------------------|
| Default: | 5 |
|--------------+---------------------------------------------|
| Range: | 0-5 |
|--------------+---------------------------------------------|
| Description: | Configures action of break signal |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %C0 | Data compression disabled |
|--------------+---------------------------------------------|
| í %C1 | MNP5 enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the type of connection the modem |
| | will operate in |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \N0 | Normal mode enabled |
|--------------+---------------------------------------------|
| \N1 | Direct mode enabled |
|--------------+---------------------------------------------|
| \N2 | MNP reliable mode enabled |
|--------------+---------------------------------------------|
| í \N3 | Auto-reliable mode enabled |
|--------------+---------------------------------------------|
| \N4 | V.42 reliable mode enabled |
|--------------+---------------------------------------------|
| \N5 | MNP auto-reliable mode enabled |
|--------------+---------------------------------------------|
| \N6 | Reliable mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONVERT TO MNP RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Y [cmds] |
|--------------+---------------------------------------------|
| Description: | Converts to MNP reliable mode from normal |
| | or direct mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EXTENDED RESULT CODES |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Vn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects extended result codes |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| » \V0 | Standard result codes enabled |
|--------------+---------------------------------------------|
| \V1 | Error correction result codes enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem port flow control |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \G0 | Flow control disabled |
|--------------+---------------------------------------------|
| \G1 | Flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Qn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets type of flow control used by modem |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \Q0 | Flow control disabled |
|--------------+---------------------------------------------|
| \Q1 | Bi-directional XON/XOFF flow control |
| | enabled |
|--------------+---------------------------------------------|
| \Q2 | CTS flow control by DCE enabled |
|--------------+---------------------------------------------|
| í \Q3 | Bi-directional RTS/CTS flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INACTIVITY TIMER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Tn [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-90 |
|--------------+---------------------------------------------|
| Unit: | 1 minute |
|--------------+---------------------------------------------|
| Description: | Sets the length of time that the modem does |
| | not receive information before it |
| | disconnects. \T=0 will disable timer. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INITIATE MNP RELIABLE MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \O [cmds] |
|--------------+---------------------------------------------|
| Description: | Initiates MNP reliable mode from normal or |
| | direct mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL LEVEL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %L [cmds] |
|--------------+---------------------------------------------|
| Description: | Returns a value which indicates the |
| | received line signal level |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL QUALITY |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Q [cmds] |
|--------------+---------------------------------------------|
| Description: | Returns a value which indicates line signal |
| | quality |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LOCK SERIAL PORT |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Jn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets operation of serial port speed |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \J0 | Serial speed follows connect speed |
|--------------+---------------------------------------------|
| \J1 | Serial speed locked |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MAXIMUM BLOCK SIZE FOR TRANSMISSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \An [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum transmittable block size |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \A0 | MNP block size is 64 characters |
|--------------+---------------------------------------------|
| \A1 | MNP block size is 128 characters |
|--------------+---------------------------------------------|
| \A2 | MNP block size is 192 characters |
|--------------+---------------------------------------------|
| í \A3 | MNP block size is 256 characters |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MNP RESULT CODES |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Vn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects MNP result codes |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \V0 | MNP result codes disabled |
|--------------+---------------------------------------------|
| \V1 | MNP result codes enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MNP - STREAM/BLOCK MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the transfer mode for MNP link |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \L0 | Stream mode for MNP enabled |
|--------------+---------------------------------------------|
| \L1 | Block mode for MNP enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports product ID |
|--------------+---------------------------------------------|
| I1 | Reports ROM checksum |
|--------------+---------------------------------------------|
| I2 | Tests and reports ROM checksum |
|--------------+---------------------------------------------|
| I3 | Reports ROM |
|--------------+---------------------------------------------|
| I4 | Reports modem capabilities |
|--------------+---------------------------------------------|
| I9 | Reports modem serial number and product |
| | code |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SWITCH TO NORMAL MODE |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Z [cmds] |
|--------------+---------------------------------------------|
| Description: | Switches to normal mode from MNP mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.32 - AUTO-RETRAIN |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Bn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls auto-retrain function if poor line |
| | quality is detected |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &B0 | Auto-retrain disabled modem hangs-up |
|--------------+---------------------------------------------|
| í &B1 | Auto-retrain enabled if line quality is |
| | poor |
|--------------+---------------------------------------------|
| &B2 | Auto-retrain disabled modem doesn’t hang-up |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.42 - DETECTION PHASE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] -Jn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls V.42 detection |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| -J0 | V.42 detection disabled |
|--------------+---------------------------------------------|
| í -J1 | V.42 detection enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.42bis - COMPRESSION CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] "Hn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls V.42bis data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| "H0 | V.42bis disabled |
|--------------+---------------------------------------------|
| "H1 | V.42bis when transmitting enabled |
|--------------+---------------------------------------------|
| "H2 | V.42bis when receiving enabled |
|--------------+---------------------------------------------|
| í "H3 | V.42bis when transmitting/receiving enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.42bis - ERASE DICTIONARY |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %P [cmds] |
|--------------+---------------------------------------------|
| Description: | Erases V.42bis dictionary |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.42bis - MAXIMUM STRING LENGTH |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] "On [cmds] |
|--------------+---------------------------------------------|
| Default: | Unidentified |
|--------------+---------------------------------------------|
| Range: | 6-250 |
|--------------+---------------------------------------------|
| Unit: | Characters |
|--------------+---------------------------------------------|
| Description: | Selects string size for V.42bis compression |
+------------------------------------------------------------+
+------------------------------------------------------------+
| XON/XOFF PASS-THROUGH |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Xn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects whether XON/XOFF signals are sent |
| | to remote modem |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \X0 | XON/XOFF signals trapped by local modem |
|--------------+---------------------------------------------|
| \X1 | XON/XOFF passed through local modem |
+------------------------------------------------------------+
