# PROMETHEUS PRODUCTS, INC.
PC PROMODEM 144E (REV.1), MAC PROMODEM 144E (REV.1)
Card Type Fax, Modem (synchronous/asynchronous)
Chip Set Unidentified
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Bus External
Data Modulation Bell 103/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34
Rockwell V.FC
Error MNP5, V.42, V.42bis
Correction/Compression

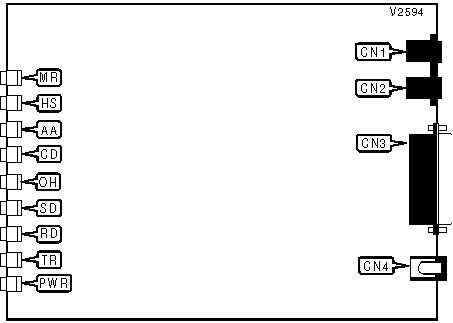

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line out | CN1 | RS-232/422 | CN3 |
|-----------------------------+----------+------------+------|
| Line in | CN2 | DC power | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+-------+----------+-----------------------------------|
| MR | Red | On | Modem is ready |
|-----+-------+----------+-----------------------------------|
| MR | Red | Off | Self-test failed |
|-----+-------+----------+-----------------------------------|
| MR | Red | Blinking | Self-test in progress |
|-----+-------+----------+-----------------------------------|
| HS | Red | On | Modem is operating at highest |
| | | | speed available |
|-----+-------+----------+-----------------------------------|
| HS | Red | Off | Modem is operating at slower |
| | | | speed available |
|-----+-------+----------+-----------------------------------|
| AA | Red | On | Auto-answer enabled |
|-----+-------+----------+-----------------------------------|
| AA | Red | Off | Auto-answer disabled |
|-----+-------+----------+-----------------------------------|
| CD | Red | On | Carrier signal detected |
|-----+-------+----------+-----------------------------------|
| CD | Red | Off | Carrier signal not detected |
|-----+-------+----------+-----------------------------------|
| OH | Red | On | Modem is off-hook |
|-----+-------+----------+-----------------------------------|
| OH | Red | Off | Modem is on-hook |
|-----+-------+----------+-----------------------------------|
| SD | Red | On | Modem is transmitting data |
|-----+-------+----------+-----------------------------------|
| SD | Red | Off | Modem is not transmitting data |
|-----+-------+----------+-----------------------------------|
| RD | Red | On | Modem is receiving data |
|-----+-------+----------+-----------------------------------|
| RD | Red | Off | Modem is not receiving data |
|-----+-------+----------+-----------------------------------|
| TR | Red | On | DTR signal is high |
|-----+-------+----------+-----------------------------------|
| TR | Red | Off | DTR signal is low |
|-----+-------+----------+-----------------------------------|
| PWR | Red | On | Power is on |
|-----+-------+----------+-----------------------------------|
| PWR | Red | Off | Power is off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Note: This modem uses MaxFax software to send and |
| receive faxes. |
+------------------------------------------------------------+
Proprietary AT Command Set
See document V2265 for a full command summary.
