# PATTON ELECTRONICS COMPANY
1092
Card Type Modem
Chip Set Unidentified
I/O Options AC power connector, DTE/DCE serial port,
network interface via RJ-45 connector
Wiring Type RJ-45 shielded twisted pair
Maximum Data Rate 128Kbps (synchronous), 38.4Kbps
(asynchronous)
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

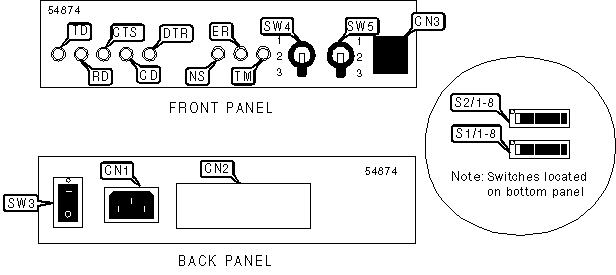

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| AC power | CN1 | Network interface | CN3 |
| connector | | via RJ-45 connector | |
|--------------+-----------+----------------------+----------|
| DTE/DCE port | CN2 | Power switch | SW3 |
| (quick | | | |
| connect | | | |
| module) | | | |
|------------------------------------------------------------|
| Note: | Quick connect serial interface module can be |
| | configured as a V.24/RS-232, V.35, RS422/530, or |
| | X.21 port |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-----------------------------------------+-------+----------|
| í DSR on during local line loop | S1/3 | On |
|-----------------------------------------+-------+----------|
| DSR off during local line loop | S1/3 | Off |
|-----------------------------------------+-------+----------|
| í Modem ignores RDL requests from | S1/8 | Off |
| remote modem | | |
|-----------------------------------------+-------+----------|
| Modem responds to remote digital | S1/8 | On |
| loopback requests from remote modem | | |
|-----------------------------------------+-------+----------|
| í Factory configured - do not alter | S2/1 | Off |
|-----------------------------------------+-------+----------|
| í Factory configured - do not alter | S2/2 | Off |
|-----------------------------------------+-------+----------|
| í Modem ignores LAL requests from DTE | S2/3 | Off |
|-----------------------------------------+-------+----------|
| Modem responds to local analog loopback | S2/3 | On |
| requests from DTE | | |
|-----------------------------------------+-------+----------|
| í Factory configured - do not alter | S2/4 | Off |
|-----------------------------------------+-------+----------|
| í Factory configured - do not alter | S2/5 | Off |
|-----------------------------------------+-------+----------|
| í Modem responds to remote digital | S2/6 | On |
| loopback requests from DTE | | |
|-----------------------------------------+-------+----------|
| Modem ignores RDL requests from DTE | S2/6 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ASYC/SYNC OPERATION |
|------------------------------------------------------------|
| Setting | S1/4 | S1/5 |
|------------------------------------------------------------|
| í Factory configured - do not alter | Off | Off |
| (async/sync operation enabled) | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA RATE |
|------------------------------------------------------------|
| Synchronous Data Rate | Asynchronous Data | S1/1 | S1/2 |
| | Rate | | |
|------------------------------------------------------------|
| 32Kbps | Reserved | On | On |
|------------------------------------------------------------|
| 56Kbps | Reserved | Off | On |
|----------------+------------------------+------------+-----|
| í 64Kbps | Reserved | On | Off |
|----------------+------------------------+------------+-----|
| 128Kbps | 0-38.4Kbps | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMIT CLOCK SOURCE |
|------------------------------------------------------------|
| Source | S1/6 | S1/7 |
|----------------------------------------------+------+------|
| í Transmit clock generated internally | On | On |
|----------------------------------------------+------+------|
| Transmit clock derived from terminal | Off | On |
| interface | | |
|----------------------------------------------+------+------|
| Transmit clock derived from receive line | On | Off |
| signal | | |
|----------------------------------------------+------+------|
| Hardware reset | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONTROL PORT DATA RATE |
|------------------------------------------------------------|
| Setting | S2/7 | S2/8 |
|------------------------------------------------------------|
| í 9600bps | On | On |
|------------------------------------------------------------|
| 19.2Kbps | Off | On |
|------------------------------------+--------+--------------|
| 38.4Kbps | On | Off |
|------------------------------------+--------+--------------|
| 57.6Kbps | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LOOPBACK TEST SELECTOR |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| Activates local analog loopback | SW4 | 1 |
|-----------------------------------------+-------+----------|
| Normal operation. Loopback not | SW4 | 2 |
| activated | | |
|-----------------------------------------+-------+----------|
| Remote digital loopback initiated | SW4 | 3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST PATTERN GENERATOR |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| 511/E test pattern transmitted | SW5 | 1 |
| (intentional errors inserted) | | |
|-----------------------------------------+-------+----------|
| Normal operation. Test pattern not | SW5 | 2 |
| activated | | |
|-----------------------------------------+-------+----------|
| 511 test pattern transmitted | SW5 | 3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+-------+--------+-------------------------------------|
| TD | Red | On | Data is being transmitted (low |
| | | | logic level, device idle) |
|-----+-------+--------+-------------------------------------|
| TD | Green | On | Data is being transmitted (high |
| | | | logic level) |
|-----+-------+--------+-------------------------------------|
| TD | None | Off | Data is not being transmitted |
|-----+-------+--------+-------------------------------------|
| RD | Red | On | Data is being received (low logic |
| | | | level, device idle) |
|-----+-------+--------+-------------------------------------|
| RD | Green | On | Data is being received (high logic |
| | | | level) |
|-----+-------+--------+-------------------------------------|
| RD | None | Off | Data is not being received |
|-----+-------+--------+-------------------------------------|
| CTS | Green | On | CTS signal is high |
|-----+-------+--------+-------------------------------------|
| CTS | Green | Off | CTS signal is low |
|-----+-------+--------+-------------------------------------|
| CD | Green | On | Carrier signal detected |
|-----+-------+--------+-------------------------------------|
| CD | Red | On | Carrier signal not detected |
|-----+-------+--------+-------------------------------------|
| DTR | Green | On | DTR signal is high |
|-----+-------+--------+-------------------------------------|
| DTR | Green | Off | DTR signal is low |
|-----+-------+--------+-------------------------------------|
| NS | Red | On | Local modem is not connected to |
| | | | remote modem |
|-----+-------+--------+-------------------------------------|
| NS | Red | Off | Local modem is connected to remote |
| | | | modem |
|-----+-------+--------+-------------------------------------|
| ER | Red | On | Bit error likely in received signal |
| | | | or error detected in 511 or 511/E |
| | | | test pattern |
|-----+-------+--------+-------------------------------------|
| ER | Red | Off | Error not detected |
|-----+-------+--------+-------------------------------------|
| TM | Red | On | Device has been placed in test mode |
| | | | by local or remote user |
|-----+-------+--------+-------------------------------------|
| TM | Red | Off | Device is not conducting a test |
+------------------------------------------------------------+
