# RAD DATA COMMUNICATIONS
ACE-20-T1
Card Type ATM Access Concentrator
NIC Type T1, ISDN
Chip Set Unidentified
I/O Options AC power connector, DTE/DCE ports (2), alarm
relay terminal block
9-pin serial port(2), T1 network interface via
RJ-48 connectors (2)
Wiring Type T1
T1 Transfer 1.544Mbps
Protocol
Frame Type ESF, SF
Frame Relay ATM PVC
T1 Protocol AMI, B7ZS, B8ZS
Data Bus External

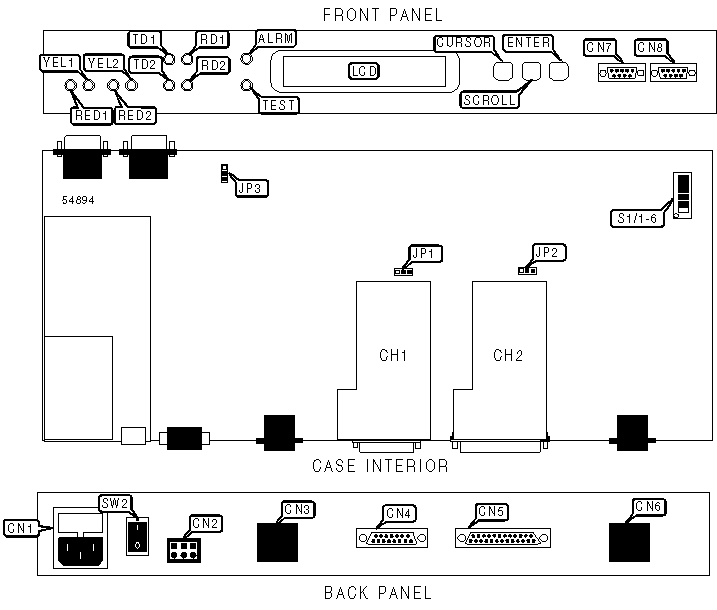

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| AC power connector | CN1 | Main T1 network | CN6 |
| | | port (RJ-48 | |
| | | connector) | |
|-------------------------+-------+------------------+-------|
| Alarm relay terminal | CN2 | DTE serial port | CN7 |
| block | | | |
|-------------------------+-------+------------------+-------|
| Sub T1 network port | CN3 | DCE serial port | CN8 |
| (RJ-48 connector) | | | |
|-------------------------+-------+------------------+-------|
| Channel 1 port (15-pin | CN4 | Power switch | SW2 |
| connector) | | | |
|-------------------------+-------+------------------+-------|
| Channel 2 port (25-pin | CN5 | | |
| connector) | | | |
|------------------------------------------------------------|
| Note: |
| |
| Channel 1 and 2 data ports may have different interfaces |
| than pictured above. Data port options include any |
| combination of the following: 15-pin connector for X.21 |
| interface, 25-pin connector for RS-530 interface, or |
| 34-pin connector for V.35 interface |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-------------------------------------+-------+--------------|
| | DCE timing enabled on port 1 | JP1 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | DTE timing enabled on port 1 | JP1 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | DCE timing enabled on port 2 | JP2 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | DTE timing enabled on port 2 | JP2 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Signal ground is connected to | JP3 | Pins 1 & 2 |
| | the frame ground | | closed |
|---+---------------------------------+-------+--------------|
| | Signal ground is not connected | JP3 | Pins 2 & 3 |
| | to the frame ground | | closed |
|---+---------------------------------+-------+--------------|
| | Local software download enabled | S1/1 | On |
|---+---------------------------------+-------+--------------|
| | Local software download | S1/1 | Off |
| | disabled | | |
|---+---------------------------------+-------+--------------|
| | Data base initialization | S1/2 | On |
| | enabled | | |
|---+---------------------------------+-------+--------------|
| | Data base initialization | S1/2 | Off |
| | disabled | | |
|---+---------------------------------+-------+--------------|
| | Password enabled | S1/3 | On |
|---+---------------------------------+-------+--------------|
| | Password disabled | S1/3 | Off |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | S1/4 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | S1/5 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | S1/6 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LEDS |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----------+--------------+--------+------------------------|
| RED 1 | Unidentified | On | Device is detecting a |
| | | | red alarm condition on |
| | | | the main link |
|-----------+--------------+--------+------------------------|
| RED 1 | Unidentified | Off | Device is not |
| | | | detecting a red alarm |
| | | | condition on the main |
| | | | link |
|-----------+--------------+--------+------------------------|
| YEL 1 | Unidentified | On | Device is detecting a |
| | | | yellow alarm condition |
| | | | on the main link |
|-----------+--------------+--------+------------------------|
| YEL 1 | Unidentified | Off | Device is not |
| | | | detecting a yellow |
| | | | alarm condition on the |
| | | | main link |
|-----------+--------------+--------+------------------------|
| RED 2 | Unidentified | On | Device is detecting a |
| | | | red alarm condition on |
| | | | the sub link |
|-----------+--------------+--------+------------------------|
| RED 2 | Unidentified | Off | Device is not |
| | | | detecting a red alarm |
| | | | condition on the sub |
| | | | link |
|-----------+--------------+--------+------------------------|
| YEL 2 | Unidentified | On | Device is detecting a |
| | | | yellow alarm condition |
| | | | on the sub link |
|-----------+--------------+--------+------------------------|
| YEL 2 | Unidentified | Off | Device is not |
| | | | detecting a yellow |
| | | | alarm condition on the |
| | | | sub link |
|-----------+--------------+--------+------------------------|
| TD1 | Unidentified | On | Device is transmitting |
| | | | data on channel 1 |
|-----------+--------------+--------+------------------------|
| TD1 | Unidentified | Off | Device is not |
| | | | transmitting data on |
| | | | channel 1 |
|-----------+--------------+--------+------------------------|
| RD1 | Unidentified | On | Device is receiving |
| | | | data on channel 1 |
|-----------+--------------+--------+------------------------|
| RD1 | Unidentified | Off | Device is not |
| | | | receiving data on |
| | | | channel 1 |
|-----------+--------------+--------+------------------------|
| TD2 | Unidentified | On | Device is transmitting |
| | | | data on channel 2 |
|-----------+--------------+--------+------------------------|
| TD2 | Unidentified | Off | Device is not |
| | | | transmitting data on |
| | | | channel 2 |
|-----------+--------------+--------+------------------------|
| RD2 | Unidentified | On | Device is receiving |
| | | | data on channel 2 |
|-----------+--------------+--------+------------------------|
| RD2 | Unidentified | Off | Device is not |
| | | | receiving data on |
| | | | channel 2 |
|-----------+--------------+--------+------------------------|
| ALRM | Unidentified | On | Alarms are stored in |
| | | | alarm buffer |
|-----------+--------------+--------+------------------------|
| ALRM | Unidentified | Off | Alarms are not stored |
| | | | in alarm buffer |
|-----------+--------------+--------+------------------------|
| TEST | Unidentified | On | Device is conducting a |
| | | | loopback test |
|-----------+--------------+--------+------------------------|
| TEST | Unidentified | Off | Device is not |
| | | | conducting a loopback |
| | | | test |
+------------------------------------------------------------+
