          VIKOM PRO

          Modem Type                   Data (Asynchronous)/Fax/Voice
          Maximum Data Rate            2400bps
          Maximum Fax Rate             9600bps
          Data Bus                     8-bit ISA
          Fax Class                    Unidentified
          Data Modulation Protocol     Unidentified
          Fax Modulation Protocol      Unidentified
          Error Correction/Compression Unidentified

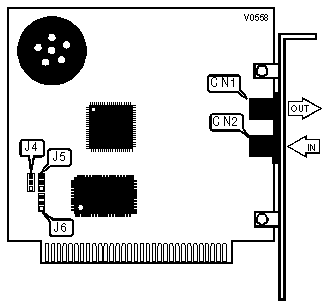

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Purpose      | Location |     Purpose     | Location  |
          |-------------------+----------+-----------------+-----------|
          | Line out          |   CN1    | Line in         |    CN2    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     COM PORT SETTINGS                      |
          |------------------------------------------------------------|
          |     COM     |      J4       |      J5       |      J6      |
          |-------------+---------------+---------------+--------------|
          | í COM2/IRQ3 |  Pins 2 & 3   |  Pins 1 & 2   |  Pins 1 & 2  |
          |             |    closed     |    closed     |    closed    |
          |-------------+---------------+---------------+--------------|
          |  COM1/IRQ4  |  Pins 1 & 2   |  Pins 1 & 2   |  Pins 2 & 3  |
          |             |    closed     |    closed     |    closed    |
          |-------------+---------------+---------------+--------------|
          |  COM3/IRQ4  |  Pins 1 & 2   |  Pins 2 & 3   |  Pins 2 & 3  |
          |             |    closed     |    closed     |    closed    |
          |-------------+---------------+---------------+--------------|
          |  COM4/IRQ3  |  Pins 2 & 3   |  Pins 2 & 3   |  Pins 1 & 2  |
          |             |    closed     |    closed     |    closed    |
          +------------------------------------------------------------+
