# STOLLMANN GMBH
TA+POS
Card Type ISDN TA
Chip Set Unidentified
Maximum Data Rate 64Kbps x 2
Data Bus External
Data Modulation Protocol V.110, 1TR6, DSS1

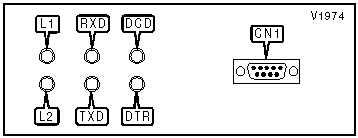

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RS-232/422 | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|--------+-------+--------+----------------------------------|
| RXD | Red | On | TA is receiving data |
|--------+-------+--------+----------------------------------|
| RXD | Red | Off | TA is not receiving data |
|--------+-------+--------+----------------------------------|
| DCD | Red | On | Carrier signal detected |
|--------+-------+--------+----------------------------------|
| DCD | Red | Off | Carrier signal not detected |
|--------+-------+--------+----------------------------------|
| TXD | Red | On | TA is transmitting data |
|--------+-------+--------+----------------------------------|
| TXD | Red | Off | TA is not transmitting data |
|--------+-------+--------+----------------------------------|
| DTR | Red | On | DTR signal is high |
|--------+-------+--------+----------------------------------|
| DTR | Red | Off | DTR signal is low |
|-------------------------+----------------------------------|
| L2 Status | L1 | Condition |
| | Status | |
|--------------+----------+----------------------------------|
| On | On | TA is performing power-up tests |
| | | or is connected |
|--------------+----------+----------------------------------|
| Blinking | Blinking | TA is resetting |
|--------------+----------+----------------------------------|
| Off | On | TA is ready |
|--------------+----------+----------------------------------|
| .25s on, | On | Call is in progress |
| .75s off | | |
|--------------+----------+----------------------------------|
| .75s on, | On | Negotiation is in progress |
| .25s off | | |
|--------------+----------+----------------------------------|
| 1s on, 1s | On | No ISDN signal detected |
| off | | |
|--------------+----------+----------------------------------|
| .5s on, .5s | On | Remote TA busy |
| off | | |
|--------------+----------+----------------------------------|
| .3s on, .3s | On | Remote TA did not answer |
| off | | |
|--------------+----------+----------------------------------|
| .25s on, | On | Could not connect to remote TA |
| .25s off | | |
|--------------+----------+----------------------------------|
| Off | Off | Hardware error detected |
|--------------+----------+----------------------------------|
| Blinking | Off | Hardware error detected |
|--------------+----------+----------------------------------|
| Off | .25s on, | ISDN has failed |
| | .75s off | |
+------------------------------------------------------------+
Proprietary Command Sets
See document V1971 for a full command summary.
