# TOSHIBA
T1000 MODEM
Card Type Modem (asynchronous)
Chip Set Unidentified
Maximum Data Rate 2400bps
Data Bus Internal/Toshiba bus
Data Modulation Protocol Bell 103/212A
ITU-T V.21, V.22, V.22bis
IMG IMG 1
+------------------------------------------------------------+

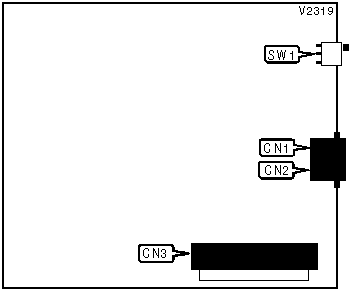

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line in | CN1 | Proprietary connection to | CN3 |
| | | computer | |
|--------------+----------+----------------------------+-----|
| Line out | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| Power |
|------------------------------------------------------------|
| Setting | SW1 |
|--------------------------------------------+---------------|
| Auto-start with telecommunication software | Position 1 |
|--------------------------------------------+---------------|
| Off | Position 2 |
|--------------------------------------------+---------------|
| On | Position 3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, ‘+++’, ‘Comma’, ‘Semicolon, A/ |
|------------------------------------------------------------|
| A, B, C, E, F, H, I, L, M, O, P, Q, S, T, V, X, Y, Z |
|------------------------------------------------------------|
| &C, &D, &F, &G, &P, &T, &W, &Y, &Z |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S14, S16, S18, S21, S22, S25 |
|------------------------------------------------------------|
| Note: See MHI Help file for full command documentation. |
+------------------------------------------------------------+
Proprietary AT Command Set
See TOSHIBA, T1100PLUS MODEM/T1200 MODEM/T3100 MODEM/T5100
MODEM/T5200 MODEM document for a full command summary.
