# ZOOM TELEPHONICS, INC.
VFD X
Modem Type Data
(synchronous/asynchronous)/Fax/Voice
Maximum Data Rate 2400bps
Maximum Fax Rate 9600bps
Data Bus External
Fax Class Class I & II
Data Modulation Unidentified
Protocol
Fax Modulation Unidentified
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression

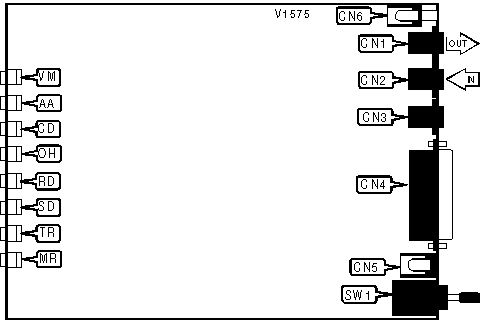

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------------+----------+--------------+----------|
| Line out | CN1 | DC power | CN5 |
|-----------------------+----------+--------------+----------|
| Line in | CN2 | Speaker | CN6 |
|-----------------------+----------+--------------+----------|
| Digital control | CN3 | Power switch | SW1 |
| (Proprietary | | | |
|-----------------------+----------+--------------+----------|
| RS-232/422 | CN4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+-------+-------------+--------------------------------|
| VM | Red | On/Blinking | Unread stored messages exist |
|-----+-------+-------------+--------------------------------|
| VM | Red | Off | No unread stored messages |
| | | | exist |
|-----+-------+-------------+--------------------------------|
| AA | Red | On | Auto-answer enabled |
|-----+-------+-------------+--------------------------------|
| AA | Red | Off | Auto-answer disabled |
|-----+-------+-------------+--------------------------------|
| CD | Red | On | Carrier signal detected |
|-----+-------+-------------+--------------------------------|
| CD | Red | Off | Carrier signal not detected |
|-----+-------+-------------+--------------------------------|
| OH | Red | On | Modem is off-hook |
|-----+-------+-------------+--------------------------------|
| OH | Red | Off | Modem is on-hook |
|-----+-------+-------------+--------------------------------|
| RD | Red | Blinking | Modem is receiving data |
|-----+-------+-------------+--------------------------------|
| RD | Red | Off | Modem is not receiving data |
|-----+-------+-------------+--------------------------------|
| TD | Red | Blinking | Modem is transmitting data |
|-----+-------+-------------+--------------------------------|
| TD | Red | Off | Modem is not transmitting data |
|-----+-------+-------------+--------------------------------|
| TR | Red | On | DTR signal is high |
|-----+-------+-------------+--------------------------------|
| TR | Red | Off | DTR signal is low |
|-----+-------+-------------+--------------------------------|
| MR | Red | On | Power is on |
|-----+-------+-------------+--------------------------------|
| MR | Red | Off | Power is off |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-RETRAIN |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT %En |
|--------------+---------------------------------------------|
| Example: | AT %E1 <CR> |
|--------------+---------------------------------------------|
| Description: | Selects auto-retrain mode. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| » %E0 | Auto-retrain disabled. |
|--------------+---------------------------------------------|
| %E1 | Auto-retrain enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK SEND |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Bn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \B3 &W<CR> |
|--------------+---------------------------------------------|
| Range: | 1-9 |
|--------------+---------------------------------------------|
| Default | 3 |
|--------------+---------------------------------------------|
| Unit: | .1 second |
|--------------+---------------------------------------------|
| Description: | Sends break to modem. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT %Cn |
|--------------+---------------------------------------------|
| Example: | AT I2 %C1 &S0<CR> |
|--------------+---------------------------------------------|
| Description: | Selects data compression. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %C0 | Data compression disabled. |
|--------------+---------------------------------------------|
| %C1 | MNP5 enabled. |
|--------------+---------------------------------------------|
| %C2 | V.42bis enabled. |
|--------------+---------------------------------------------|
| » %C3 | MNP5 and V.42bis enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \N1 DT555-1212<CR> |
|--------------+---------------------------------------------|
| Description: | Sets connect mode. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \N1 | Direct mode. |
|--------------+---------------------------------------------|
| \N0 | Normal mode. |
|--------------+---------------------------------------------|
| \N2 | Reliable mode. |
|--------------+---------------------------------------------|
| » \N3 | Auto-reliable mode. |
|--------------+---------------------------------------------|
| \N4 | V.42 reliable mode. |
|--------------+---------------------------------------------|
| \N5 | MNP error correction mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Gn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \G1 &K3<CR> |
|--------------+---------------------------------------------|
| Description: | Selects modem port flow control. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| » \G0 | Flow control disabled. |
|--------------+---------------------------------------------|
| \G1 | Flow control enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL LEVEL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %L [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %L &W<CR> |
|--------------+---------------------------------------------|
| Unit: | -dBm |
|--------------+---------------------------------------------|
| Description: | Returns received line signal level. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LOCK SERIAL PORT |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Jn [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %L3 %B14 \J0<CR> |
|--------------+---------------------------------------------|
| Description: | Sets operation of serial port speed. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| » \J0 | Serial speed locked. |
|--------------+---------------------------------------------|
| \J1 | Serial speed follows connect speed. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MAXIMUM BLOCK SIZE FOR TRANSMISSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \An [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \A3 %C1<CR> |
|--------------+---------------------------------------------|
| Description: | Sets the maximum transmittable block size. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \A0 | MNP block size is 64 characters. |
|--------------+---------------------------------------------|
| » \A1 | MNP block size is 128 characters. |
|--------------+---------------------------------------------|
| \A2 | MNP block size is 192 characters. |
|--------------+---------------------------------------------|
| \A3 | MNP block size is 256 characters. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MNP STREAM/BLOCK MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Ln [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \L1 DT555-1212<CR> |
|--------------+---------------------------------------------|
| Description: | Selects the transfer mode for MNP. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| » \L0 | Stream mode for MNP enabled. |
|--------------+---------------------------------------------|
| \L1 | Block mode for MNP enabled. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT SIGNAL QUALITY |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Q [cmds] |
|--------------+---------------------------------------------|
| Example: | AT %Q &W<CR> |
|--------------+---------------------------------------------|
| Description: | Reports signal quality. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT MODEM STATUS |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \S [cmds] |
|--------------+---------------------------------------------|
| Example: | AT \S &W<CR> |
|--------------+---------------------------------------------|
| Description: | Displays current modem configuration. |
+------------------------------------------------------------+
