# UNIDENTIFIED
INTERNAL 2400 FAX/DATA
Card Type Modem (asynchronous)
Chip Set Unidentified
Maximum Data Rate 2400bps
Maximum Fax Rate 9600bps
Data Bus 8-bit ISA
Fax Class Unidentified
Data Modulation Protocol Bell 103/212A
ITU-T V.21, V.22, V.22bis
Fax Modulation Protocol ITU-T V.27ter, V.29

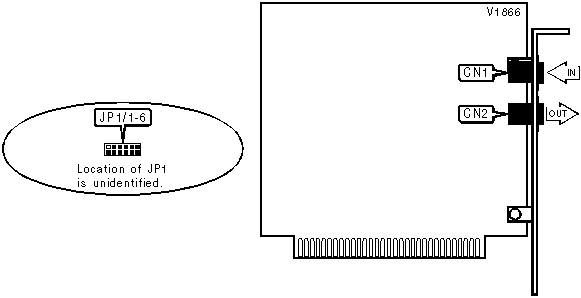

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS/INTERRUPT |
|------------------------------------------------------------|
| Setting |Setting|JP1/1 |JP1/2 |JP1/3 |JP1/4 |JP1/5 |JP1/6 |
|----------+-------+------+------+------+------+------+------|
| COM1 | IRQ4 | Open |Closed|Closed|Closed| Open | Open |
| (3F8h) | | | | | | | |
|----------+-------+------+------+------+------+------+------|
| COM2 | IRQ3 | Open |Closed| Open | Open |Closed|Closed|
| (2F8h) | | | | | | | |
|----------+-------+------+------+------+------+------+------|
| COM3 | IRQ4 |Closed| Open |Closed|Closed| Open | Open |
| (3E8h) | | | | | | | |
|----------+-------+------+------+------+------+------+------|
| COM4 | IRQ3 |Closed| Open | Open | Open |Closed|Closed|
| (2E8h) | | | | | | | |
+------------------------------------------------------------+
