# UNIDENTIFIED
V.32/32BIS FAX/DATA MODEM
Card Type Modem (synchronous/asynchronous)
Chip Set Unidentified
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Bus 8-bit ISA
Fax Class Class I & II
Data Modulation Bell 103/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression

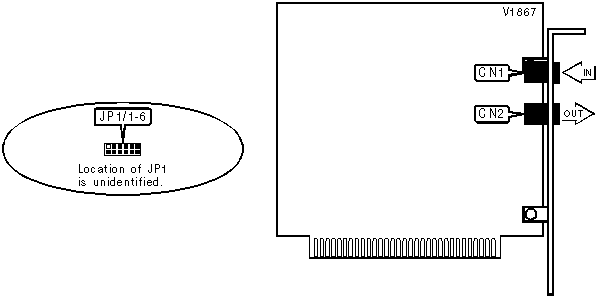

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS/INTERRUPT |
|------------------------------------------------------------|
| Setting |Setting|JP1/1 |JP1/2 |JP1/3 |JP1/4 |JP1/5 |JP1/6 |
|----------+-------+------+------+------+------+------+------|
| COM1 | IRQ4 | Open |Closed|Closed|Closed| Open | Open |
| (3F8h) | | | | | | | |
|----------+-------+------+------+------+------+------+------|
| COM2 | IRQ3 | Open |Closed| Open | Open |Closed|Closed|
| (2F8h) | | | | | | | |
|----------+-------+------+------+------+------+------+------|
| COM3 | IRQ4 |Closed| Open |Closed|Closed| Open | Open |
| (3E8h) | | | | | | | |
|----------+-------+------+------+------+------+------+------|
| COM4 | IRQ3 |Closed| Open | Open | Open |Closed|Closed|
| (2E8h) | | | | | | | |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-RETRAIN |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %En [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects auto-retrain mode |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í %E0 | Auto-retrain disabled |
|--------------+---------------------------------------------|
| %E1 | Auto-retrain enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S14 |
|------------------------------------------------------------|
| Format | AT [cmds] S14=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 138 |
|--------------+---------------------------------------------|
| Range: | 0-174 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls echo, result codes, result code |
| | display, dial mode, and answer/originate |
| | mode. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | Not used |
|------+-------+---------------------------------------------|
| 1 | 0 | Command echo disabled |
| | | |
| | í 1 | Command echo enabled |
|------+-------+---------------------------------------------|
| 2 | í 0 | Result codes disabled |
| | | |
| | 1 | Result codes enabled |
|------+-------+---------------------------------------------|
| 3 | 0 | Display result codes in numeric format |
| | | |
| | í 1 | Display result codes in verbose format |
|------+-------+---------------------------------------------|
| 4 | 0 | Not used |
|------+-------+---------------------------------------------|
| 5 | í 0 | Tone dial enabled |
| | | |
| | 1 | Pulse dial enabled |
|------+-------+---------------------------------------------|
| 6 | 0 | Not used |
|------+-------+---------------------------------------------|
| 7 | 0 | Answer mode enabled |
| | | |
| | í 1 | Originate mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S21 |
|------------------------------------------------------------|
| Format | AT [cmds] S21=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 4 |
|--------------+---------------------------------------------|
| Range: | 0-253 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects jack type, CTS signal, low DTR |
| | action, DCD signal, DSR signal, and the |
| | long space disconnect function. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | Selects RJ-11 jack |
| | | |
| | 1 | Selects RJ-12 or RJ-13 jack |
|------+-------+---------------------------------------------|
| 1 | 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | 0 | CTS follows RTS |
| | | |
| | í 1 | CTS forced high |
|------+-------+---------------------------------------------|
| 4, 3 | í 00 | DTR signal ignored |
| | | |
| | 01 | Modem goes to command mode on low DTR |
| | | |
| | 10 | Modem disconnects on low DTR. Auto-Answer |
| | | is disabled. |
| | 11 | |
| | | Modem is initialized on low DTR |
|------+-------+---------------------------------------------|
| 5 | í 0 | DCD forced high |
| | | |
| | 1 | DCD normal |
|------+-------+---------------------------------------------|
| 6 | í 0 | DSR forced high |
| | | |
| | 1 | DSR normal |
|------+-------+---------------------------------------------|
| 7 | í 0 | Long space disconnect function disabled |
| | | |
| | 1 | Long space disconnect function enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S22 |
|------------------------------------------------------------|
| Format | AT [cmds] S22=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 118 |
|--------------+---------------------------------------------|
| Range: | 0-126 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume and controls, and |
| | limits results codes. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 1, 0 | 00 | Speaker off |
| | | |
| | 01 | Low volume |
| | | |
| | í 10 | Medium level volume |
|------+-------+---------------------------------------------|
| 3, 2 | 00 | Speaker off |
| | | |
| | í 01 | Speaker off on carrier |
| | | |
| | 10 | Speaker always on |
| | | |
| | 11 | Speaker on during handshake |
|------+-------+---------------------------------------------|
| 6, | 000 | Basic result codes only enabled |
| 5, 4 | | |
| | 100 | Basic and connection speed result codes |
| | | enabled |
| | 101 | |
| | | Basic and connection speed result codes and |
| | 110 | dialtone detection enabled |
| | | |
| | í 111 | All result codes except dialtone detection |
| | | enabled |
| | | |
| | | All result codes enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S23 |
|------------------------------------------------------------|
| Format | AT [cmds] S23=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 183 |
|--------------+---------------------------------------------|
| Range: | 0-189 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Grants/denies remote digital loopback, |
| | controls DTE rate and parity, and sets |
| | guard tone. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | Remote digital loopback denied |
| | | |
| | í 1 | Remote digital loopback allowed |
|------+-------+---------------------------------------------|
| 3, | 000 | Sets serial port speed to 0-300bps |
| 2, 1 | | |
| | 001 | Sets serial port speed to 600bps |
| | | |
| | 010 | Sets serial port speed to 1200bps |
| | | |
| | í 011 | Sets serial port speed to 2400bps |
| | | |
| | 100 | Sets serial port speed to 4800bps |
| | | |
| | 101 | Sets serial port speed to 9600bps |
| | | |
| | 110 | Sets serial port speed to 19200bps |
|------+-------+---------------------------------------------|
| 5,4 | 00 | Parity even |
| | | |
| | 01 | Not used |
| | | |
| | 10 | Space Parity |
| | | |
| | í 11 | No Parity |
|------+-------+---------------------------------------------|
| 7, 6 | 00 | Guard tone disabled |
| | | |
| | 01 | Guard tone disabled |
| | | |
| | í 10 | Guard tone 1800Hz enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S27 |
|------------------------------------------------------------|
| Format | AT [cmds] S27=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 9 |
|--------------+---------------------------------------------|
| Range: | 0-110 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects synchronous/asynchronous mode, line |
| | type, clock source, and ITU-T/Bell modes. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 3, | 000 | Asynchronous mode |
| 1, 0 | | |
| | 001 | Synchronous mode |
| | | |
| | 010 | Synchronous mode, DTR dialing enabled |
| | | |
| | 011 | Synchronous mode, DTR forced high |
| | | |
| | 100 | Synchronous mode |
| | | |
| | í 101 | ERROR CORRECTION mode |
| | | |
| | 110 | Buffered asynchronous mode |
|------+-------+---------------------------------------------|
| 2 | í 0 | Dial up line |
| | | |
| | 1 | Leased line |
|------+-------+---------------------------------------------|
| 5, 4 | í 00 | Modem generates clock |
| | | |
| | 01 | DTE generates clock |
| | | |
| | 10 | Modem generates clock from the receive |
| | | carrier signal |
|------+-------+---------------------------------------------|
| 6 | í 0 | CCITT mode |
| | | |
| | 1 | Bell mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S28 |
|------------------------------------------------------------|
| Format | AT [cmds] S28=n [cmds] |
|---------------+--------------------------------------------|
| Default: | 0 |
|---------------+--------------------------------------------|
| Range: | 0-24 |
|---------------+--------------------------------------------|
| Unit: | Bit-mapped |
|---------------+--------------------------------------------|
| Description: | Controls pulse dialing |
|---------------+--------------------------------------------|
| Bit | Value | Function |
|-------+-------+--------------------------------------------|
| 2 - 0 | 0 | Not used |
|-------+-------+--------------------------------------------|
| 4, 3 | í 00 | 39ms make/61ms break at 10pps |
| | | |
| | 01 | 33ms make/67ms break at 10pps |
| | | |
| | 10 | 39ms make/61ms break at 20pps |
| | | |
| | 11 | 33ms make/67ms break at 20pps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S31 |
|------------------------------------------------------------|
| Format | AT [cmds] S31=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 2 |
|--------------+---------------------------------------------|
| Range: | 0-10 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls auto-baud function and result |
| | codes. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | Not used |
|------+-------+---------------------------------------------|
| 1 | 0 | Auto-baud disabled |
| | | |
| | í 1 | Auto-baud enabled |
|------+-------+---------------------------------------------|
| 3, 2 | í 00 | DTE speed displayed in result codes |
| | | |
| | 01 | Extended result codes enabled; DCE speed |
| | | displayed in result codes. |
| | 10 | |
| | | DCE speed displayed in result codes |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S40 |
|------------------------------------------------------------|
| Format | AT [cmds] S40=n [cmds] |
|-----------------+------------------------------------------|
| Default: | 104 |
|-----------------+------------------------------------------|
| Range: | 0-232 |
|-----------------+------------------------------------------|
| Unit: | Bit-mapped |
|-----------------+------------------------------------------|
| Description: | Selects break type and MNP block size. |
|-----------------+------------------------------------------|
| Bit | Value | Function |
|---------+-------+------------------------------------------|
| 2 - 0 | 0 | Not used |
|---------+-------+------------------------------------------|
| 5, 4, 3 | 000 | \K0 |
| | | |
| | 001 | \K1 |
| | | |
| | 010 | \K2 |
| | | |
| | 011 | \K3 |
| | | |
| | 100 | \K4 |
| | | |
| | í 101 | \K5 |
|---------+-------+------------------------------------------|
| 7, 6 | 00 | MNP block size is 64 characters |
| | | |
| | í 01 | MNP block size is 128 characters |
| | | |
| | 10 | MNP block size is 192 characters |
| | | |
| | 11 | MNP block size is 256 characters |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S41 |
|------------------------------------------------------------|
| Format | AT [cmds] S41=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 3 |
|--------------+---------------------------------------------|
| Range: | 0-31 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects compression, auto-retrain, flow |
| | control, and MNP mode. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 1 - | 00 | Data compression disabled |
| 0 | | |
| | 01 | MNP5 enabled |
| | | |
| | 10 | V.42bis enabled |
| | | |
| | í 11 | MNP5 and V.42bis enabled |
|------+-------+---------------------------------------------|
| 2 | í 0 | Auto-retrain disabled |
| | | |
| | 1 | Auto-retrain enabled |
|------+-------+---------------------------------------------|
| 3 | í 0 | Flow control disabled |
| | | |
| | 1 | Flow control enabled |
|------+-------+---------------------------------------------|
| 4 | í 0 | Stream mode for MNP |
| | | |
| | 1 | Block mode for MNP |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK SEND |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Bn [cmds] |
|--------------+---------------------------------------------|
| Default: | 3 |
|--------------+---------------------------------------------|
| Range: | 1-9 |
|--------------+---------------------------------------------|
| Unit: | .1 second |
|--------------+---------------------------------------------|
| Description: | Sends break to modem |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|---------------------+--------------------------------------|
| Format: | AT [cmds] \Kn [cmds] |
|---------------------+--------------------------------------|
| Description: | Configures action of break signal |
|------------------------------------------------------------|
| Command | Break from DTE | Break from | Break from |
| | | DTE | remote modem |
| | Reliable/Normal | | |
| | mode | Direct mode | |
|-----------+-----------------+---------------+--------------|
| \K0 | Enter command | Send break to | Buffers |
| | mode, do not | remote modem | cleared and |
| | send break to | immediately, | break sent |
| | remote modem | then enter | to DTE |
| | | command mode | |
|-----------+-----------------+---------------+--------------|
| \K1 | Buffers cleared | Send break to | Buffers |
| | and break sent | remote modem | cleared and |
| | to remote modem | immediately | break sent |
| | | | to DTE |
|-----------+-----------------+---------------+--------------|
| \K2 | Enter command | Send break to | Send break |
| | mode, do not | remote modem | to DTE |
| | send break to | immediately, | immediately |
| | remote modem | then enter | |
| | | command mode | |
|-----------+-----------------+---------------+--------------|
| \K3 | Send break to | Send break to | Send break |
| | remote modem | remote modem | to DTE |
| | immediately | immediately | immediately |
|-----------+-----------------+---------------+--------------|
| \K4 | Enter command | Send break to | Break sent |
| | mode, do not | remote modem | with |
| | send break to | immediately, | received |
| | remote modem | then enter | data to the |
| | | command mode | DTE |
|-----------+-----------------+---------------+--------------|
| í \K5 | Send break with | Send break to | Break sent |
| | transmitted | remote modem | with |
| | data | immediately | received |
| | | | data to the |
| | | | DTE |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %C0 | Data compression disabled |
|--------------+---------------------------------------------|
| %C1 | MNP5 enabled |
|--------------+---------------------------------------------|
| %C2 | V.42bis enabled |
|--------------+---------------------------------------------|
| í %C3 | Both MNP5 and V.42bis |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets connect mode |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \N0 | Normal mode enabled |
|--------------+---------------------------------------------|
| \N1 | Direct mode enable |
|--------------+---------------------------------------------|
| \N2 | Reliable mode enabled |
|--------------+---------------------------------------------|
| \N3 | Auto-reliable mode enabled |
|--------------+---------------------------------------------|
| \N4 | LAPM mode enabled |
|--------------+---------------------------------------------|
| \N5 | MNP mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY RECEIVED SIGNAL LEVEL |
|------------------------------------------------------------|
| Type | Immediate |
|-------------+----------------------------------------------|
| Format | AT [cmds] %L [cmds] |
|-------------+----------------------------------------------|
| Range | 9-43 |
|-------------+----------------------------------------------|
| Unit | -1 dBm |
|-------------+----------------------------------------------|
| Description | Returns received signal level |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLASH DIAL MODIFIER TIME |
|------------------------------------------------------------|
| Type | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S29=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | .1 seconds |
|--------------+---------------------------------------------|
| Description: | Time the modem will go on-hook upon |
| | receiving the ! dial modifier in dial |
| | string. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem port flow control |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \G0 | Flow control disabled |
|--------------+---------------------------------------------|
| \G1 | Flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XOFF |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S33=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 19 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XOFF |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XON |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S32=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 17 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XON |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LOCK SERIAL PORT |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Jn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets operation of serial port speed |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \J0 | Serial speed locked |
|--------------+---------------------------------------------|
| \J1 | Serial speed follows connect speed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MAXIMUM BLOCK SIZE FOR TRANSMISSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \An [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum transmittable block size |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \A0 | MNP block size is 64 characters |
|--------------+---------------------------------------------|
| \A1 | MNP block size is 128 characters |
|--------------+---------------------------------------------|
| \A2 | MNP block size is 192 characters |
|--------------+---------------------------------------------|
| í \A3 | MNP block size is 256 characters |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MNP STREAM/BLOCK MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the transfer mode for MNP |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \L0 | Stream mode for MNP enabled |
|--------------+---------------------------------------------|
| \L1 | Block mode for MNP enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SLEEP TIMER |
|------------------------------------------------------------|
| Type | Register |
|-------------+----------------------------------------------|
| Format | AT [cmds] S24=n [cmds] |
|-------------+----------------------------------------------|
| Default | 0 |
|-------------+----------------------------------------------|
| Range | 0-255 |
|-------------+----------------------------------------------|
| Unit | 10 seconds |
|-------------+----------------------------------------------|
| Description | Maximum duration of DTE and DCE inactivity |
| | allowed prior to initiating low-power sleep |
| | mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Format | AT [cmds] S16=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-125 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls loopback tests, analog, digital, |
| | remote digital, and self tests. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | Local analog loopback not in progress |
| | | |
| | 1 | Local analog loopback in progress |
|------+-------+---------------------------------------------|
| 1 | 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | í 0 | Local digital loopback not in progress |
| | | |
| | 1 | Local digital loopback in progress |
|------+-------+---------------------------------------------|
| 3 | í 0 | Remote digital loopback not requested |
| | | |
| | 1 | Remote digital loopback requested |
|------+-------+---------------------------------------------|
| 4 | í 0 | Modem not in remote digital loopback |
| | | |
| | 1 | Remote digital loopback in progress |
|------+-------+---------------------------------------------|
| 5 | í 0 | Remote digital loopback w/ self-test not in |
| | | progress |
| | 1 | |
| | | Remote digital loopback w/ self-test in |
| | | progress |
|------+-------+---------------------------------------------|
| 6 | í 0 | Local analog loopback w/ self-test not in |
| | | progress |
| | 1 | |
| | | Local analog loopback w/ self-test in |
| | | progress |
+------------------------------------------------------------+
