# WISECOM, INC.
DATA/FAX MODEM 14.4 V.32BIS
Card Type Fax, Modem (asynchronous)
Chip Set Unidentified
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Bus 8-bit ISA
Fax Class Class I
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.32,
V.32bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression

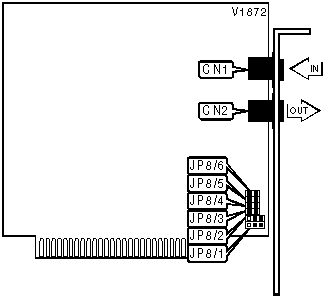

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS |
|------------------------------------------------------------|
| Setting | JP8/1 | JP8/2 |
|------------------+--------------------+--------------------|
| COM1 (3F8h) | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| COM2 (2F8h) | Pins 2 & 3 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| COM3 (3E8h) | Pins 1 & 2 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| í COM4 (2E8h) | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT |
|------------------------------------------------------------|
| Setting | JP8/3 | JP8/4 | JP8/5 | JP8/6 |
|------------+-----------+-----------+-----------+-----------|
| 2 | Closed | Open | Open | Open |
|------------+-----------+-----------+-----------+-----------|
| í 3 | Open | Closed | Open | Open |
|------------+-----------+-----------+-----------+-----------|
| 4 | Open | Open | Closed | Open |
|------------+-----------+-----------+-----------+-----------|
| 5 | Open | Open | Open | Closed |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-RETRAIN - FALLBACK/FALLFORWARD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %En [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls auto-retrain mode and |
| | fallback/fall forward |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %E0 | Auto-retrain disabled |
|--------------+---------------------------------------------|
| %E1 | Auto-retrain enabled |
|--------------+---------------------------------------------|
| í %E2 | Fallback/fall forward enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT MAPPED REGISTERS |
|------------------------------------------------------------|
| Register | Default |
|----------------------------+-------------------------------|
| S14 | Unidentified |
|----------------------------+-------------------------------|
| S16 | 0 |
|----------------------------+-------------------------------|
| S21 | Unidentified |
|----------------------------+-------------------------------|
| S22 | Unidentified |
|----------------------------+-------------------------------|
| S23 | Unidentified |
|----------------------------+-------------------------------|
| S27 | Unidentified |
|----------------------------+-------------------------------|
| S31 | Unidentified |
|----------------------------+-------------------------------|
| S41 | 131 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type | Configuration |
|-------------+----------------------------------------------|
| Format | AT [cmds] \Kn [cmds] |
|-------------+----------------------------------------------|
| Default | 5 |
|-------------+----------------------------------------------|
| Range | 0-5 |
|-------------+----------------------------------------------|
| Description | Configures action of break signal |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets connect mode |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \N0 | Normal mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FAX TRANSMIT LEVEL |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S92=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 10 |
|--------------+---------------------------------------------|
| Range: | 0-15 |
|--------------+---------------------------------------------|
| Unit: | -1dBm |
|--------------+---------------------------------------------|
| Description: | Controls fax transmission level |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLASH DIAL MODIFIER TIME |
|------------------------------------------------------------|
| Format | AT [cmds] S29=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | .01 second |
|--------------+---------------------------------------------|
| Description: | Time the modem will go on-hook upon |
| | receiving the ! dial modifier in dial |
| | string. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XOFF |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S33=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 19 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XOFF |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XON |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S32=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 17 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XON |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL LEVEL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %L [cmds] |
|--------------+---------------------------------------------|
| Description: | Returns a value which indicates the |
| | received line signal level |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL QUALITY |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Q [cmds] |
|--------------+---------------------------------------------|
| Description: | Returns a value which indicates line signal |
| | quality |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RPI |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +Hn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls RPI and sets DTE speed |
|------------------------------------------------------------|
| Command | Function |
|----------------+-------------------------------------------|
| +H0 | RPI disabled |
|----------------+-------------------------------------------|
| +H1 | RPI enabled, DTE speed 19200bps |
|----------------+-------------------------------------------|
| +H2 | RPI enabled, DTE speed 38400bps |
|----------------+-------------------------------------------|
| +H3 | RPI enabled, DTE speed 57600bps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SLEEP TIMER |
|------------------------------------------------------------|
| Format | AT [cmds] S24=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | 1 second |
|--------------+---------------------------------------------|
| Description: | Maximum duration of DTE and DCE inactivity |
| | allowed prior to initiating low-power sleep |
| | mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMIT ATTENUATION LEVEL |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S91=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 10 |
|--------------+---------------------------------------------|
| Range: | 0-15 |
|--------------+---------------------------------------------|
| Unit: | -1dBm |
|--------------+---------------------------------------------|
| Description: | Controls transmission attenuation level |
+------------------------------------------------------------+
