# UNIDENTIFIED
9600 S/R FAX INTERNAL (REV.3.0)
Card Type Fax, Modem (asynchronous)
Chip Set Unidentified
Maximum Data Rate 2400bps
Maximum Fax Rate 9600bps
Data Bus 8-bit ISA
Fax Class Unidentified
Data Modulation Protocol Bell 103/212A
ITU-T V.21, V.22, V.22bis
Fax Modulation Protocol ITU-T V.27ter, V.29

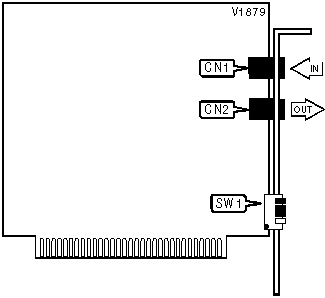

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 |
|--------------------+-------------------+-------------------|
| COM1 (3F8h) | On | On |
|--------------------+-------------------+-------------------|
| í COM2 (2F8h) | Off | On |
|--------------------+-------------------+-------------------|
| COM3 (3E8h) | On | Off |
|--------------------+-------------------+-------------------|
| COM4 (2E8h) | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT |
|------------------------------------------------------------|
| Setting | SW1/3 | SW1/4 |
|--------------------+-------------------+-------------------|
| í 3 | Off | On |
|--------------------+-------------------+-------------------|
| 4 | On | Off |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| BIT MAPPED REGISTERS |
|------------------------------------------------------------|
| Register | Default |
|----------------------------+-------------------------------|
| S14 | Unidentified |
|----------------------------+-------------------------------|
| S16 | Unidentified |
|----------------------------+-------------------------------|
| S21 | Unidentified |
|----------------------------+-------------------------------|
| S22 | Unidentified |
|----------------------------+-------------------------------|
| S23 | Unidentified |
|----------------------------+-------------------------------|
| S27 | Unidentified |
+------------------------------------------------------------+
