# UNIDENTIFIED
2400U/BU MODEM
Card Type Modem (asynchronous)
Chip Set Unidentified
Maximum Data Rate 2400bps
Data Bus 8-bit ISA
Data Modulation Protocol Bell 103/212A
ITU-T V.21, V.22, V.22bis
Error Correction/Compression MNP5, V.42

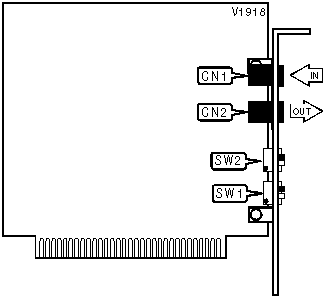

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line in | CN1 | Line out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 |
|--------------------+-------------------+-------------------|
| COM1 (3F8h) | On | On |
|--------------------+-------------------+-------------------|
| COM2 (2F8h) | Off | On |
|--------------------+-------------------+-------------------|
| COM3 (3E8h) | On | Off |
|--------------------+-------------------+-------------------|
| COM4 (2E8h) | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT |
|------------------------------------------------------------|
| Setting | SW2/1 | SW2/2 |
|--------------------+-------------------+-------------------|
| 2 | Off | Off |
|--------------------+-------------------+-------------------|
| 3 | On | Off |
|--------------------+-------------------+-------------------|
| 4 | Off | On |
|--------------------+-------------------+-------------------|
| 5 | Off | Off |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-RELIABLE FALLBACK CHARACTER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %An [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-127 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used as the |
| | auto-reliable fallback character; %A0 will |
| | disable this function. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-RELIABLE TIME BUFFER CONFIGURATION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the handling of incoming data |
| | during auto-reliable time period |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \C0 | Data is discarded |
|--------------+---------------------------------------------|
| \C1 | Data is buffered |
|--------------+---------------------------------------------|
| \C2 | Data is discarded; modem returns to normal |
| | mode on receiving auto-reliable fallback |
| | character. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S14 |
|------------------------------------------------------------|
| Format | AT [cmds] S14=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 42 |
|--------------+---------------------------------------------|
| Range: | 0-174 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls echo, result codes and display, |
| | dial mode, and answer/originate mode. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | Not used |
|------+-------+---------------------------------------------|
| 1 | 0 | Command echo disabled |
| | | |
| | í 1 | Command echo enabled |
|------+-------+---------------------------------------------|
| 2 | í 0 | Result codes enabled |
| | | |
| | 1 | Result codes disabled |
|------+-------+---------------------------------------------|
| 3 | 0 | Display result codes in numeric format |
| | | |
| | í 1 | Display result codes in verbose format |
|------+-------+---------------------------------------------|
| 4 | 0 | Not used |
|------+-------+---------------------------------------------|
| 5 | 0 | Tone dial enabled |
| | | |
| | í 1 | Pulse dial enabled |
|------+-------+---------------------------------------------|
| 6 | 0 | Not used |
|------+-------+---------------------------------------------|
| 7 | í 0 | Answer mode enabled |
| | | |
| | 1 | Originate mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S21 |
|------------------------------------------------------------|
| Format | AT [cmds] S21=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 48 |
|--------------+---------------------------------------------|
| Range: | 0-252 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects jack type, CTS/DCD/DSR signals, low |
| | DTR action, and the long space disconnect |
| | function. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 1, 0 | 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | í 0 | CTS follows RTS |
| | | |
| | 1 | CTS forced high |
|------+-------+---------------------------------------------|
| 4, 3 | 00 | DTR signal ignored |
| | | |
| | 01 | Modem goes to command mode on low DTR |
| | | |
| | í 10 | Modem disconnects on low DTR; Auto-Answer |
| | | is disabled. |
| | 11 | |
| | | Modem is initialized on low DTR |
|------+-------+---------------------------------------------|
| 5 | 0 | DCD forced high |
| | | |
| | í 1 | DCD normal |
|------+-------+---------------------------------------------|
| 6 | í 0 | DSR forced high |
| | | |
| | 1 | DSR normal |
|------+-------+---------------------------------------------|
| 7 | í 0 | Long space disconnect function disabled |
| | | |
| | 1 | Long space disconnect function enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S22 |
|------------------------------------------------------------|
| Format | AT [cmds] S22=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 118 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume and controls, |
| | limits results codes, and make/break ratio. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 1, 0 | 00 | Off volume |
| | | |
| | 01 | Low level volume |
| | | |
| | í 10 | Medium level volume |
| | | |
| | 11 | High level volume |
|------+-------+---------------------------------------------|
| 3, 2 | 00 | Speaker off |
| | | |
| | í 01 | Speaker off on carrier |
| | | |
| | 10 | Speaker always on |
| | | |
| | 11 | Speaker on during handshake |
|------+-------+---------------------------------------------|
| 6, | 000 | Basic result codes only enabled |
| 5, 4 | | |
| | 100 | Basic and connection speed result codes |
| | | enabled |
| | 101 | |
| | | Basic and connection speed result codes and |
| | 110 | dialtone detection enabled |
| | | |
| | í 111 | All result codes except dialtone detection |
| | | enabled |
| | | |
| | | All result codes enabled |
|------+-------+---------------------------------------------|
| 7 | í 0 | 39/61ms at 10pps (North America) |
| | | |
| | 1 | 33/67ms at 10pps (Europe) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S23 |
|------------------------------------------------------------|
| Format | AT [cmds] S23=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 6 |
|--------------+---------------------------------------------|
| Range: | 0-183 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Grants/denies remote digital loopback, |
| | controls DTE rate and parity, and sets |
| | guard tone. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | Remote digital loopback allowed |
| | | |
| | 1 | Remote digital loopback denied |
|------+-------+---------------------------------------------|
| 2, 1 | 00 | Sets serial port speed to 0-300bps |
| | | |
| | 10 | Sets serial port speed to 1200bps |
| | | |
| | í 11 | Sets serial port speed to 2400bps |
|------+-------+---------------------------------------------|
| 3 | 0 | Not used |
|------+-------+---------------------------------------------|
| 5,4 | í 00 | Parity even |
| | | |
| | 01 | Space Parity |
| | | |
| | 10 | Parity odd |
| | | |
| | 11 | Mark Parity |
|------+-------+---------------------------------------------|
| 7, 6 | í 00 | Guard tone disabled |
| | | |
| | 01 | Guard tone 550Hz enabled |
| | | |
| | 10 | Guard tone 1800Hz enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S27 |
|------------------------------------------------------------|
| Format | AT [cmds] S27=n [cmds] |
|---------------+--------------------------------------------|
| Default: | 64 |
|---------------+--------------------------------------------|
| Range: | 0-68 |
|---------------+--------------------------------------------|
| Unit: | Bit-mapped |
|---------------+--------------------------------------------|
| Description: | Selects line type, and ITU-T/Bell modes. |
|---------------+--------------------------------------------|
| Bit | Value | Function |
|-------+-------+--------------------------------------------|
| 1, 0 | 0 | Not used |
|-------+-------+--------------------------------------------|
| 2 | í 0 | Switched line |
| | | |
| | 1 | Leased line |
|-------+-------+--------------------------------------------|
| 5 - 3 | 0 | Not used |
|-------+-------+--------------------------------------------|
| 6 | 0 | ITU/T mode |
| | | |
| | í 1 | Bell mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK SEND |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Bn [cmds] |
|--------------+---------------------------------------------|
| Default: | 3 |
|--------------+---------------------------------------------|
| Range: | 1-9 |
|--------------+---------------------------------------------|
| Unit: | .1 second |
|--------------+---------------------------------------------|
| Description: | Sends break to modem |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|---------------------+--------------------------------------|
| Format: | AT [cmds] \Kn [cmds] |
|---------------------+--------------------------------------|
| Description: | Configures action of break signal |
|------------------------------------------------------------|
| Command | Break from DTE | Modem | Break from |
| | | receives \B | DTE |
| | Reliable/Normal | | |
| | mode | | Direct mode |
|-----------+-----------------+--------------+---------------|
| \K0 | Online command | Break sent | Send break to |
| | mode enabled, | to remote | remote modem |
| | send no break | modem and | immediately, |
| | to remote modem | buffered | Online |
| | | cleared | command mode |
| | | | enabled |
|-----------+-----------------+--------------+---------------|
| \K1 | Break sent to | Break sent | Send break to |
| | remote modem | to remote | remote modem |
| | and buffered | modem and | immediately |
| | cleared | buffered | |
| | | cleared | |
|-----------+-----------------+--------------+---------------|
| \K2 | Online command | Send break | Send break to |
| | mode enabled, | to remote | remote modem |
| | send no break | modem | immediately, |
| | to remote modem | immediately | Online |
| | | | command mode |
| | | | enabled |
|-----------+-----------------+--------------+---------------|
| \K3 | Send break to | Send break | Send break to |
| | remote modem | to remote | remote modem |
| | immediately | modem | immediately |
| | | immediately | |
|-----------+-----------------+--------------+---------------|
| \K4 | Online command | Send break | Send break to |
| | mode enabled, | with | remote modem |
| | send no break | transmitted | immediately, |
| | to remote modem | data | Online |
| | | | command mode |
| | | | enabled |
|-----------+-----------------+--------------+---------------|
| í \K5 | Send break with | Send break | Send break to |
| | transmitted | with | remote modem |
| | data | transmitted | immediately |
| | | data | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BAUD RATE ADJUST |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Jn [cmds] |
|--------------+---------------------------------------------|
| Description: | Allows baud rate to follow serial port |
| | speed |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \J0 | Baud rate adjust disabled |
|--------------+---------------------------------------------|
| \J1 | Baud rate adjust enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %C0 | Data compression disabled |
|--------------+---------------------------------------------|
| í %C1 | Data compression enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONFIGURATION PROFILES |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays active configuration profiles and |
| | stored profile 0 and 1. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the type of connection the modem |
| | will operate in |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \N0 | Normal mode enabled |
|--------------+---------------------------------------------|
| \N1 | Direct mode enabled |
|--------------+---------------------------------------------|
| \N2 | MNP reliable mode enabled |
|--------------+---------------------------------------------|
| \N3 | MNP auto-reliable mode enabled |
|--------------+---------------------------------------------|
| \N4 | LAP-M reliable mode with detection enabled |
|--------------+---------------------------------------------|
| \N5 | LAP-M auto-reliable mode with detection |
| | enabled |
|--------------+---------------------------------------------|
| \N6 | LAP-M reliable mode without detection |
| | enabled |
|--------------+---------------------------------------------|
| \N7 | LAP-M auto-reliable mode without detection |
| | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY STORED NUMBERS |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \F [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays all stored phone numbers |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ECHO DATA |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \En [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables modem to echo received data |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \E0 | Data echo disabled |
|--------------+---------------------------------------------|
| \E1 | Data echo enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EXTENDED RESULT CODES |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Vn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects extended result codes |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \V0 | Extended result codes disabled |
|--------------+---------------------------------------------|
| í \V1 | Extended result codes enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EXTENDED RESULT CODES - MNP |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] -Mn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the display of MNP result codes |
| | with extended result codes |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| -M0 | Disable display of MNP connection service |
| | class |
|--------------+---------------------------------------------|
| í -M1 | Enable display of MNP connection service |
| | class while extended result codes are |
| | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Qn [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets type of flow control used by modem |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \Q0 | Flow control disabled |
|--------------+---------------------------------------------|
| \Q1 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| í \Q2 | CTS Unidirectional flow control enabled |
|--------------+---------------------------------------------|
| \Q3 | Bidirectional CTS/RTS flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INACTIVITY TIMER |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Tn [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-90 |
|--------------+---------------------------------------------|
| Unit: | 1 minute |
|--------------+---------------------------------------------|
| Description: | Sets the length of time that the modem does |
| | not receive information before it |
| | disconnects. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MAXIMUM BLOCK SIZE FOR TRANSMISSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \An [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum transmittable block size |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \A0 | MNP block size is 64 characters |
|--------------+---------------------------------------------|
| \A1 | MNP block size is 128 characters |
|--------------+---------------------------------------------|
| \A2 | MNP block size is 192 characters |
|--------------+---------------------------------------------|
| í \A3 | MNP block size is 256 characters |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PROTOCOL/SPEED |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Bn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the initial DCE speed |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %B0 | Select 300bps speed |
|--------------+---------------------------------------------|
| %B1 | Select 1200bps speed |
|--------------+---------------------------------------------|
| í %B2 | Select 2400bps speed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Format | AT [cmds] S16=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-125 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls loopback tests, analog, digital, |
| | remote digital, and self tests. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | Local analog loopback not in progress |
| | | |
| | 1 | Local analog loopback in progress |
|------+-------+---------------------------------------------|
| 1 | 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | í 0 | Local digital loopback not in progress |
| | | |
| | 1 | Local digital loopback in progress |
|------+-------+---------------------------------------------|
| 3 | í 0 | Modem not in remote digital loopback |
| | | |
| | 1 | Remote digital loopback in progress |
|------+-------+---------------------------------------------|
| 4 | í 0 | Remote digital loopback not in progress |
| | | |
| | 1 | Remote digital loopback in progress |
|------+-------+---------------------------------------------|
| 5 | í 0 | Remote digital loopback w/ self-test not in |
| | | progress |
| | 1 | |
| | | Remote digital loopback w/ self-test in |
| | | progress |
|------+-------+---------------------------------------------|
| 6 | í 0 | Local analog loopback w/ self-test not in |
| | | progress |
| | 1 | |
| | | Local analog loopback w/ self-test in |
| | | progress |
+------------------------------------------------------------+
+------------------------------------------------------------+
| XON/XOFF PASS-THROUGH |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Xn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects whether XON/XOFF signals are sent |
| | to remote modem |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \X0 | XON/XOFF signals trapped by local modem |
|--------------+---------------------------------------------|
| \X1 | XON/XOFF passed through local modem |
+------------------------------------------------------------+
