       # U.S. ROBOTICS, INC.

          SPORTSTER WINMODEM 14.4

          Card Type              Fax, Modem (asynchronous)
          Chip Set               U.S. Robotics
          Maximum Data Rate      14.4Kbps
          Maximum Fax Rate       14.4Kbps
          Data Bus               8-bit ISA
          Fax Class              Class I
          Data Modulation        Bell 103/212A
          Protocol
                                 ITU-T V.21, V.22, V.22bis, V.23, V.25,
                                 V.32, V.32bis
          Fax Modulation         ITU-T V.17, V.21CH2, V.27ter, V.29
          Protocol
          Error                  MNP5, V.42, V.42bis
          Correction/Compression

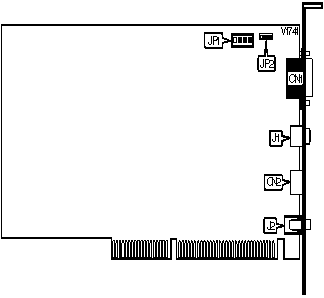

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function        |  Label   |   Function   |  Label  |
          |------------------------------------------------------------|
          | Line in                     |    CN1     | Line out | CN2  |
          +------------------------------------------------------------+

                            Proprietary AT Command Set

                  See document V1935 for a full command summary.
