# UNIQUE HARDWARE CO., LTD.
VIGUS 288 + FAX
Card Type Fax, Modem (synchronous/asynchronous)
Chip Set Unidentified
Maximum Data Rate 28.8Kbps
Maximum Fax Rate 14.4Kbps
Data Bus External
Fax Class Class I & II
Data Modulation ITU-T V.22, V.22bis, V.32, V.32bis,
Protocol V.34
Rockwell V.FC
Fax Modulation ITU-T V.17, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression

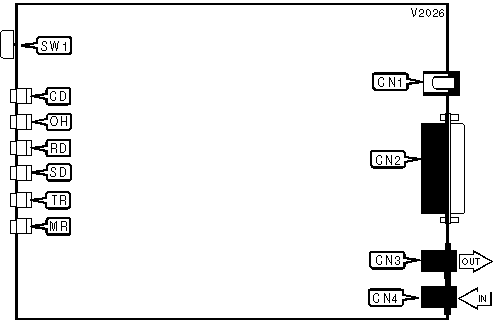

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Power switch | SW1 | Phone line out | CN3 |
|--------------------------+---------+----------------+------|
| DC power | CN1 | Phone line in | CN4 |
|--------------------------+---------+----------------+------|
| RS-232/422 | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+--------+------------------------------------|
| CD | Red | On | Carrier signal detected |
|------+-------+--------+------------------------------------|
| CD | Red | Off | Carrier signal not detected |
|------+-------+--------+------------------------------------|
| OH | Red | On | Modem is off-hook |
|------+-------+--------+------------------------------------|
| OH | Red | Off | Modem is on-hook |
|------+-------+--------+------------------------------------|
| RD | Red | On | Modem is receiving data |
|------+-------+--------+------------------------------------|
| RD | Red | Off | Modem is not receiving data |
|------+-------+--------+------------------------------------|
| SD | Red | On | Modem is transmitting data |
|------+-------+--------+------------------------------------|
| SD | Red | Off | Modem is not transmitting data |
|------+-------+--------+------------------------------------|
| TR | Red | On | DTR signal is high |
|------+-------+--------+------------------------------------|
| TR | Red | Off | DTR signal is low |
|------+-------+--------+------------------------------------|
| MR | Red | On | Power is on |
|------+-------+--------+------------------------------------|
| MR | Red | Off | Power is off |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-RETRAIN - AUTO-FALLBACK/FALL-FORWARD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %En [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls auto-retrain mode and |
| | fallback/fall-forward |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í %E0 | Auto-retrain disabled |
|--------------+---------------------------------------------|
| %E1 | Auto-retrain enabled |
|--------------+---------------------------------------------|
| %E2 | Auto-fallback/fall-forward enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S14 |
|------------------------------------------------------------|
| Format: | AT [cmds] S14=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 138 |
|--------------+---------------------------------------------|
| Range: | 0-174 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls echo, result codes and display, |
| | dial mode, and answer/originate mode. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 1 | 0 | Command echo disabled |
| | | |
| | í 1 | Command echo enabled |
|------+-------+---------------------------------------------|
| 2 | í 0 | Result codes enabled |
| | | |
| | 1 | Result codes disabled |
|------+-------+---------------------------------------------|
| 3 | 0 | Display result codes in numeric format |
| | | |
| | í 1 | Display result codes in verbose format |
|------+-------+---------------------------------------------|
| 4 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 5 | í 0 | Tone dial enabled |
| | | |
| | 1 | Pulse dial enabled |
|------+-------+---------------------------------------------|
| 6 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 7 | 0 | Answer mode enabled |
| | | |
| | í 1 | Originate mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S21 |
|------------------------------------------------------------|
| Format | AT [cmds] S21=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 52 |
|--------------+---------------------------------------------|
| Range: | 0-253 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects jack type, CTS/DCD/DSR signals, low |
| | DTR action, and the long space disconnect |
| | function. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | Selects RJ-11, RJ-41S, or RJ45S jack |
| | | |
| | 1 | Selects RJ-12 or RJ-13 jack |
|------+-------+---------------------------------------------|
| 1 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | 0 | CTS forced high |
| | | |
| | í 1 | CTS follows RTS |
|------+-------+---------------------------------------------|
| 4, 3 | 00 | DTR signal ignored |
| | | |
| | 01 | Modem goes to command mode on low DTR |
| | | |
| | í 10 | Modem disconnects on low DTR; Auto-Answer |
| | | is disabled. |
| | 11 | |
| | | Modem is initialized on low DTR |
|------+-------+---------------------------------------------|
| 5 | 0 | DCD forced high |
| | | |
| | í 1 | DCD normal |
|------+-------+---------------------------------------------|
| 6 | í 0 | DSR forced high |
| | | |
| | 1 | DSR normal |
|------+-------+---------------------------------------------|
| 7 | í 0 | Long space disconnect function disabled |
| | | |
| | 1 | Long space disconnect function enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S22 |
|------------------------------------------------------------|
| Format | AT [cmds] S22=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 117 |
|--------------+---------------------------------------------|
| Range: | 0-127 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume and controls, and |
| | limits results codes. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 1, 0 | 00 | Volume off |
| | | |
| | í 01 | Low level volume |
| | | |
| | 10 | Medium level volume |
| | | |
| | 11 | High level volume |
|------+-------+---------------------------------------------|
| 3, 2 | 00 | Speaker off |
| | | |
| | í 01 | Speaker off on carrier |
| | | |
| | 10 | Speaker always on |
| | | |
| | 11 | Speaker on during handshake |
|------+-------+---------------------------------------------|
| 6 - | 000 | Basic result codes only enabled |
| 4 | | |
| | 100 | Basic and connection speed result codes |
| | | enabled |
| | 101 | |
| | | Basic and connection speed result codes and |
| | 110 | dialtone detection enabled |
| | | |
| | í 111 | All result codes except dialtone detection |
| | | enabled |
| | | |
| | | All result codes enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S23 |
|------------------------------------------------------------|
| Format | AT [cmds] S23=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 61 |
|--------------+---------------------------------------------|
| Range: | 0-189 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Grants/denies remote digital loopback, |
| | controls DTE rate and parity, and sets |
| | guard tone. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | Remote digital loopback denied |
| | | |
| | í 1 | Remote digital loopback allowed |
|------+-------+---------------------------------------------|
| 3 - | 000 | Sets serial port speed to 0-300bps |
| 1 | | |
| | 001 | Sets serial port speed to 600bps |
| | | |
| | 010 | Sets serial port speed to 1200bps |
| | | |
| | 011 | Sets serial port speed to 2400bps |
| | | |
| | 100 | Sets serial port speed to 4800bps |
| | | |
| | 101 | Sets serial port speed to 9600bps |
| | | |
| | í 110 | Sets serial port speed to 19200bps |
|------+-------+---------------------------------------------|
| 5, 4 | 00 | Parity even |
| | | |
| | 01 | Not used |
| | | |
| | 10 | Parity odd |
| | | |
| | í 11 | No Parity |
|------+-------+---------------------------------------------|
| 6 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 7 | í 0 | Guard tone disabled |
| | | |
| | 1 | Guard tone disabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S27 |
|------------------------------------------------------------|
| Format | AT [cmds] S27=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 73 |
|--------------+---------------------------------------------|
| Range: | 0-111 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects synchronous/asynchronous mode, line |
| | type, clock source, and ITU-T/Bell modes. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 3, | 000 | Asynchronous mode, serial port speed |
| 1, 0 | | follows connect speed |
| | 001 | |
| | | Asynchronous off-line command mode and |
| | 010 | synchronous connect mode |
| | | |
| | 011 | Asynchronous off-line command mode; modem |
| | | auto-dials first number in directory, then |
| | 100 | synchronous connect mode |
| | | |
| | í 101 | Asynchronous off-line command mode on low |
| | | DTR, synchronous connect mode on high DTR |
| | 111 | |
| | | Not used |
| | | |
| | | Error correction mode |
| | | |
| | | Buffered asynchronous mode |
|------+-------+---------------------------------------------|
| 2 | í 0 | Switched line |
| | | |
| | 1 | Leased line |
|------+-------+---------------------------------------------|
| 5, 4 | í 00 | Local modem generates transmit clock source |
| | | |
| | 01 | Local DTE generates transmit clock source |
| | | |
| | 10 | Remote DCE/DTE generates transmit clock |
| | | source |
|------+-------+---------------------------------------------|
| 6 | í 0 | ITU/T mode |
| | | |
| | 1 | Bell mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S28 |
|------------------------------------------------------------|
| Format | AT [cmds] S28=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-24 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls pulse dialing. |
|--------------+---------------------------------------------|
| Note: | AT&P returns ‘OK’ if valid, S28=0 should be |
| | set at all times. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 2 - | í 000 | Not used |
| 0 | | |
|------+-------+---------------------------------------------|
| 4, 3 | í 00 | 39ms make/61ms break at 10pps |
| | | |
| | 01 | 33ms make/67ms break at 10pps |
| | | |
| | 10 | 39ms make/61ms break at 20pps |
| | | |
| | 11 | 33ms make/67ms break at 20pps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S31 |
|------------------------------------------------------------|
| Format: | AT [cmds] S31=n [cmds] |
|----------------+-------------------------------------------|
| Default: | 194 |
|----------------+-------------------------------------------|
| Range: | 0-10 |
|----------------+-------------------------------------------|
| Description: | Select automode and extended result code |
| | format. |
|------------------------------------------------------------|
| Bit | Value | Function |
|-----------+-------+----------------------------------------|
| 0 | í 0 | Not used |
|-----------+-------+----------------------------------------|
| 1 | 0 | Auto-mode detection disabled |
| | | |
| | í 1 | In originate mode, handshake begins at |
| | | line speed designated by the S37 |
| | | register. Modem can shift to a slower |
| | | speed if necessary. |
| | | |
| | | In answer mode, handshake attempted |
| | | with the following protocols in order |
| | | - V.FC, V.32bis, V.32, V.22bis, V.22 |
| | | or Bell 212, V.21, and Bell 103 |
|-----------+-------+----------------------------------------|
| 3, 2 | í 00 | Enables CONNECT result codes to report |
| | | DTE speed |
| | 01 | |
| | | Full reporting of CONNECT result codes |
| | 10 | |
| | | Enables CONNECT result codes to report |
| | | DCE speed |
|-----------+-------+----------------------------------------|
| 7 - 4 | í | Not used |
| | 1100 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S40 |
|------------------------------------------------------------|
| Format | AT [cmds] S40=n [cmds] |
|-----------------+------------------------------------------|
| Default: | 105 |
|-----------------+------------------------------------------|
| Range: | 0-233 |
|-----------------+------------------------------------------|
| Unit: | Bit-mapped |
|-----------------+------------------------------------------|
| Description: | Controls break handling, and block size. |
|-----------------+------------------------------------------|
| Bit | Value | Function |
|---------+-------+------------------------------------------|
| 2 - 0 | í 001 | Not used |
|---------+-------+------------------------------------------|
| 5, 4, 3 | 000 | \K0 |
| | | |
| | 001 | \K1 |
| | | |
| | 010 | \K2 |
| | | |
| | 011 | \K3 |
| | | |
| | 100 | \K4 |
| | | |
| | í 101 | \K5 |
|---------+-------+------------------------------------------|
| 7, 6 | 00 | MNP block size is 64 characters |
| | | |
| | í 01 | MNP block size is 128 characters |
| | | |
| | 10 | MNP block size is 192 characters |
| | | |
| | 11 | MNP block size is 256 characters |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S41 |
|------------------------------------------------------------|
| Format | AT [cmds] S41=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 3 |
|--------------+---------------------------------------------|
| Range: | 0-91 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects compression, auto-retrain and |
| | auto-fallback/fall-forward, flow control, |
| | and MNP mode. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 1 - | 00 | Data compression disabled |
| 0 | | |
| | 01 | MNP5 enabled |
| | | |
| | 10 | V.42bis enabled |
| | | |
| | í 11 | MNP5 and V.42bis enabled |
|------+-------+---------------------------------------------|
| 6, 2 | í 00 | Auto-retrain disabled |
| | | |
| | 01 | Auto-retrain enabled |
| | | |
| | 10 | Auto-fallback/fall-forward enabled |
|------+-------+---------------------------------------------|
| 3 | í 0 | Flow control disabled |
| | | |
| | 1 | Flow control enabled |
|------+-------+---------------------------------------------|
| 4 | í 0 | Stream mode for MNP |
| | | |
| | 1 | Block mode for MNP |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK SEND |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Bn [cmds] |
|--------------+---------------------------------------------|
| Default: | 3 |
|--------------+---------------------------------------------|
| Range: | 1-9 |
|--------------+---------------------------------------------|
| Unit: | .1 second |
|--------------+---------------------------------------------|
| Description: | Sends break to modem |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|---------------------+--------------------------------------|
| Format: | AT [cmds] \Kn [cmds] |
|---------------------+--------------------------------------|
| Description: | Configures action of break signal |
|------------------------------------------------------------|
| Command | Break from | Modem receives | Break received |
| | DTE | \B | from remote |
| | | | modem |
|-----------+--------------+----------------+----------------|
| \K0 | Online | Break sent to | Buffers |
| | command mode | remote modem | cleared, break |
| | enabled, | and buffers | sent to DTE |
| | send no | cleared | |
| | break to | | |
| | remote modem | | |
|-----------+--------------+----------------+----------------|
| \K1 | Break sent | Break sent to | Buffers |
| | to remote | remote modem | cleared, break |
| | modem and | and buffers | sent to DTE |
| | buffers | cleared | |
| | cleared | | |
|-----------+--------------+----------------+----------------|
| \K2 | Online | Send break to | Break sent |
| | command mode | remote modem | immediately to |
| | enabled, | immediately | DTE |
| | send no | | |
| | break to | | |
| | remote modem | | |
|-----------+--------------+----------------+----------------|
| \K3 | Send break | Send break to | Break sent |
| | to remote | remote modem | immediately to |
| | modem | immediately | DTE |
| | immediately | | |
|-----------+--------------+----------------+----------------|
| \K4 | Online | Send break | Break sent |
| | command mode | with | with received |
| | enabled, | transmitted | data to the |
| | send no | data | DTE |
| | break to | | |
| | remote modem | | |
|-----------+--------------+----------------+----------------|
| í \K5 | Send break | Send break | Break sent |
| | with | with | with received |
| | transmitted | transmitted | data to the |
| | data | data | DTE |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPRESSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Cn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects data compression |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %C0 | Data compression disabled |
|--------------+---------------------------------------------|
| %C1 | MNP5 enabled |
|--------------+---------------------------------------------|
| %C2 | V.42bis enabled |
|--------------+---------------------------------------------|
| í %C3 | MNP5 and V.42bis enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the type of connection the modem |
| | will operate in |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \N0 | Normal mode enabled |
|--------------+---------------------------------------------|
| \N1 | Direct mode enabled |
|--------------+---------------------------------------------|
| \N2 | Reliable mode enabled |
|--------------+---------------------------------------------|
| \N3 | Auto-reliable mode enabled |
|--------------+---------------------------------------------|
| \N4 | V.42 reliable mode enabled |
|--------------+---------------------------------------------|
| \N5 | MNP reliable mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
|--------------+---------------------------------------------|
| Note: | Any combination of modifiers can be used to |
| | produce the desired dial functions in |
| | sequence. |
|--------------+---------------------------------------------|
| Modifier | Function |
|--------------+---------------------------------------------|
| J | Link will be negotiated at highest possible |
| | speed |
|--------------+---------------------------------------------|
| L | Re-dial last number |
|--------------+---------------------------------------------|
| P | Pulse dialing enabled |
|--------------+---------------------------------------------|
| R | Accepted but not acted upon |
|--------------+---------------------------------------------|
| S=n | Dial stored telephone number n |
|--------------+---------------------------------------------|
| T | Tone dialing enabled |
|--------------+---------------------------------------------|
| W | Dialing resumed following dial tone |
| | detection |
|--------------+---------------------------------------------|
| ! | Modem commanded to go off-hook for |
| | specified time before returning on-hook. |
|--------------+---------------------------------------------|
| @ | Wait for quiet answer |
|--------------+---------------------------------------------|
| , | Dialing paused for amount of time specified |
| | in S8 register |
|--------------+---------------------------------------------|
| ; | Modem returned to command state after |
| | dialing |
|--------------+---------------------------------------------|
| ^ | Enable calling tone |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLASH DIAL MODIFIER TIME |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S29=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | .01 second |
|--------------+---------------------------------------------|
| Description: | Time the modem will go on-hook upon |
| | receiving the ! dial modifier in dial |
| | string. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem port flow control |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \G0 | Flow control disabled |
|--------------+---------------------------------------------|
| \G1 | Flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Read-only Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S39? [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays the current flow control |
|--------------+---------------------------------------------|
| Value | Meaning |
|--------------+---------------------------------------------|
| 0 | Flow control disabled |
|--------------+---------------------------------------------|
| í 3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| 4 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| 5 | Transparent XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| 6 | Both RTS/CTS and XON/XOFF flow control |
| | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XOFF |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S33=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 19 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XOFF |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XON |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S32=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 17 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XON |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INACTIVITY TIMER |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S30=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | 10 seconds |
|--------------+---------------------------------------------|
| Description: | Maximum duration of DTE and DCE inactivity |
| | allowed prior to initiating hang-up |
| | process. S30=0 will disable timer. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL LEVEL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %L [cmds] |
|--------------+---------------------------------------------|
| Description: | Returns a value which indicates the |
| | received line signal level (-dBm) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL QUALITY |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Q [cmds] |
|--------------+---------------------------------------------|
| Description: | Returns a value which indicates line signal |
| | quality |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MAXIMUM BLOCK SIZE FOR TRANSMISSION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \An [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum transmittable block size |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \A0 | MNP block size is 64 characters |
|--------------+---------------------------------------------|
| í \A1 | MNP block size is 128 characters |
|--------------+---------------------------------------------|
| \A2 | MNP block size is 192 characters |
|--------------+---------------------------------------------|
| \A3 | MNP block size is 256 characters |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MNP - STREAM/BLOCK MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Ln [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the transfer mode for MNP link |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \L0 | Stream mode for MNP enabled |
|--------------+---------------------------------------------|
| \L1 | Block mode for MNP enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports product code |
|--------------+---------------------------------------------|
| I1 | Reports ROM checksum |
|--------------+---------------------------------------------|
| I2 | Tests and compares ROM checksum, reports |
| | ‘OK’. |
|--------------+---------------------------------------------|
| I3 | Reports modem model and firmware revision |
|--------------+---------------------------------------------|
| I4 | Reports modem identifier string |
|--------------+---------------------------------------------|
| I5 | Reports country code |
|--------------+---------------------------------------------|
| I6 | Reports modem series identifier string |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S16=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-125 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls loopback tests: analog, digital, |
| | remote digital, and self tests. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | Local analog loopback not in progress |
| | | |
| | 1 | Local analog loopback in progress |
|------+-------+---------------------------------------------|
| 1 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | í 0 | Local digital loopback not in progress |
| | | |
| | 1 | Local digital loopback in progress |
|------+-------+---------------------------------------------|
| 3 | í 0 | Modem not in remote digital loopback |
| | | |
| | 1 | Remote digital loopback in progress |
|------+-------+---------------------------------------------|
| 4 | í 0 | Remote digital loopback not requested |
| | | |
| | 1 | Remote digital loopback requested |
|------+-------+---------------------------------------------|
| 5 | í 0 | Remote digital loopback w/ self-test not in |
| | | progress |
| | 1 | |
| | | Remote digital loopback w/ self-test in |
| | | progress |
|------+-------+---------------------------------------------|
| 6 | í 0 | Local analog loopback w/ self-test not in |
| | | progress |
| | 1 | |
| | | Local analog loopback w/ self-test in |
| | | progress |
+------------------------------------------------------------+
